Powerwalker VI-1500RT HID(PS), 1500VA/1350W, Pure Sine Line Interactive UPS, Rackmount, 8xIEC C13 (10120023)
Κωδικός Cableworks: 1197.059

BrandPOWERWALKER MPN10120023

€554.90

χωρίς ΦΠΑ €447.50

Μη Διαθέσιμο

Ειδοποίηση όταν το προϊόν είναι ξανά διαθέσιμο

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 390 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Model: VI 1500 RT HID
SKU: 10120023

Premium Line-Interactive Solution
These UPS complies with Energy Star requirements.

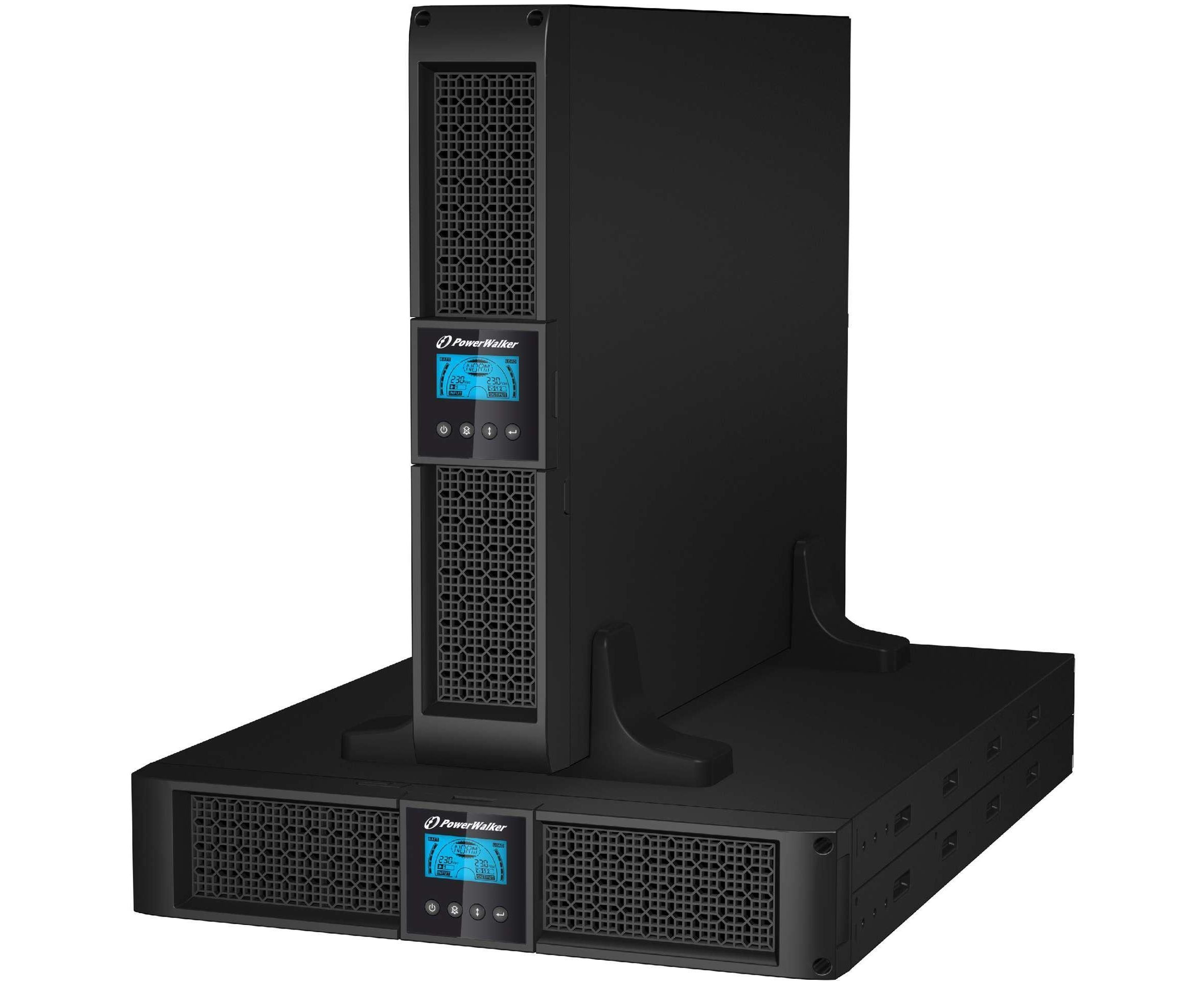

Rack/Tower 2U Design with rotatable LCD Direction
Pure Sinewave Output with Output Power Factor 0.9
It has an Optimized Battery Management (OBM) – for longer Battery Life
It includes an Intelligent Slot for communication cards
It has a Programmable Segment
The RS-232 Port includes fixed Dry Contacts – for further automation
LCD Backlight changes with Status-change (Blue or Red)

The PowerWalker VI RT HID is by far the most advanced Line-Interactive UPS with Pure Sine Wave output. It was designed to fulfill the high power quality demand in IT-environment while keeping the Line-Interactive topology.

The VI RT HID offers full protection for devices such as servers, network/telephone communication systems and small industrial applications. Due to its 2U design and adjustable LCD, the UPS can be installed inside any regular 19” rack cabinet or used as tower system (Tower Holder included).

The UPS is available in 2 different Variations:

RT: Premium Line-Interactive Solution

ERT: Compact Line-Interactive Solution

General Features
Type	Line-Interactive (VI)
Phases (IN-OUT)	1-1
Form Factor	Rack, Tower
Rack Units [U]	2U
Power Capacity	1500VA / 1350W
Output Power Factor	0.90
Input
Input Voltage Range	Acceptable Voltage Range: 0-300VAC Line Low Transfer (Wide Mode): 154/161/168VAC ± 4% Line Low Transfer: 176/184/192VAC ± 4% Line Low Comeback: 186/194/202VAC ± 4% Line High Transfer: 264/276/288VAC ± 4% Line High Comeback: 254/266/278VAC ± 4%
Frequency Range	45Hz – 65Hz (self-adaptive to 50/60Hz); 40Hz – 65Hz for generator mode
Output
Waveform	Pure Sine Wave
VA	1500
Load Crest Ratio	3:1
Nominal Output Voltage	220/230/240 VAC
Frequency (Battery Mode)	±0.1Hz
Output Power Factor	0.90

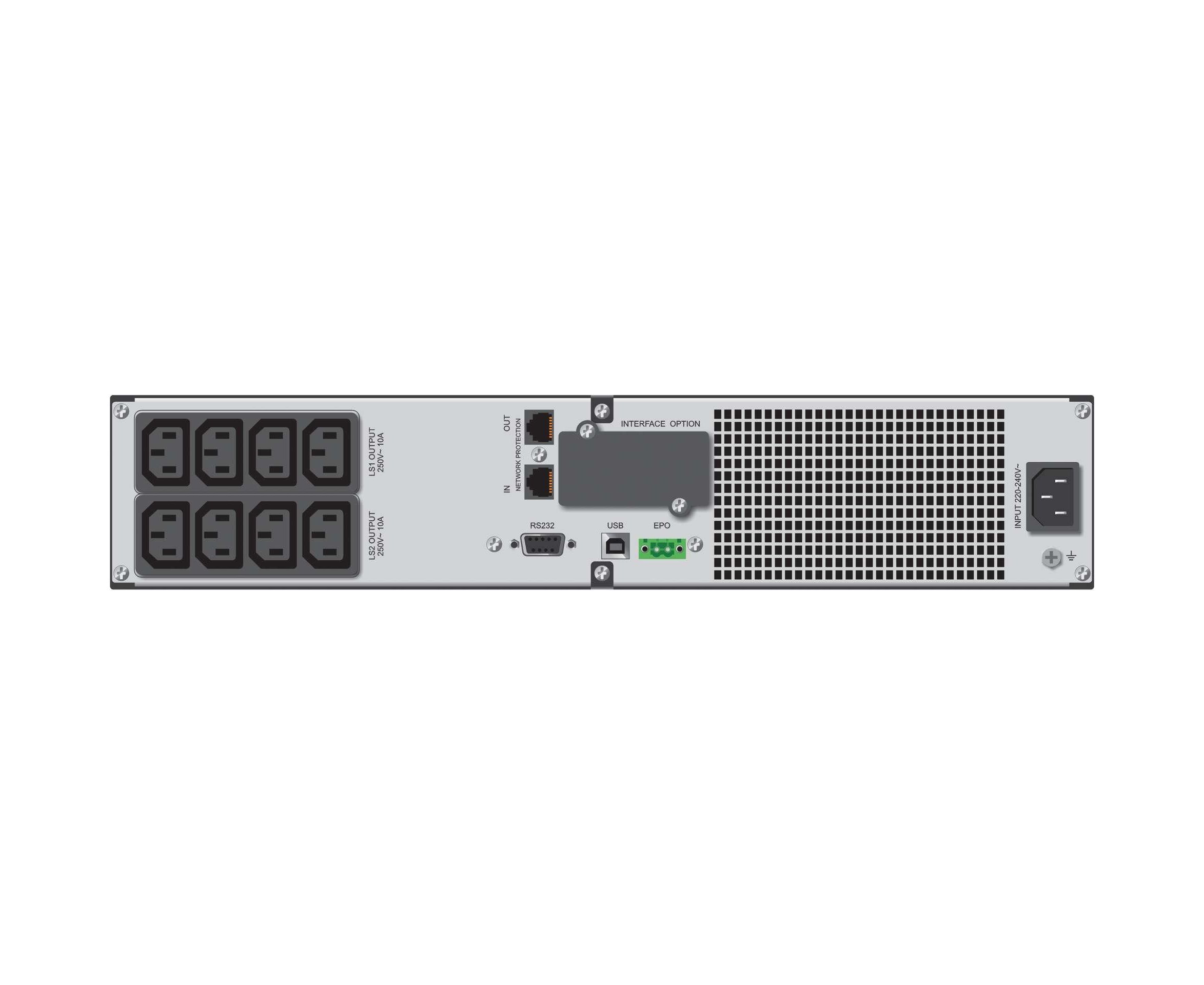

Input & Output Connectors
Input Connector	C14
IEC C13	8
Technical Details
LINE Mode Efficiency [%] (Full Load)	97.8
Battery Mode Efficiency [%] (Full Load)	88.2
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]	2-6ms typical
Transfer Time (AC / Line Mode to Battery Mode) [ms]	2-6ms typical (10ms max \| 13ms for Generator Mode)
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]	<10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	2-6ms typical
Load Crest Ratio	3:1
Data Line Protection	RJ-11 Port, RJ-45 Port (100mbit)
Additional Features	Potential Equalization Screw, OBM – Optimized Battery Management, Fixed Dry Contacts Included (RS-232), LCD Display, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, Programmable Segment Available, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VI-SS-311
Batteries and Autonomy
Batteries	3x 12.0V/9.0Ah
DC Voltage	3x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	3.0
Half Load Backup Time [min]	7.0
Charger	1.5A
External Battery Pack	Anderson PP45 x2
Recharge Time	4h to 90%
Communication
Communication	Management Card Slot, USB Type B – for Monitoring Software, RS-232
Software	WinPower
Management and Environment
Software	WinPower
Communication	Management Card Slot, USB Type B – for Monitoring Software, RS-232
Noise Level	< 45dB
Fan Logic	Fan Off: Line/ Standby Mode and Load below 80% Always On, Automatic Fan Control (AVR On, Battery Mode and Battery Charging)
Temperature	0°C – 40°C
Humidity	20% – 80% RH (non-condensing)
IP	IP 20
