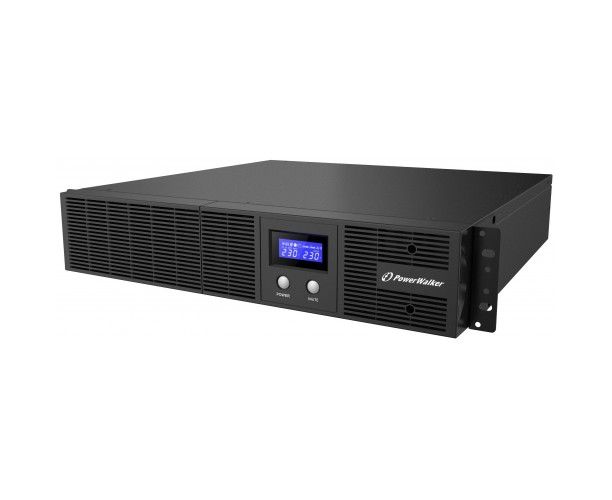

Powerwalker VI-2200RLE(PS), 2200VA/1320W, Line Interactive UPS, Rackmount, 4xIEC C13 (10121100)
Κωδικός Cableworks: 1197.027

BrandPOWERWALKER MPNVI 2200 RLE(PS)

€421.33

χωρίς ΦΠΑ €339.78

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 411 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Automatic Voltage Regulator with Pure Sine Wave output
USB with Human Interface Device (HID) support
It includes an Intelligent Slot for communication cards
Auto-Dimming LCD (UPS is woken up with mute button)
Low Own Power Consumption in Normal Mode – Energy Saving Function

The PowerWalker VI RLE is a compact 2U Line-Interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software.

Improved internal heat dissipation makes sure the UPS runs silently during standard operation. A comprehensive LCD provides all the necessary information and will auto-dimm after a few seconds. These features make the UPS series an attractive solution for home use as well.

General Features
Type	Line-Interactive (VI)
Phases (IN-OUT)	1-1
Form Factor	Rack
Rack Units [U]	2U
Power Capacity	2200VA / 1320W
Output Power Factor	0.60
Input
Input Voltage Range	165-290 VAC
Frequency Range	45Hz – 65Hz
Output
Waveform	Pure Sine Wave
VA	2200
Nominal Output Voltage	230 VAC
THDv	≤3% @ 100% linear load, ≤5% @ 100% non-linear load
Frequency (Battery Mode)	±0.5Hz
Output Power Factor	0.60
Input & Output Connectors
Input Connector	C14
IEC C13	4
Technical Details
LINE Mode Efficiency [%] (Full Load)	98.0
Battery Mode Efficiency [%] (Full Load)	80.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	4ms typical
Data Line Protection	RJ-11 Port, RJ-45 Port (100mbit)
Additional Features	LCD Display, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Energy Saving Function
Batteries and Autonomy
Batteries	2x 12.0V/9.0Ah
DC Voltage	2x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	1.1
Half Load Backup Time [min]	7.1
Charger	1A
Recharge Time	4h to 90%
Communication
Communication	USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software	PowerMaster
Management and Environment
Software	PowerMaster
Communication	USB Type B – for Monitoring Software, RS-232, Management Card Slot
Noise Level	< 50dB
Fan Logic	Fan Off: Line Mode Fan On: Battery Mode, AVR ON, Battery Charging
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
IP	IP 20
