3DR 500mW Radio Telemetry 433Mhz - Air and Ground Data Transmit Module for APM Pixhawk Flight Control FPV
Κωδικός Cableworks: 1256.269

BrandOEM MPNOEM

€111.60

χωρίς ΦΠΑ €90.00

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Descriptions:

- The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios. It's available in 433Mhz; and in the following configurations: serial board (for the air) and USB (for the ground).
- The radio is a 2-way half-duplex wireless communication system with a standard TTL UART interface, based on HopeRF\'s HM-TRP data link modules, and custom firmware that improves upon the modules\' original features and performance.
- The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and radio firmware with configurable parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through AT commands.

Specification:
Item Name: 3DR Radio Telemetry Module
Band: 433MHz
Antenna connectors: RP-SMA connector
Transmit power: 500mw
Interface: Standard TTL UART
Connection status: LED indicators
Net weight: 63g
RadioTelemetry Air Module Dimension: 51*30*10mm/12g
RadioTelemetry Ground Module Dimension: 70*25*12mm/15g

- Very small size
- Light weight (under 4 grams without antenna)
- 433-434.79MHz
- Receiver sensitivity to -118 dBm
- Transparent serial link
- Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM

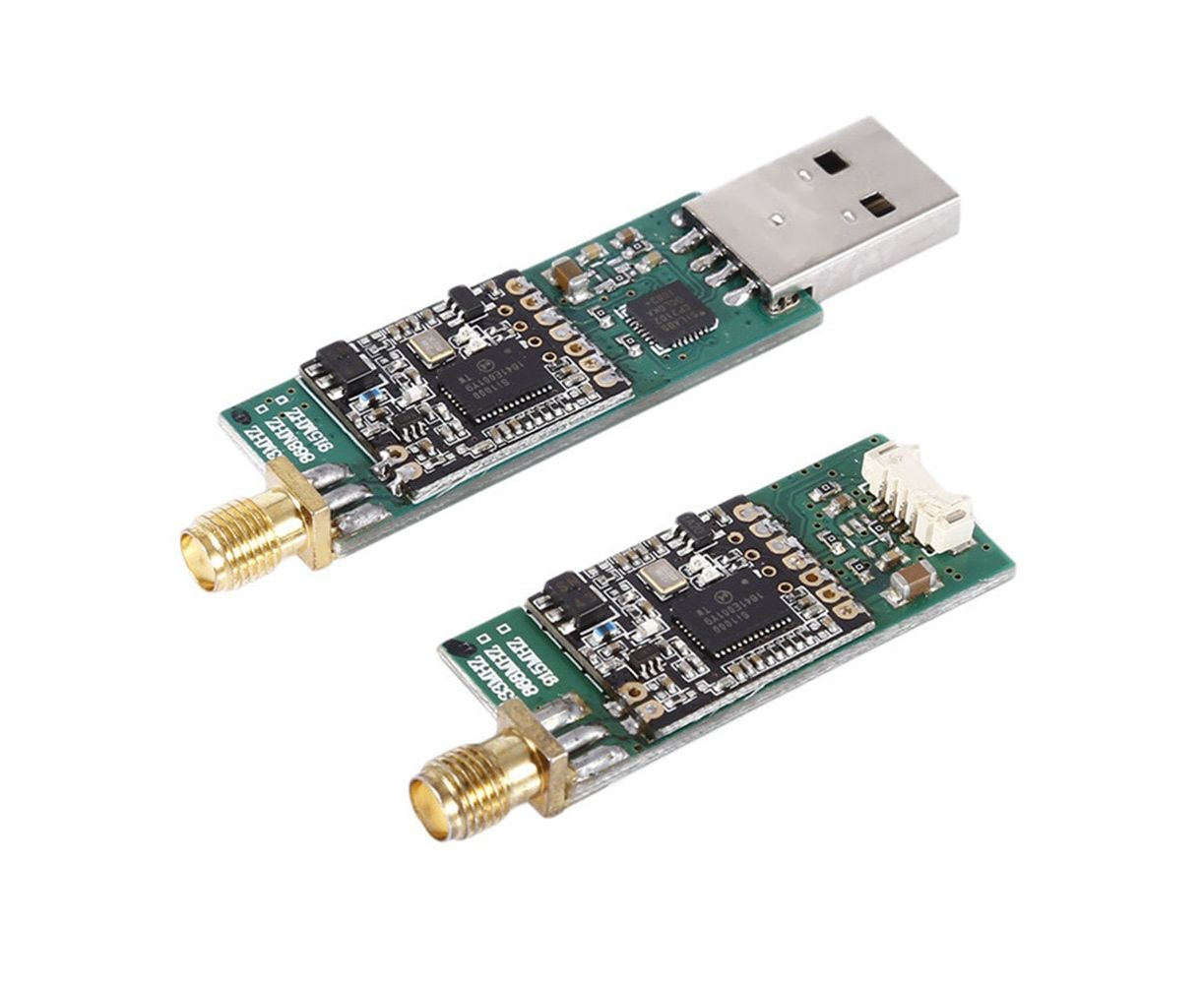

- Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module
This new upgrade telemetry transmitter could conncet to android cellphone through OTG cable directly!This is a very usefull feature.

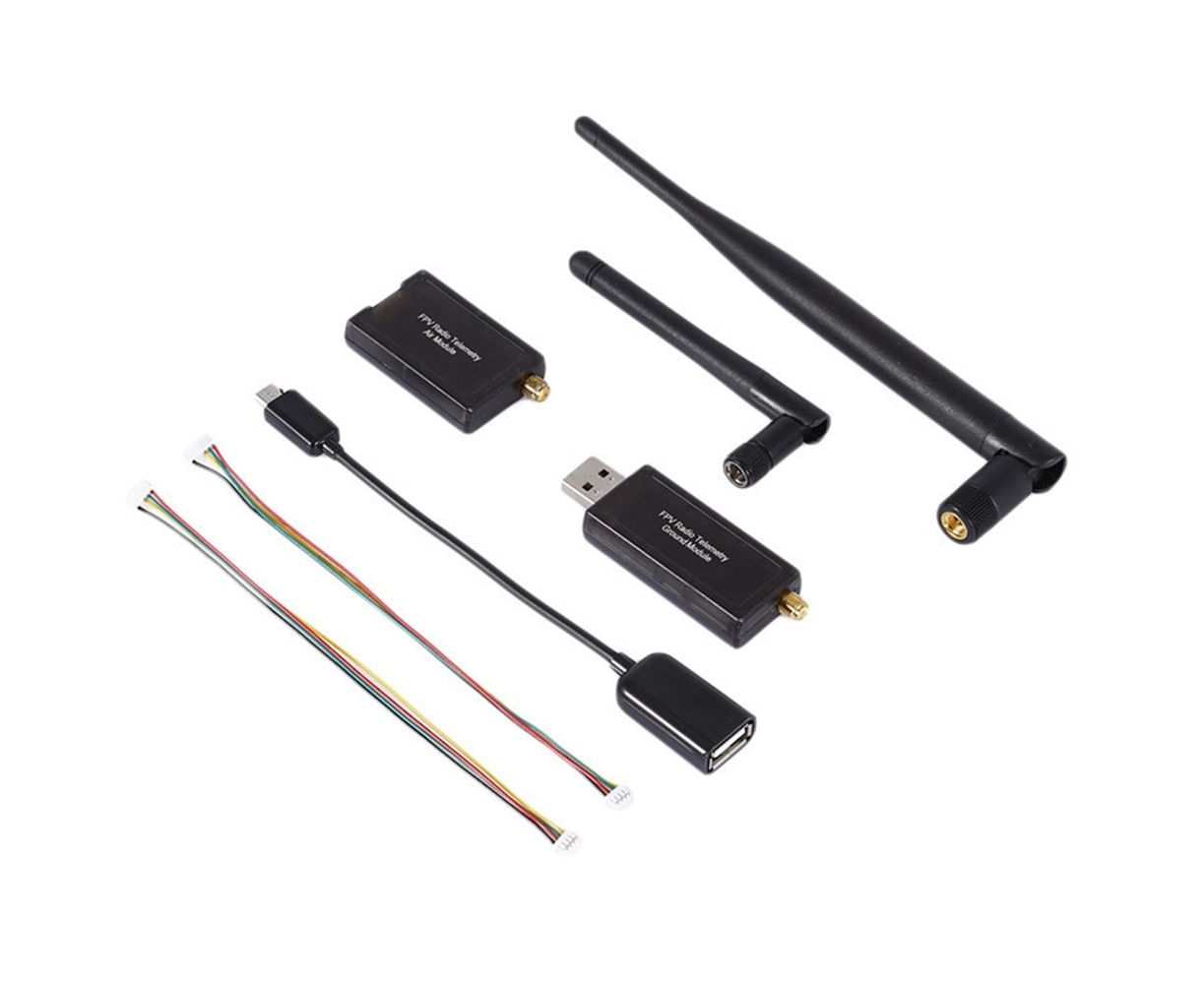

Package Included:

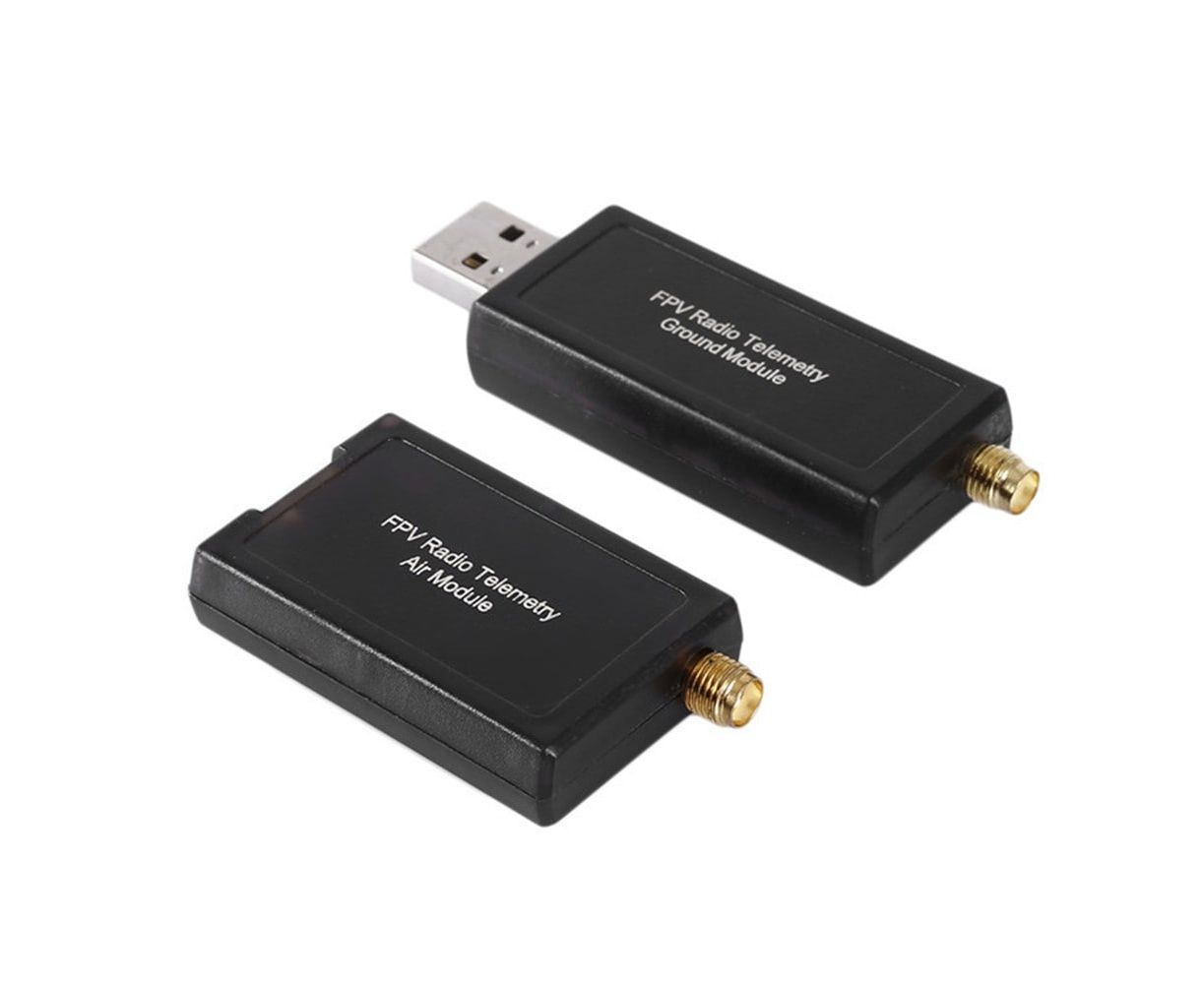

1 X FPV Radio Telemetry Air Module
1 X FPV Radio Telemetry Ground Module
2 X Connecting Lines
2 X Round Bar Antennas

1 x OTG Cable
