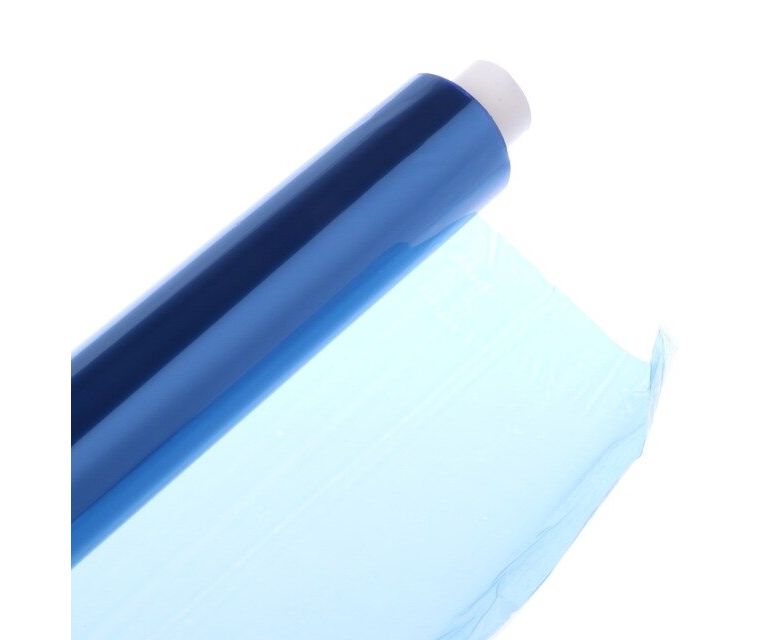

PCB Photosensitive Dry Film For Circuit Photoresist 30cm x 5M
Κωδικός Cableworks: 1215.254

BrandOEM MPNOEM
10.42
χωρίς ΦΠΑ 8.40
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Features:

  • Photographic film, also known as dry film, is used to make PCB board, stick it on top of the PCB, it will become a sensitive circuit board.
  • Suitable for plating, hole covering,and the etching process.
  • Excellent ability to cover holes
  • High Resolution
  • Excellent adhesion to almost all surfaces
  • Image clarity after exposure
  • Front-panel is very clean after developed

How to use it :
1. Clean your board. Cut dry film a little larger than your board.
2. Apply Resist: This Photoresist has 3 layers, the top and bottom layers are clear protective layer, so at the first, you need remove one protective layer, the easy way is to use two small pieces of scotch tape. Then apply the middle layer on board.
3. Expose: Place your negative artwork over the rest protective layer.
4. Develop: Remember: you need NEGATIVE film developer, Remove the rest protective layer on the film. After 3 minutes take board out of developer and hold under running water to check,you can always place it back in the developer if needs more time.
