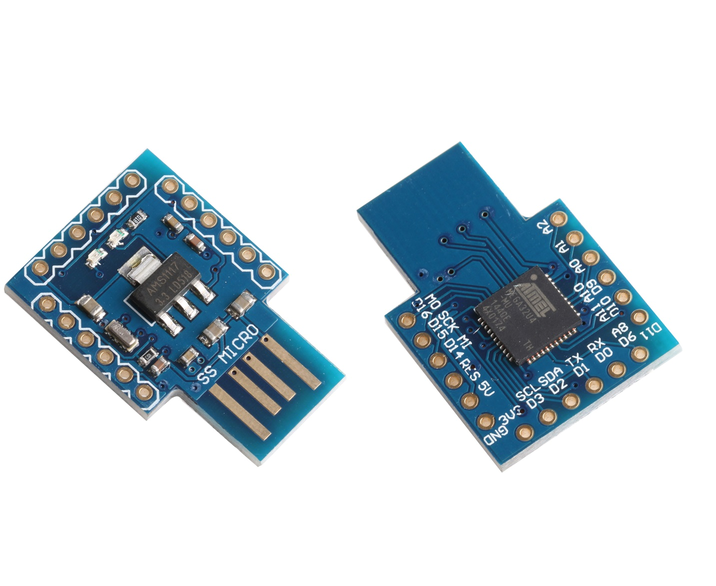

Mini SS Arduino Micro - 16Mhz ATMEGA32U4
Κωδικός Cableworks: 1140.345

BrandOEM MPNOEM

€45.88

χωρίς ΦΠΑ €37.00

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Micro SS is a microcontroller board based on ATmeag32U4. it has 14 digital general purpose input / output pins (of which 5 may be used as PWM outputs, 6 may be used as analog inputs).On board for 16 MHz oscillator and a USB-A type of PCB-based connector. in addition to an independent power supply to 3.3 V output, its output power without affecting the operation of the MCU, the output power depends on the USB power capability but no greater than the maximum 1.5A.It is compatible with the Arduino IDE.
Although it is small but it has a rich interface such that it is not only the traditional functions of the controller, as well as implemented in a computer mouse, keyboard functions, series of functions, and can communicate directly with the computer.

Master: ATmega32u4
Operating voltage: 5 V
Digital IO Number: 14
PWM output number: 5
Number of analog input: 6
Other peripherals: USB, UART, I2C, SPI, 3.3 V Power supply output
IO driving force: 40mA
Flash: 32KB (ATmega32u4) where 4KB occupied by Ard uino bootloader
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1KB (ATmega32u4)
Frequency: 16 Mhz
