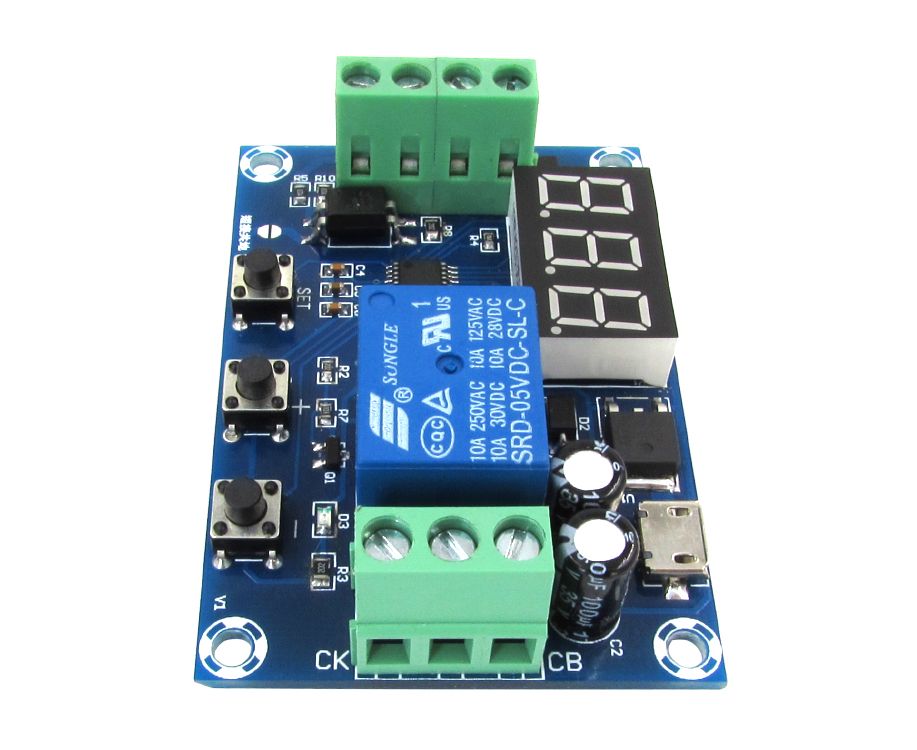

Trigger Cycle Timer Delay Module (XH-M610)
Κωδικός Cableworks: 1215.497

BrandOEM MPNOEM

€16.79

χωρίς ΦΠΑ €13.54

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

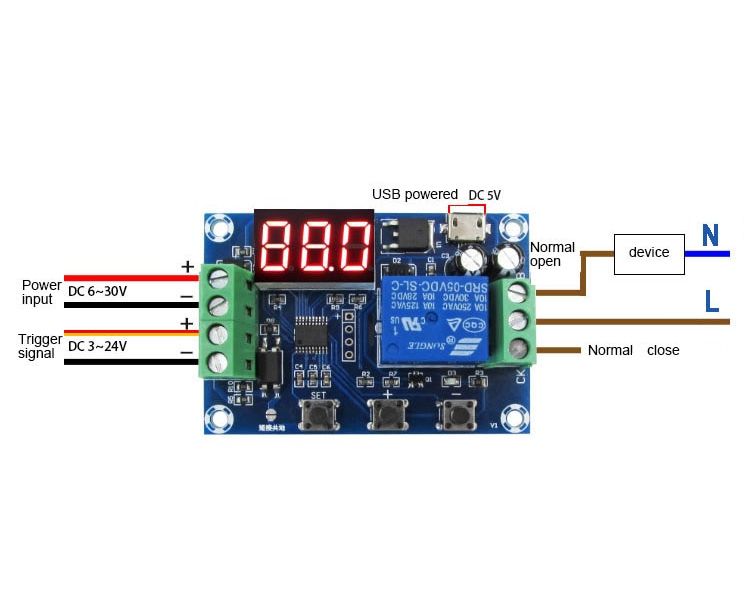

Supply voltage: DC6 ~ 30V USB 5V
Signal source: DC 3 ~ 24V positive trigger button PLC
Timing range: 1 second -999 minutes continuously adjustable
Life: more than 100,000 times
Control Type: Output Switch
Timing groups: 5 groups (5 groups of independent working mode)
Appearance size: 65 * 45 * 17mm
Net weight: 32g

The SET key is to set mode. "+" key increase value, "-" key decrease value.
Parameter setting table

code	Digital display	Description	Setting range (method)	Factory setting
TM		time unit	0/second 1/minute	0
RU		Work mode	0/1/2/3/4	0
DE		Relay switching off time	0~999	5
CL		Relay switching on time	0~999/- - -	10
LP		Loop execution	1~999/- - -	1

Operation instruction:

Restore ex-factory setting: When the power is on, hold the + and - key for 3 seconds to restore ex-factory setting.

1.RU=0 If the signal is triggered once, it'll be executed once. If the signal is triggered continuously, it'll be executed indefinitely.
Trigger signal, DE decreases display in 1S cycle (relay is off), the indicator light does not light. DE decreases to 0, CL decreases display with 1S period (relay closed), and the indicator light is on. CL is reduced to 0, the relay is turned off, and 0000 is displayed.

2. The RU=1 signal is triggered once, once, and the signal is triggered, and DE is still.
Trigger signal, DE decreases display in 1S cycle (relay is off), the indicator light does not light. DE decreases to 0, CL decreases display with 1S period (relay closed), and the indicator light is on. CL is reduced to 0, the relay is disconnected, 0000 is displayed, the trigger signal is unchanged, and DE will remain the same value.

3.RU=2 The signal is triggered, and it is executed countless times. The DE time detects the trigger signal again, and the infinite loop stops after the cycle setting number ends.
Trigger signal, DE decreases display in 1S cycle (relay is off), the indicator light does not light. DE decreases to 0, CL decreases display with 1S period (relay closed), and the indicator light is on. CL is reduced to 0, then DE is reduced by 1S cycle, infinite loop, signal is detected again, cycle stops

4.RU=3 Power-on trigger, execute the set number of times, DE time detects that the trigger signal has no effect again, and stops after the cycle setting number ends.
Power on displays 000. If there is no trigger signal, the display 000 remains unchanged. When the trigger signal is detected, DE decreases the display in 1S cycle (the relay is disconnected) and the indicator light does not illuminate. DE decreases to 0, CL decreases display with 1S period (relay closed), and the indicator light is on. CL is reduced to 0, then DE is reduced by 1 S cycle and the cycle is repeated.

5.RU=4 The signal is held, the counting starts, then the signal is disconnected, and it is executed once. The DE time detects the trigger signal again, and the DE re-decreasing the display.

The trigger signal is held, the timing is incremented, and both decimal points are illuminated. When the signal is off, DE decreases the display by 1S cycle (the decrease value starts from the DE setting value instead of the timed value). The trigger signal is detected again during the timing, and DE will be decremented from the set value. The count signal is re-counted, the relay is turned off, and the indicator light is off. DE decreases to 0, CL decreases display with 1S period (relay closed), and the indicator light is on. CL is reduced to 0, the relay is open, and 000 is displayed.
