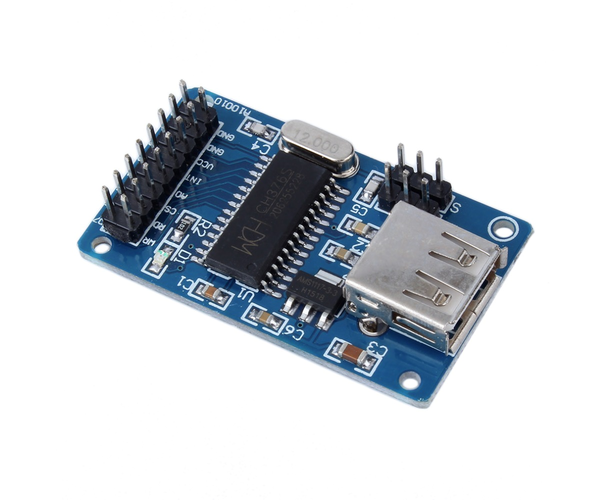

CH376S USB Read/Write Module - USB Transfer for Arduino
Κωδικός Cableworks: 1116.479

BrandOEM MPNOEM
6.94
χωρίς ΦΠΑ 5.60
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CH376 is common a USB bus interface chip, with 8 bit data bus and reading, writing and chip select lines and interrupt output, can easily attached to the system bus of the single chip microcomputer /DSP/MCU/MPU controller. In the USB host mode, CH376 also provides a serial communication mode, through the serial input, serial output and interrupt output connected with the MCU /DSP/MCU/MPU.



Features:

  • 2x8 connection head, can be convenient to hang with MCU
  • According to the jumper option, which can work in parallel or serial mode
  • USB status indicator light
  • Plate load LDO 3.3V 1117, to provide the maximum 800mA current
  • 5V power supply by the target board
  • 12MHZ crystal
  • Size:47*27mm
