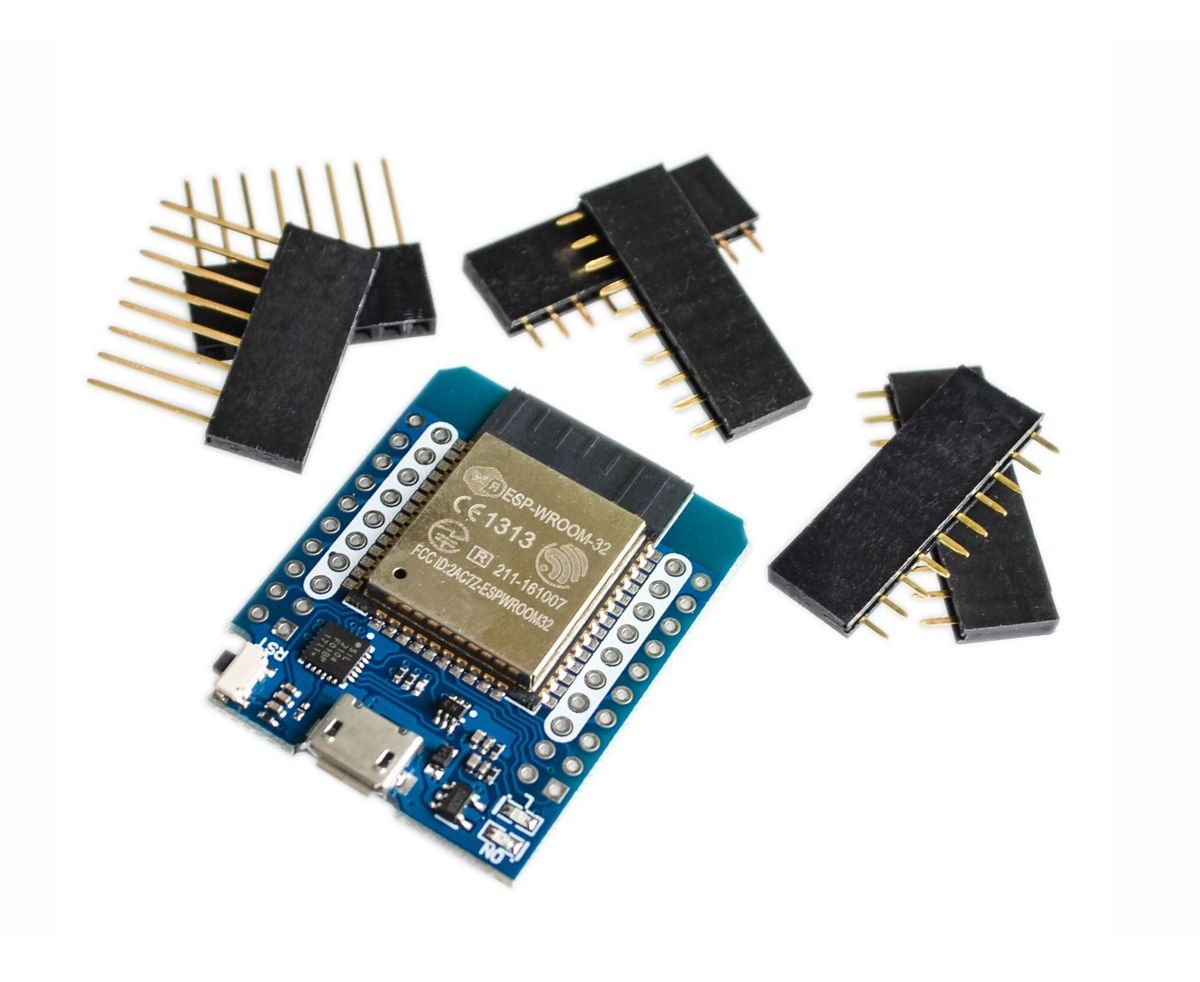

D1 mini ESP32 - WiFi+Bluetooth Internet Development Board (MH-ET MiniKit)
Κωδικός Cableworks: 1140.620

BrandOEM MPNOEM

€19.59

χωρίς ΦΠΑ €15.80

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

ESP-32S Wifi Bluetooth combo module is ultra high performance and ultra low-power consumption Wi-Fi and Bluetooth combo wireless platform based on ESPRESSIF ESP32 chipset. ESP-32S integrates dual-core processor, 448 KByte ROM,520 KByte SRAM,16 KByte SRAM in RTC, 802.11 b/g/n/e/I Wi-Fi, Bluetooth v4.2 BR/EDR & BLE, clocks & Times, abundant peripheral Interfaces and sercurity mechanism.

Key Feature:

Xtensa 32-bit LX6 Dua-core processor, up to 600 DMIPS.
448 KByte ROM
520 KByte SRAM
16 KByte SRAM in RTC.
QSPI can connect up to 4* Flash ／ SRAM, each flash should be less than 16 Mbytes.

Wifi:

802.11 b/g/n/e/i
802.11 n（2.4 GHz），up to 150 Mbps
802.11 e: QoS for wireless multimedia technology.
WMM-PS, UAPSD
MPDU and A-MSDU aggregation
Block ACK
Fragmentation and defragmentation
Automatic Beacon monitoring/scanning
802.11 i security features: pre-authentication and TSN
Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
Infrastructure BSS Station mode/SoftAP mode
Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
UMA compliant and certified
Antenna diversity and selection

Bluetooth:

Compliant with Bluetooth v4.2 BR/EDR and BLE specification
Class-1, class-2 and class-3 transmitter without external power amplifier
Enhanced power control
+10 dBm transmitting power
NZIF receiver with -98 dBm sensitivity
Adaptive Frequency Hopping (AFH)
Standard HCI based on SDIO/SPI/UART ? High speed UART HCI, up to 4 Mbps
BT 4.2 controller and host stack
Service Discover Protocol (SDP)
General Access Profile (GAP)
Security Manage Protocol (SMP)
Bluetooth Low Energy (BLE)
ATT/GATT
HID
All GATT-based profile supported
SPP-Like GATT-based profile
BLE Beacon
A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
CVSD and SBC for audio codec
Bluetooth Piconet and Scatternet

Clock and times

Internal 8 MHz oscillator with calibration
Internal RC oscillator with calibration
External 2 MHz to 40 MHz crystal oscillator
External 32 kHz crystal oscillator for RTC with calibration
Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group ? RTC timer with sub-second accuracy
RTC watchdog

Prepheral Interface:

12-bit SAR ADC up to 18 channels
2 × 8-bit D/A converters
10 × touch sensors
Temperature sensor
4 × SPI，2 × I2S，2 × I2C，3 × UART
1 host (SD/eMMC/SDIO)，1 slave (SDIO/SPI)
Ethernet MAC interface with dedicated DMA and IEEE 1588 support
CAN 2.0
IR (TX/RX)
Motor PWM，LED PWM up to 16 channels
Hall sensor
Ultra low power analog pre-amplifier

Security

IEEE 802.11 standard security features all supported, including WFA, WPA/WPA2 and WAPI
Secure boot
Flash encryption
1024-bit OTP, up to 768-bit for customers
Cryptographic hardware acceleration: – AES – HASH (SHA-2) library – RSA – ECC – Random Number Generator (RNG)
SDK Firmware for fast on-line programming
Open source toolchains based on GCC

Application
