STM8S103F3P6 Development Board STM8S STM8 - Minimum Core STM Microcontroller
Κωδικός Cableworks: 1256.272

BrandOEM MPNOEM

€3.35

χωρίς ΦΠΑ €2.70

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

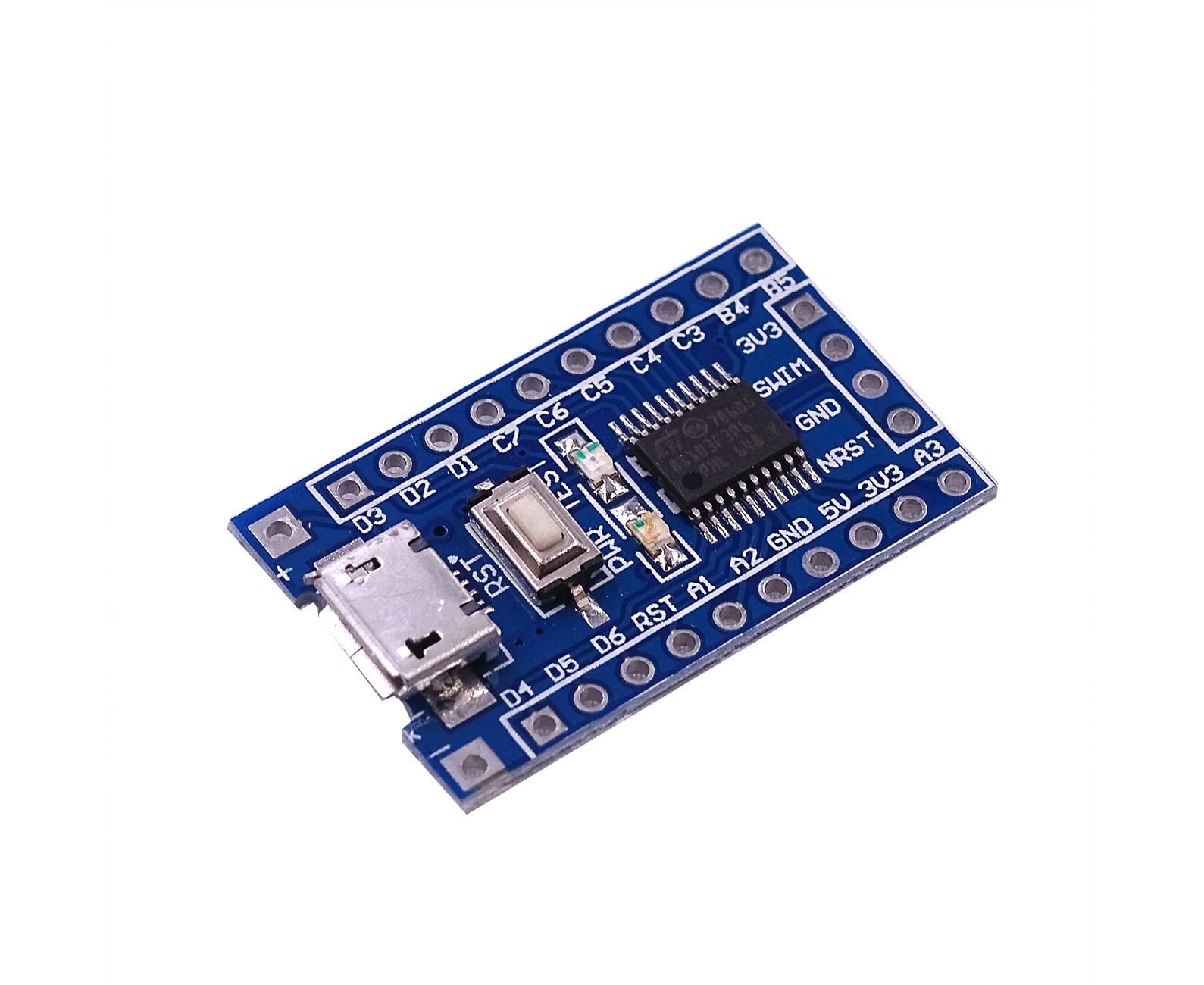

This STM8S003F3P6 development board is a minimal breakout board for the STM8 micro-controller. All of the I/O pins are marked and routed to standard 2.54 mm pins for convenient use.

SPECIFICATIONS:

On-board STM8S003F3P6 chip
On-board SWIM connector for programming
On-board reset switch
Reserved external crystal oscillator soldering place
AMS1117-3.3 voltage regulator for covering 5 V power supply to 3.3 V
Mini USB connector for powering the board
Board Size: 36.5 x 21.6 mm

QUICK LINKS:

WHAT IS STM8

It’s an inexpensive, 8-bit microcontroller manufactured by ST, which could replace the Arduino/ATMEGA in simple applications.

POWERING THE BOARD

On the backside, you can see an LT1117-3.3 in SOT223, which converts the input voltage from the RAW pins (the left corners) to 3.3 V. The board can also be powered via the USB connector, but the data lines are sadly not connected anywhere.

Both the input voltage and the regulated 3.3 V can be used for external circuits, they’re available on the bottom header. Confusingly, the “5V” pin is directly connected to the input, there’s no 5 V regulator. With USB connected, you’ll of course get something quite close to 5 V.

If you plan on driving something power-hungry from the 3.3 V output, keep in mind that there’s no heatsink on the regulator, so it could easily get hot if you use higher input voltage or overdo it with the current draw. For Neopixels and such, I recommend you connect them directly to the 5 V line (provided you’re powering the board from USB!)

There are two more ways to power the board, namely the pins in the bottom row, and the “3V3” pin in the programming header. It appears you can simply connect an external 3.3 V source to either of the “3V3” pins and it’ll work. I was worried the LDO might not like that, but it works just fine.

This means you can power it straight from the programmer, but be super careful with larger loads: There’s a really tiny regulator in the ST-Link dongle (pics below). Easy to fry.
