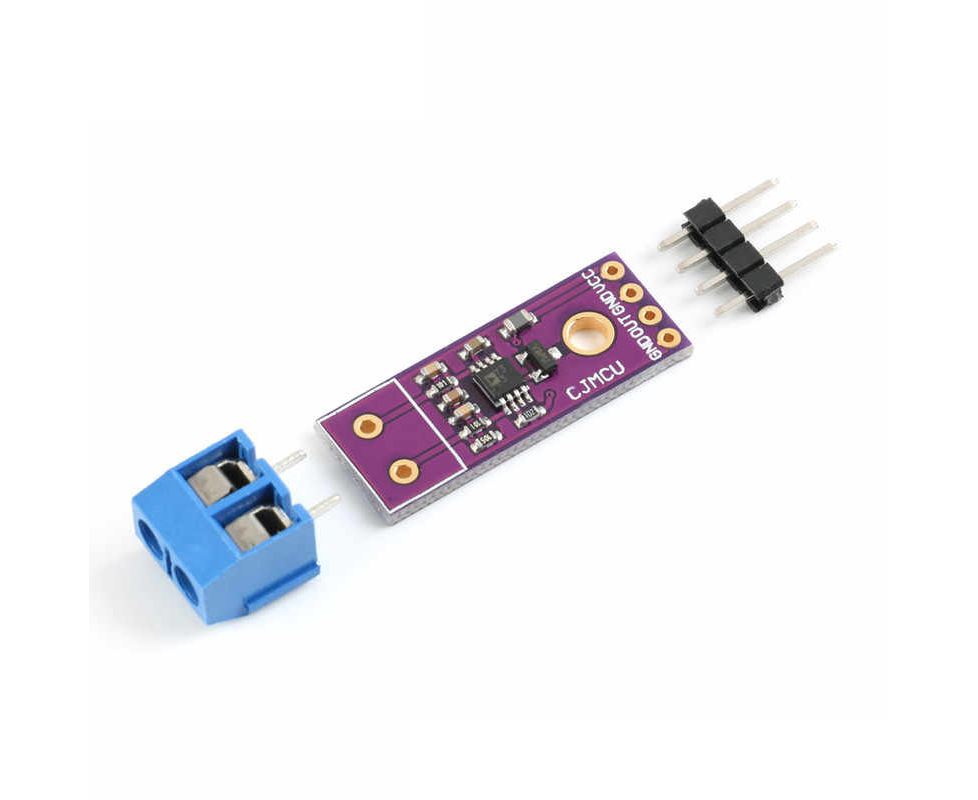

AD8495 ARMZ Precision Thermal Coupling K-Type Thermocouple Amplifier Module
Κωδικός Cableworks: 1256.278

BrandOEM MPNOEM

€16.79

χωρίς ΦΠΑ €13.54

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Για να σας λύνονται όλες οι τεχνικές απορίες

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

The thermocouple signal is very small and must be amplified by considerable gain before it can be properly sampled by most ADCs. The AD8495 thermocouple amplifier provides a simple, low-cost solution for thermocouple temperature measurement. The integrated temperature sensor performs cold junction compensation. The fixed gain instrumentation amplifier amplifies the small voltage of the thermocouple to provide a 5 mV/°C output.
The amplifier has high common-mode rejection and is capable of rejecting common-mode noise that may be picked up by long leads of thermocouples. For extra protection, the amplifier's high-impedance input allows for easy additional filtering.
The AD849x output is a voltage proportional to the thermocouple measurement junction temperature (TMJ). To derive the measured temperature from the AD849x output voltage, use the transfer function TMJ=(VOUT−VREF)/(5mV/°C), VOUT=(TMJ×5mV/°C)+VREF. The AD8495 and AD8497 (Type K) instrumentation amplifiers have a gain of 122.4. With a single 5V supply, the 5mV/°C output allows these devices to cover a thermocouple temperature range of nearly 1000 degrees.

Product Parameter

Reference pin provides offset adjustment
Thermocouple disconnection detection
Laser wafer adjustment to 1°C initial accuracy and 0.025°C/°C ambient temperature suppression
Low power consumption: <1 mW (VS = 5 V)
Rugged input withstands 4kVESD and provides overvoltage protection (OVP) up to VS±25V
Linearity error less than ±2°C, this error is only caused by the nonlinearity of the thermocouple

Pin Description
