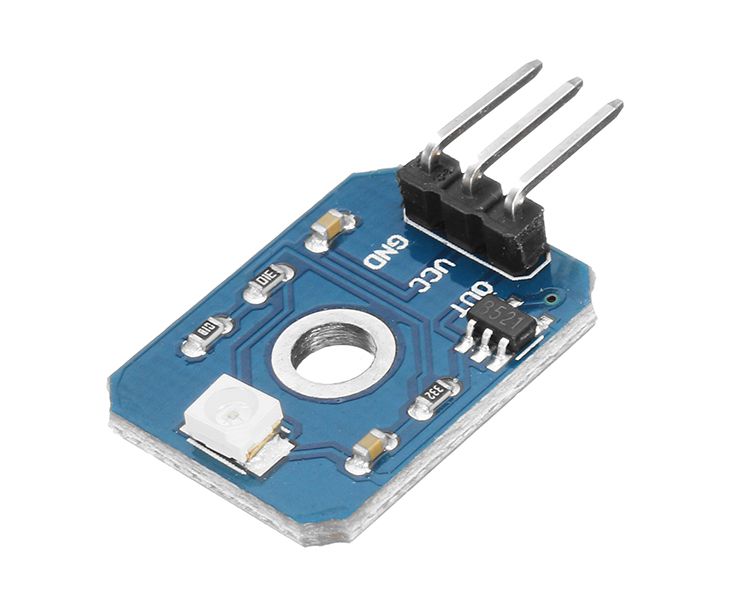

Ultraviolet UV Detection Sensor Module for Arduino UV Wavelegth 200-370NM
Κωδικός Cableworks: 1256.135

BrandOEM MPNOEM

€6.94

χωρίς ΦΠΑ €5.60

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Description:

1. Operating voltage: DC 3.3-5V

2. Output voltage: DC 0-1V

3. Test accuracy: ±1UV INDEX

4. Current: 0.06mA (typ), 0.1mA (max)

5. Response wavelength: 200nm-370nm
6. Response time: less than 0.5 seconds
7. Work temperature: -20℃ ~85℃

8. Detect UV wavelength: 200-370nm

9. Size: 19.80 x 15mm

Connection mode:

VCC- is the positive input port of power supply, access 3.3V-5V voltage
GND-GND is the negative input port of power supply
OUT-OUT is the output port of analog signal, connected to I / O port of MCU

Note: The player should set the I/O port of MCU as input mode / receive mode, otherwise it can not be used. Other MCU, or more advanced control panel such as Arm, which need to set the I/O port as the input and output mode, must be set to input mode / receive mode, otherwise it can not be used. 51 series SCM can be used directly, no need to set the input and output mode.

Overview:

Designed for applications where high reliability and accuracy of the UV index (UVI) are required;
Suitable for measuring the total amount of solar ultraviolet light intensity;
Contrast the World Health Organization UV Index grading standards
The detection wavelength of UV was 200-370nm;
Fast response, full interchangeability;

UV index chart:
