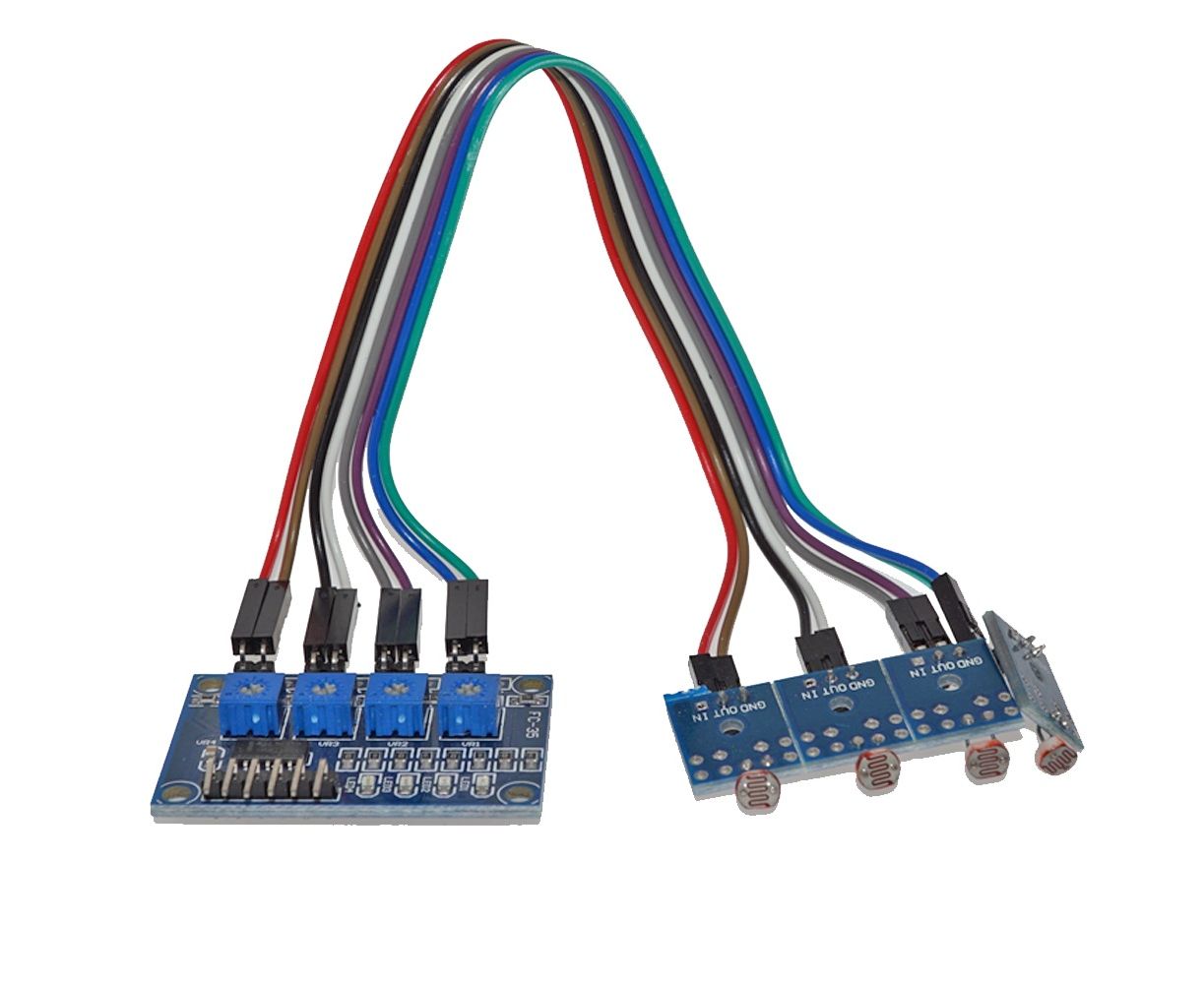

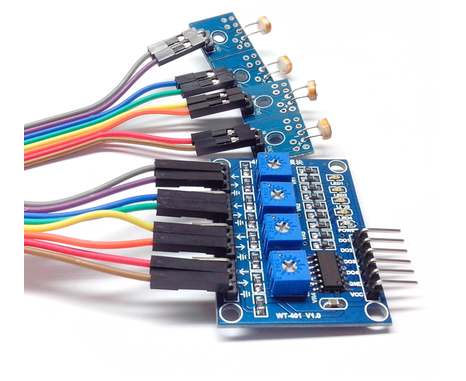

4-Channel PhotoSensistive Resistors Module for Arduino
Κωδικός Cableworks: 1116.792

BrandOEM MPNOEM

€4.71

χωρίς ΦΠΑ €3.80

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Overview

The sensitive type photosensitive resistance sensor
The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
With adjustable potentiometer can detect light brightness adjustment
The working voltage of 3.3 V to 5 V
The output form: DO digital switch output (0 and 1) and AO analog voltage output
Has a fixed bolt hole, convenient installation
Using the LM339 wide voltage comparator

Module instructions

The photosensitive resistance module's most sensitive to ambient light, generally used to detect the environment around the brightness of the light, or MCU trigger relay module, etc.
Module in the environment light intensity short of setting threshold, output high level DO end, when the environment light intensity more than set threshold, output DO low level;
The DO output can be attached directly to the single chip microcomputer, through single chip microcomputer to detect the high and low level, thus to detect the environment light intensity change
The DO output can be directly driven our relay module, which can form a light-operated switch.
Small plate analog output AO and AD module, through the AD conversion, can obtain more accurate values of environmental light
