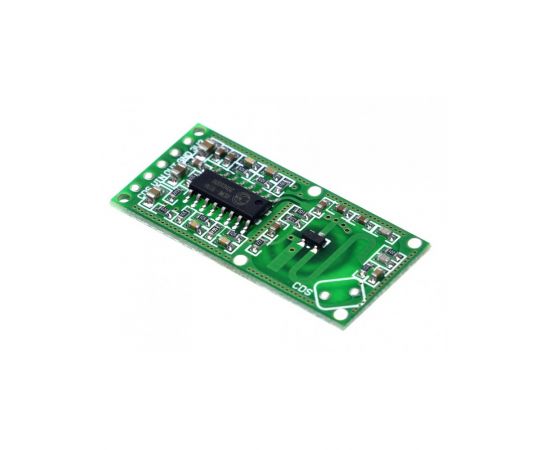

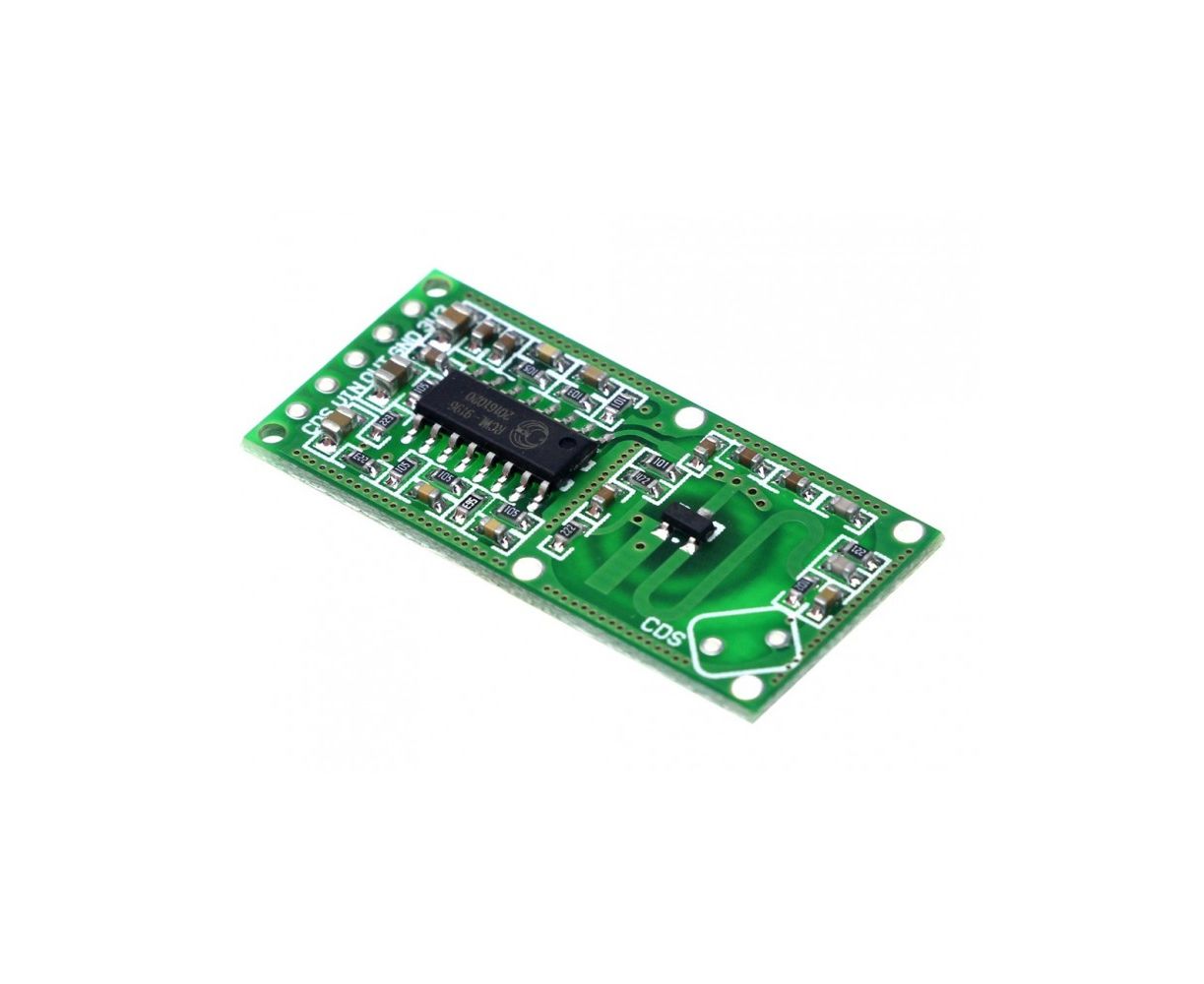

RCWL-0516 Microwave Radar Sensor Module for Arduino - Human Body Motion Detection
Κωδικός Cableworks: 1140.351

BrandOEM MPNOEM
2.23
χωρίς ΦΠΑ 1.80
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Features:

  • Transmission signal processing control chip RCWL-9196
  • Wide operating voltage range: 4.0-28.0V
  • Compared with the traditional infrared feeling PIR, with the penetrating detection capability
  • Block time, distance adjustable
  • Output 3.3V power supply

Application Design Note:

  • The sensing face in front of the gold without any shelter.
  • Front and rear sensing surface space to set aside more than 1CM
  • The module carrier plane and install as flat line
  • A certain application of effective detection area
  • The component side of the module is positive sensing face, the opposite is negative sensing surface. Negative sensing surface sensing less effective
  • Microwave modules can not be large-scale applications in the same area, otherwise there will be mutual interference. Between single individuals overdistance greater than 1M
