5-Channel Line Tracking Sensor Module for Arduino/Robots (BFD-1000)
Κωδικός Cableworks: 1116.866

BrandOEM MPNOEM

€13.43

χωρίς ΦΠΑ €10.83

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

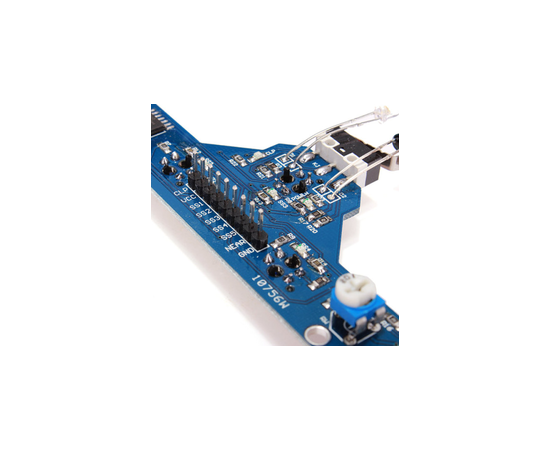

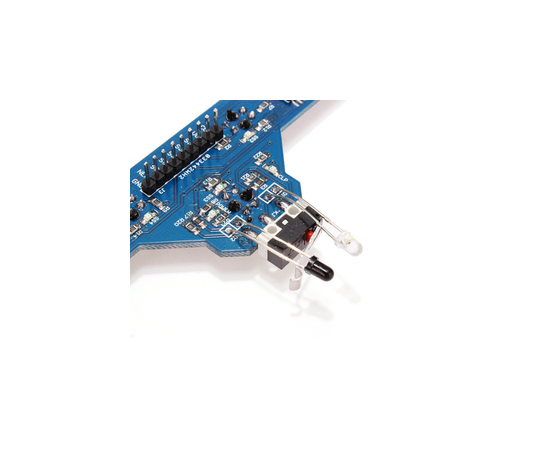

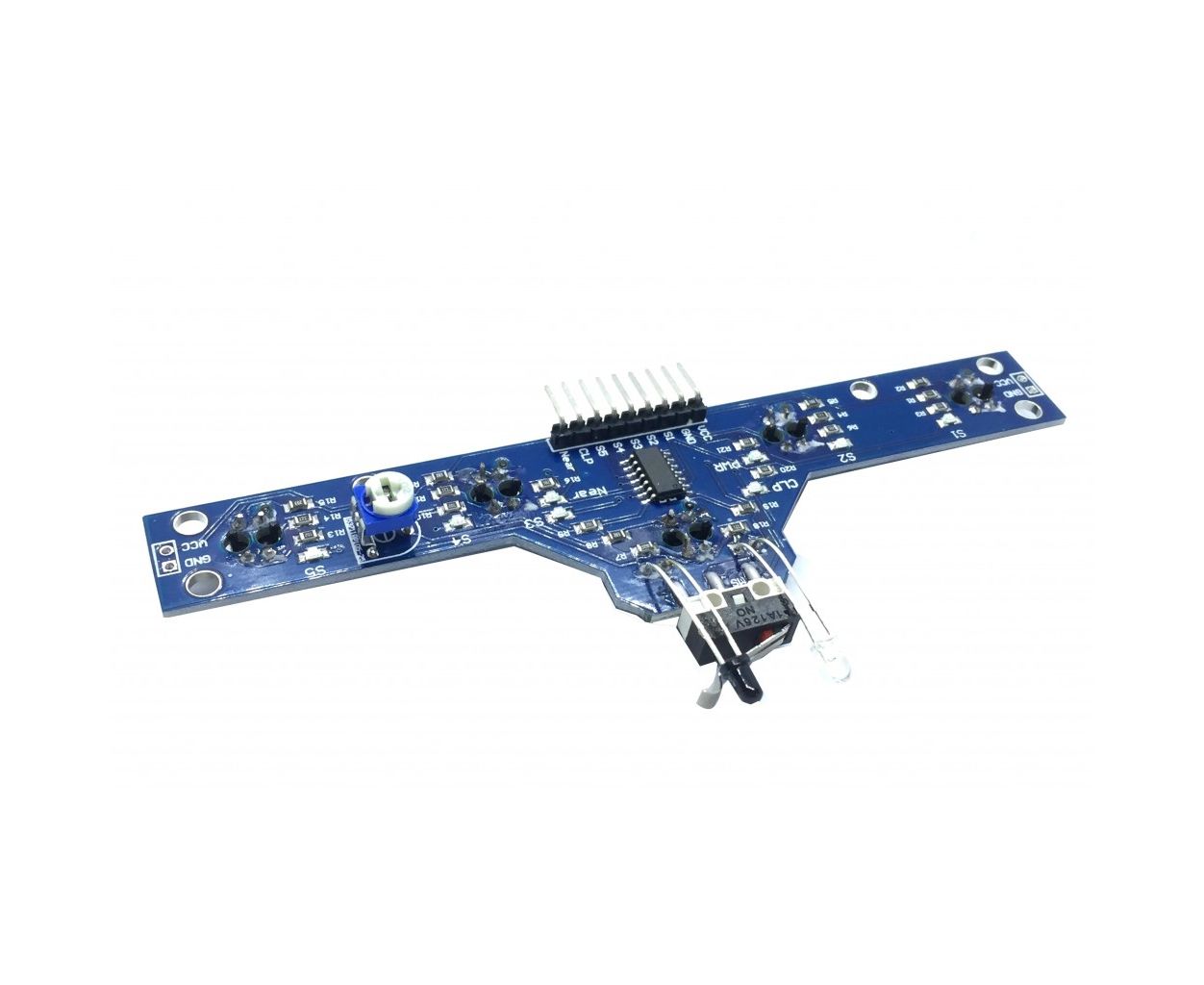

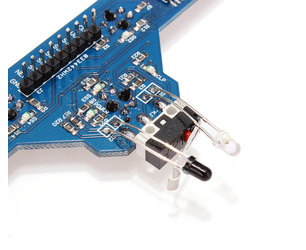

BFD-1000 specifically designed as black (white) Seek line, especially for complex black and white lines, black and white line crossing detection, it has a 6-channel high sensitivity infrared sensor (5-way transmission line, 1 shield barrier), able to accurately identify black and white lines, it has the following functions and features:

Integrated 5-way tracking sensor with high sensitivity for low environmental impact, able to accurately complex black line (white line) to track, for a simple black line line tracking more ease.
integrates a barrier infrared sensors, unblinded distance can be adjusted by sliding rheostat.
Has a specially designed touch detection sensor, making the design more simple from the robot.
All the output signal to a digital signal (high and low), convenient and microcontroller.
Has all the sensor output status LED light as indicator for easy debugging.
Supports voltage of 3.0-5.5v meet most system requirements.
With high sensitivity of the sensor, the tracking range is between 0.5mm-40mm without any need to make any adjustments change.

Technical parameters:
Detecting distance: 0-4cm (black line sensor) 0-5cm (adjustable distance detection)
Input voltage: 3.0-5.5V
Output Type: Digital output (high and low)
