Nextion NX3224T028 - HMI Generic 2.8" TFT Intelligent LCD Touch Display for Arduino
Κωδικός Cableworks: 1116.846

BrandItead MPNIM150416004

€59.52

χωρίς ΦΠΑ €48.00

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

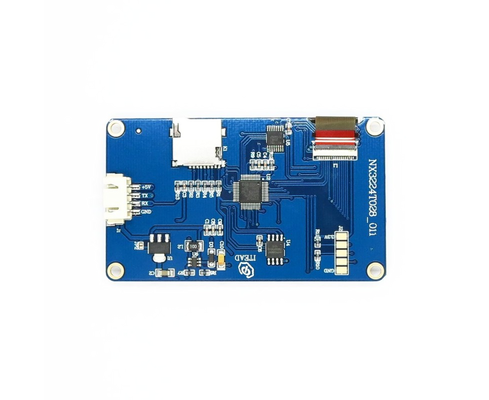

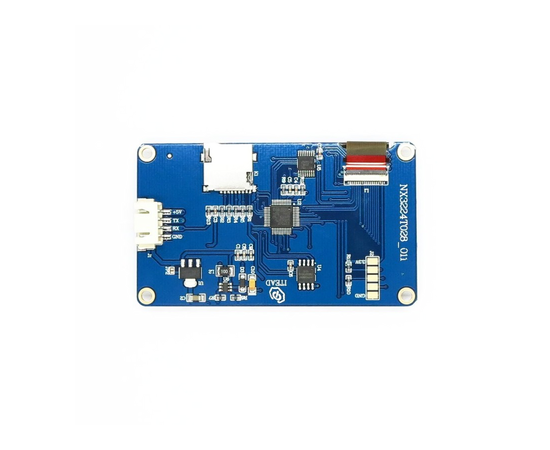

NX3224T028 is a powerful 2.8'' HMI, which is member of Nextion family. Features include: a 2.8" TFT 320x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Mini Tutorial

Features

320 x 240 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:57.6mm(L)×43.2mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
5V65mA power consumption
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
Powered directly off the Raspberry Pi, no external power supply is required
Generic using for all Arduino or Raspberry Pi project.
Nextion NX3224T028 - Itead

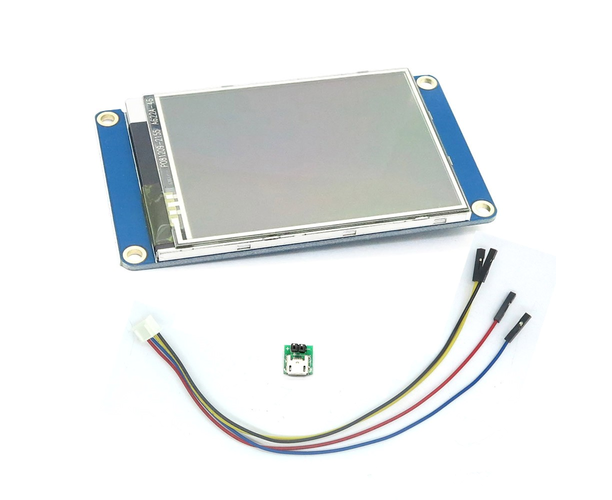

Package include: a Basic Nextion 2.8'' display, a wire, a power supply test board

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.

Discontinued	No
Link Wiki	No
Display Resolution	320 * 240
Display Interface	Serial
Screen Type	Touch Screen
Display Controller	No
TFT display interface	N/A
Display Size	2.8”
Board Size	85mm*49.8mm
Expand	SD Card Socket Touch Screen
Weight	71 g
