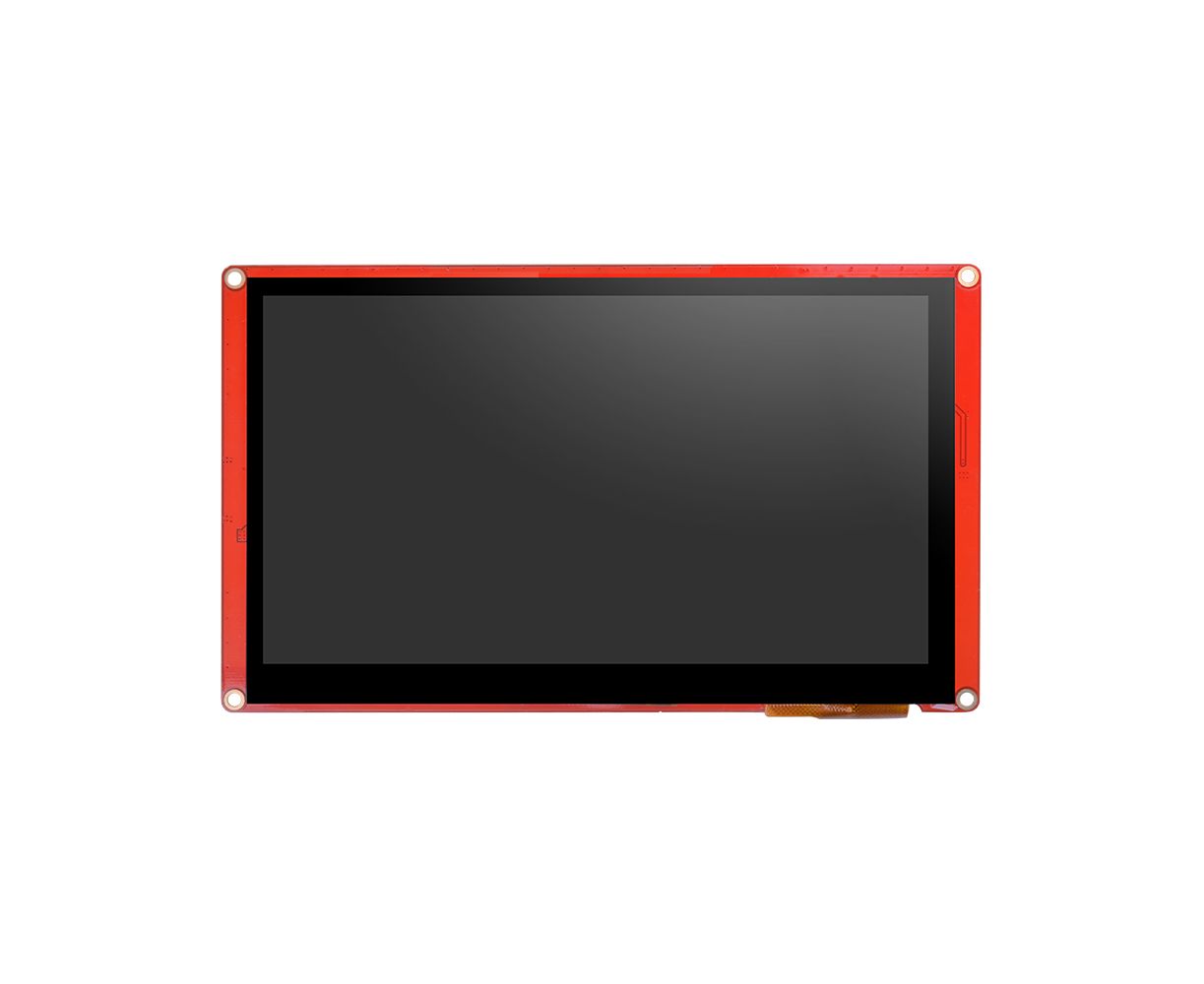

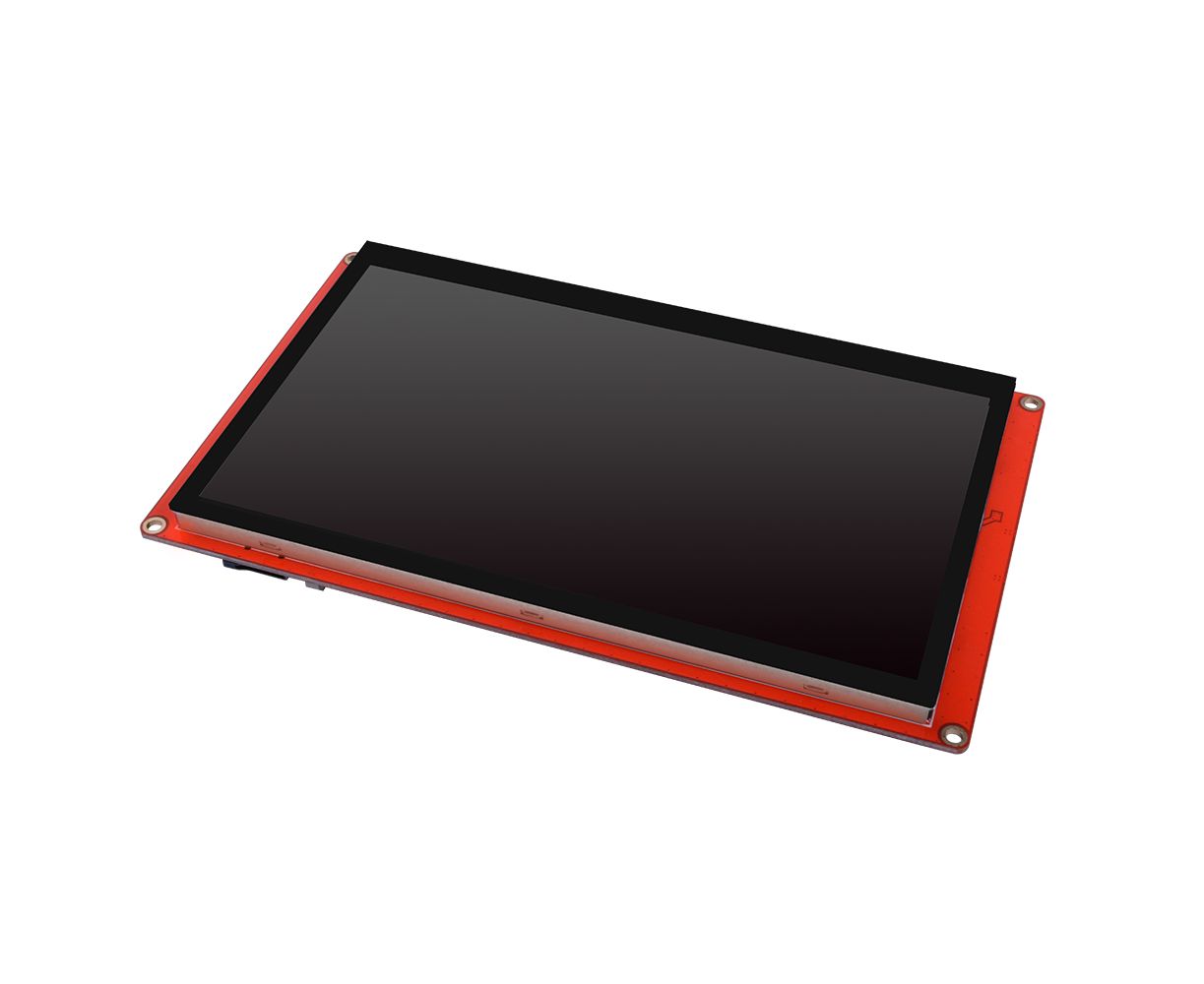

7.0'' Nextion NX8048P070-011C - Intelligent Series HMI Capacitive Touch Display
Κωδικός Cableworks: 1256.286

BrandItead MPNIM190402004

€204.30

χωρίς ΦΠΑ €164.76

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Software Features

Hardware Features

- NX8048P070-011C(7.0'' IPS RGB 65K capacitive touchscreen)
- Onboard MCU 200MHz and up to 128MB for HMI project
- Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
- 4 pins (+5V, TX, RX, GND) TTL serial interface
- 300 nit Brightness with 1% interval adjustment
- Audio interface
- CE and RoHS Compliant
- Model: NX8048P070-011C(HMI Capacitive Touch Display)

NX8048P070-011C

Overview

Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

Package includes: Nextion NX 8048P070-011C HMI Display*1, XH2.54 4P wire*1, power supply test board*1.
Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Nextion Models

Nextion Type	Intelligent Series
Nextion Models	NX8048P070-011C (7.0 inch capacitive touchscreen without enclosure)

Specifications

	Data	Description
Color	65K 65536 colors	16 bit 565, 5R-6G-5B
Layout size	181mm(L)×108mm(W)×9.3mm(H)	NX8048P070-011C
Active Area (A.A.)	164.90mm(L)×100.00mm(W)
Visual Area (V.A.)	154.08mm(L)×85.92mm(W)
Resolution	800×480 pixel	Also can be set as 480×800
Touch type	Capacitive
Touches	> 1 million
Backlight	LED
Backlight lifetime (Average)	>30,000 Hours
Brightness	300nit	0% to 100%, the interval of adjustment is 1%
Weight	310g

Electronic Characteristics

	Test Conditions	Min	Typical	Max	Unit
Operating Voltage		4.75	5	6.5	V
Operating Current	VCC=+5V, Brightness is 100%	–	430	–	mA
Operating Current	SLEEP Mode	–	170	–	mA
Power supply recommend：5V, 1.0A, DC

Working Environment & Reliability Parameter

	Test Conditions	Min	Typical	Max	Unit
Working Temperature	5V, Humidity 60%	-20	25	70	°C
Storage Temperature		-30	25	85	°C
Working Humidity	25°C	10%	60%	90%	RH

Interfaces Performance

	Test Conditions	Min	Typical	Max	Unit
Serial Port Baudrate	Standard	2400	9600	921600	bps
Output High Voltage (TXD)	IOH=1mA	3.0	5.0	Vin	V
Output Low Voltage(TXD)	IOL=-1mA		0.1	0.2	V
Input High Voltage(RXD)		3.0	5.0	Vin	V
Input Low Voltage(RXD)		-0.7	0.0	1.3	V
Serial Port Mode	3.3V/5.0V TTL
Serial Port	4Pin_2.54mm
USB interface	NO
SD card socket	Yes (FAT32 format), support maximum 32G Micro SD Card * microSD card socket is exclusively used to upgrade Nextion firmware /HMI design
Extended IO	8 Digital extended GPIO
	IO0-IO7 support input, output and component binding event
	IO6-IO7 support PWM
RTC	built-in RTC support (Battery type: CR1220)

Vin: the input voltage of power supply

Memory Features

Memory Type	Test Conditions	Min	Typical	Max	Unit
FLASH Memory	Store fonts and images			120	MB
User Storage	EEPROM			1024	BYTE
RAM Memory	Store variables			512	KB
Instruction Buffer	Instruction Buffer			1024	BYTE
