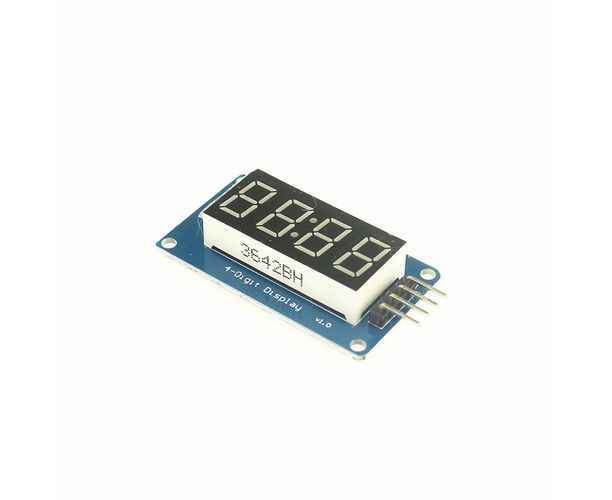

4-Bits LED Display TM1637 Module for Arduino
Κωδικός Cableworks: 1116.121

BrandOEM MPNoem
2.80
χωρίς ΦΠΑ 2.26
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

The module is a 12 foot with a clock point four common anode tube (0.36 in.) display module for driver IC TM1637, only two signal lines can make the MCU control 4 8 digital tube.

Module Features:
  • Display common anode for the four red LED
  • Digital tube 8 gray adjustable
  • Level control interface for 5V or 3.3V
  • 4 M2 screws positioning holes for easy installation
  • Size:42X24X12mm

Interface 4 digital display module: (the last picture show)
Control Interface : A total of four pins (GND, VCC, DIO, CLK), GND to ground , VCC is the power supply , DIO of data input and output pin , CLK is the clock signal pin ;
Digital tube: 4 common anode score points with 0.36 inches LED, red highlights ;
Positioning holes : 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install , to achieve inter- module combination
