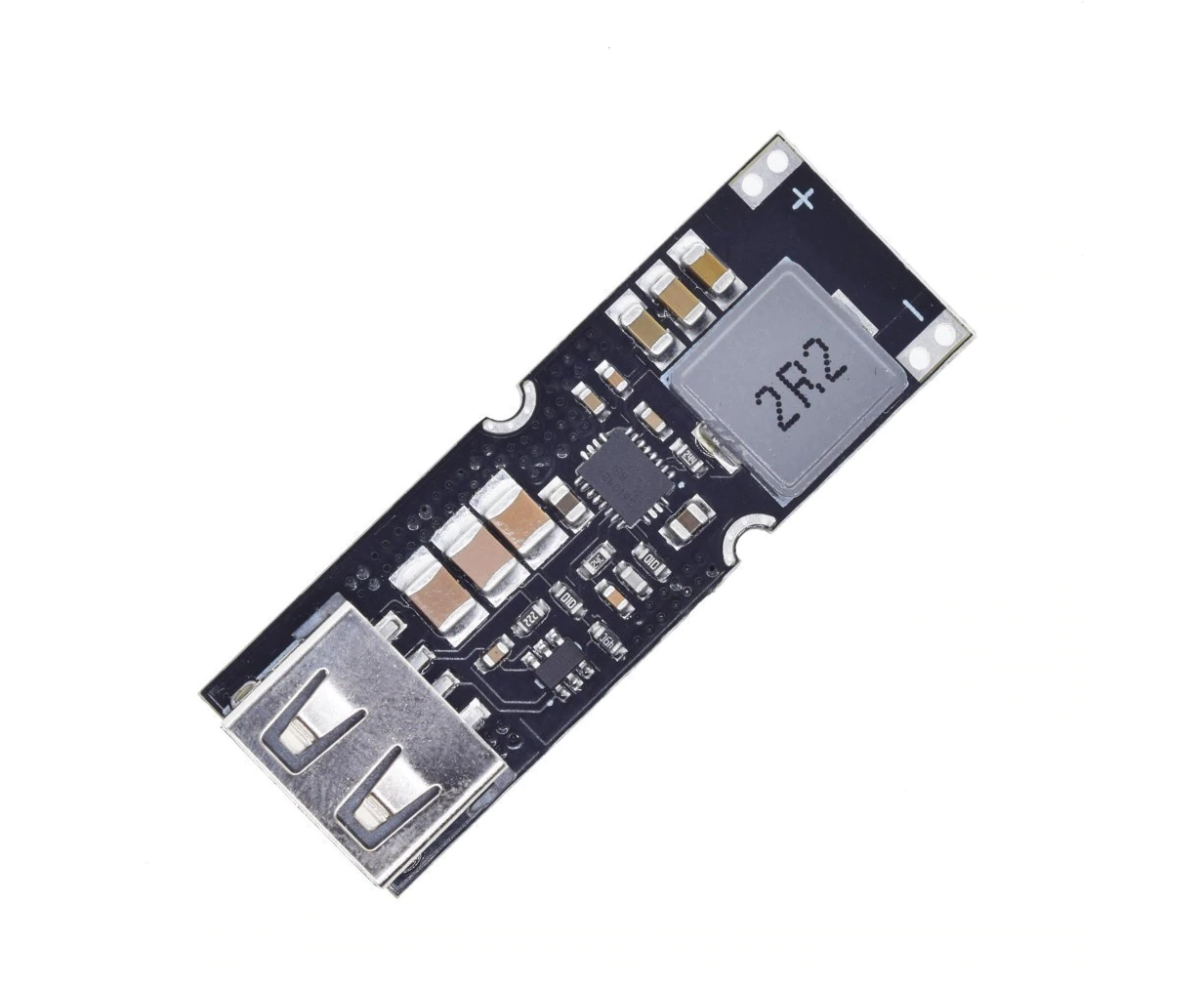

Single Cell Lithium Battery Boost Power Module Board 3.7V 4.2V to QC3.0 Fast Charge 5V 9V 12V - TPS61088/FP6601Q
Κωδικός Cableworks: 1215.910

BrandOEM MPNOEM

€7.28

χωρίς ΦΠΑ €5.87

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Name: Single-cell lithium battery boost fast charging source module

Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8 ~ 4.5V, very suitable for 3.7V polymer lithium battery
Output voltage: The default is 5V, triggering fast charge after 4.5V ~ 12V according to the protocol.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. Output current is adaptive.
Output power: up to 24W.
Support Agreement: QC2.0, QC3.0, Huawei FCP, DCP Agreement
Efficiency is up to 93%, with a typical value of 90%.
Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)

The FP6601Q chip integrates the HiSilicon fast charge protocol and Qualcomm QC2.0/3.0USB interface fast charge protocol, which can quickly charge devices that support FCP and QC2.0/3.0 protocols. In addition to supporting the USB BC1.2 standard, it also supports FOR Apple and FOR Samsung devices. The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device to automatically adjust the voltage.

feature of product:
1. Support FCP voltage and current output protocol.
2. Support Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output.
3. Automatically recognize FCP and QC2.0/3.0 fast charge protocol.
4. Support the protocol equipment of Chinese telecom enterprise YD/T 1591.

The TPS61088 is a high power density, fully integrated boost converter with an 11mΩ power switch and a 13mΩ rectifier switch that provides an efficient, small form factor solution for portable systems. With a wide input voltage range of 2.7V to 12V, the TPS61088 supports applications with single or two-cell Li-Ion batteries. The device features 10A switching current capability and is capable of delivering output voltages up to 12.6V.

The TPS61088 uses an adaptive constant off-time peak current control topology to regulate the output voltage. The TPS61088 operates in PWM mode under medium to heavy load conditions. Under light load conditions, the device can select one of the following two modes of operation via the MODE pin. One is a PFM mode that increases efficiency; the other is a forced PWM mode that avoids application problems due to low switching frequency. The switching frequency in PWM mode can be adjusted from 200kHz to 2.2MHz with an external resistor. The TPS61088 also implements a programmable soft start function and an adjustable switching peak current limit. In addition, the device is available with 13.2V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.

The TPS61088 is available in a 20-pin 4.50mm × 3.50mm VQFN package.
