Wavertech WDY52-1G, ODY Hotspot Gateway, Throughput 1Gbps, DualBand Wifi5, Up To 200 Clients

Κωδικός Cableworks: 1148.009

WAVER ODY Hotspot Gateway

WAVER ODY is a compact Hotspot Gateway designed for optimum performance in small venues. Specifically designed to meet the demands of small Cafes, Restaurants and BnBs, WAVER ODY assures seamless connectivity with confidence and simplicity. With two variants offering speeds of either 100Mbps or 1Gbps and supporting up to 200 Active Guests, it’s the ideal solution for environments where reliable Guest WiFi access is essential. Combining the cutting-edge functionalities of WAVER OS with integrated Dual-Band AC WiFi, an Extension Guest Ethernet Port for expanded AP coverage and a versatile voltage range of 12-28V with PoE capability, WAVER ODY offers a comprehensive Guest WiFi solution at a notably lower cost than any competitor.

Ideal for: Small cafes, restaurants, BnBs, Chains, Mobility industry etc.

Available Models:

• WDY52-100 – up to 100Mbps throughput
• WDY52-1G – up to 1Gbps throughput


FEATURES

• User friendly Administration Interface for easy configuration and management
• Responsive Guest Captive Portal with six fully customizable themes
• Integrated Captive Portal Editor – Custom Texts, Colors, Buttons, Images, Video, Logo, Languages, Links etc.
• Multilingual guest experience (multiple language selection – admins can translate contents to up to 140 languages)
• Multiple Guest Login options: Free, Email, Facebook Login, Mobile/SMS, User/pass, QR Login and Prepaid Access
• Captive portal support for external content (web images, videos, jscript, chat platforms, iFrames etc.)
• Custom Terms – Privacy texts and User Data retention policy settings (GDPR Compliant)
• Integrated Digital Menu – Multilingual, fully customizable with guest self-ordering and checkout capabilities
• Analytical Statistics and Graphs, Guest data capturing, CSV Export and third-party user data sync
• User data synchronization: MailChimp List or scheduled periodic upload to FTP Server
• Guest network and guest devices session, speed and time limits
• Printable custom user/pass vouchers with your custom titles, texts and validity settings
• Custom user/pass vouchers with three printing layout options: QR Login, Logo, Batch print
• User/pass management from third-party software via API (HTTP API)
• Prepaid Internet plans (time/data quotas) via the integrated payment portal accepting PayPal or credit cards
• Guest Rating System with redirection capabilities to external websites such as TripAdvisor, Yelp, Google Places etc.
• Automated Email/SMS delivery for marketing purposes or delivery of individual Email/SMS discount coupons
• Integrated Discount coupon code management system for use by employees
• Limited access user accounts for Voucher Manager and Coupon Code Management system
• Centralized Remote management via the PointX CM cloud platform (optional)
• 100% Software white-labeling option available (custom admin interface logos, texts)
• Free Cloud service for direct remote Web UI access (works behind NAT)
• Connection Tracking module for tracking guest user access with Syslog/remote logging capabilities
• VPN Service – PPTP and L2TP/IPSec VPN Client
• Scheduled operation for WiFi networks and Guest Ethernet port
• Integrated Dual-Band AC WiFi
• VLAN Tagging (Protocols IEEE 802.1Q/C-Tag 802.11ad)
• Centralized Access Point Management for Mikrotik APs (CAP Mode)
• Works with any Access Point/AP Controller

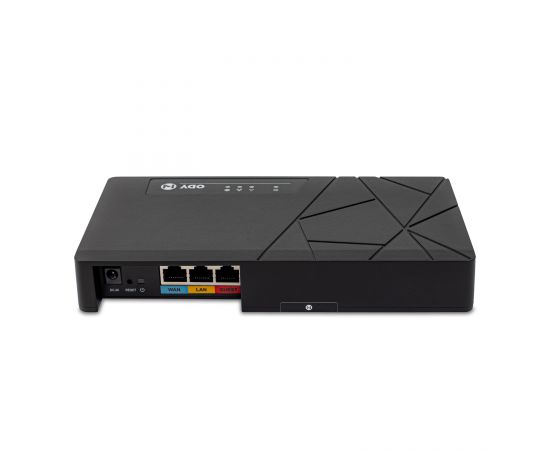

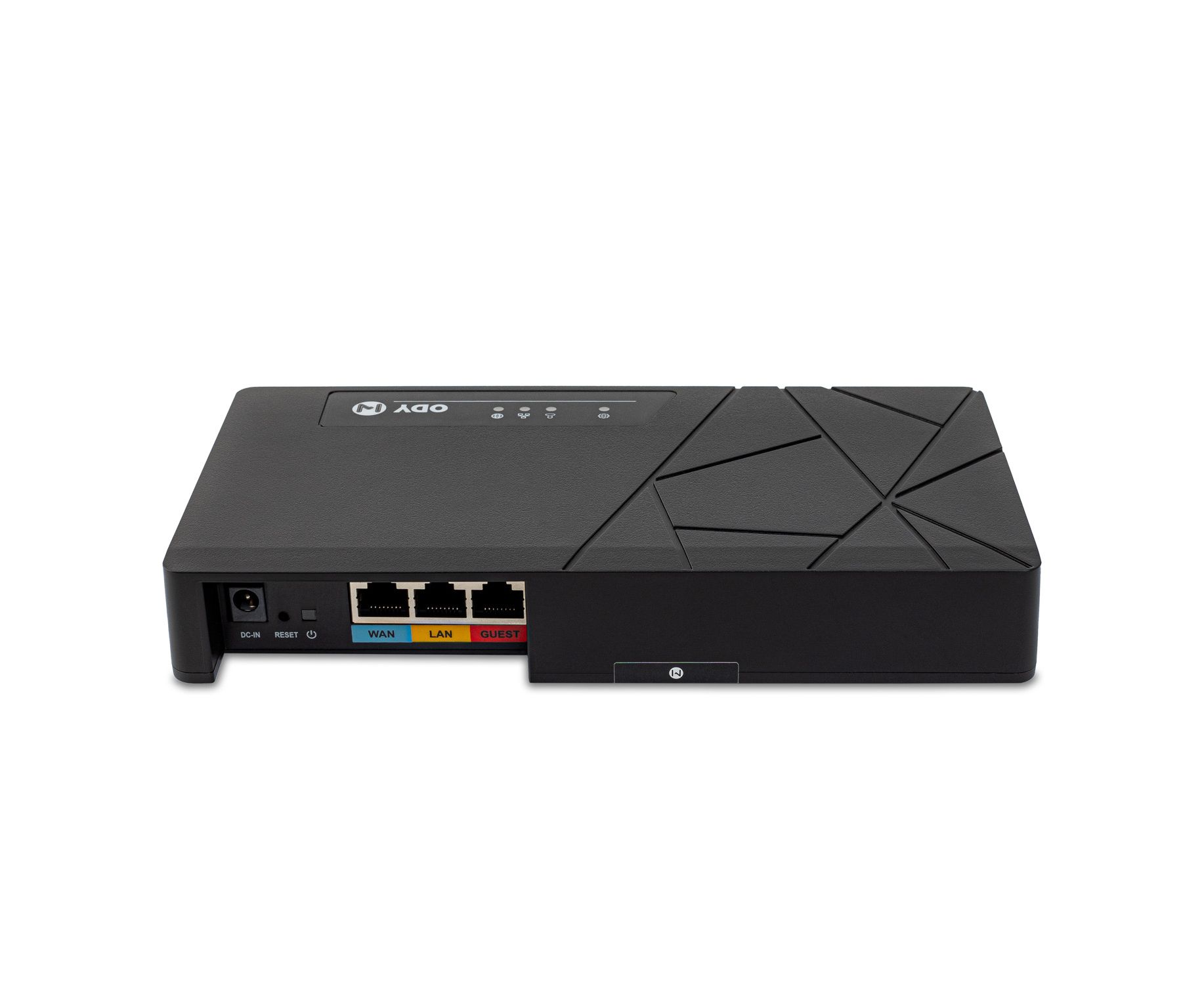

HARDWARE OVERVIEW

Engineered for adaptability, Waver ODY presents a minimalist, buttonless design coupled with high-quality components, offering years of hassle-free operation.

• Dual Band 2.4 and 5GHz AC WiFi
• 1x WAN/Internet and 1x LAN Port
• 1x GUEST Port (Extends Guest Network)
• Supports 12-28V PoE Input
• Industrial/Wall mounting kit included



WDY52-1G SPECIFICATIONS

Main CPU/RAM: 900MHz Quad-core / 1GB

Network CPU/RAM: 716MHz Quad-core / 128MB

Buttons: Factory Reset

LEDs: Power, WAN/Internet Port, Guest Port, LAN Port, System

Operating Temperature: -20°C to +60°C

Input Voltage: 12-28V (DC-IN, PoE)

Dimensions: 207x110x33mm

WAN Throughput: 1 Gbps

WAN Interfaces: 1x WAN/Internet 10/100/1000M (PoE In)

LAN Interfaces: 1x LAN 10/100/1000M

Guest Interfaces: 1x Guest Port 10/100/1000M

Wireless Interfaces:  Wave-2 Dual Chain 2.4GHz & 5GHz 1200Mbps

Antennas Type: Integrated 360° 2.5dBi for 2.4GHz, Integrated 360° 2.5dBi for 5GHz

Maximum Tx Power: 19 dBm @2.4GHz, 22 dBm @5GHz

Wireless Chips: IPQ4018
