Wavertech WAC52G, 5xGigabit, 2.5dBi, 19dBm @ 2.4GHz, 2.5dBi, 22dBm @ 5GHz, Wave2, 200 Clients

Κωδικός Cableworks: 1148.003

WAVER SmartOne G-Series Hotspot Gateway

WAVER SmartOne is a reliable dual band wireless router with integrated Captive portal, advanced hotspot and guest management capabilities. It features an easy to use and manage administration interface that is designed to fulfill the most demanding needs of small businesses in the hospitality industry. G-Series is the latest evolution of the top-selling SmartOne Hotspot Gateway. With integrated WAVER OS, it offers advanced hotspot and guest management capabilities, tailored for small and mid-sized businesses in the hospitality industry. The SmartOne G-Series boasts reliable high capacity, accommodating up to 500 Active guests, coupled with Gigabit connectivity and superb 802.11ac Wave 2 WiFi performance, perfectly catering to the needs of small and medium-sized venues.

Ideal for: Cafes, Restaurants, Hotels, BnBs, Chains, Mobility industry etc.

Available Models:

• WAC52G – up to 200 Active Guests
• WAC52G+ – up to 500 Active Guests

FEATURES

• User friendly Administration Interface for easy configuration and management
• Responsive Guest Captive Portal with six fully customizable themes
• Integrated Captive Portal Editor – Custom Texts, Colors, Buttons, Images, Video, Logo, Languages, Links etc.
• Multilingual guest experience (multiple language selection – admins can translate contents to up to 140 languages)
• Multiple Guest Login options: Free, Email, Facebook Login, Mobile/SMS, User/pass, QR Login and Prepaid Access
• Captive portal support for external content (web images, videos, jscript, chat platforms, iFrames etc.)
• Custom Terms – Privacy texts and User Data retention policy settings (GDPR Compliant)
• Integrated Digital Menu – Multilingual, fully customizable with guest self-ordering and checkout capabilities
• Analytical Statistics and Graphs, Guest data capturing, CSV Export and third-party user data sync
• User data synchronization: MailChimp List or scheduled periodic upload to FTP Server
• Guest network and guest devices session, speed and time limits
• Printable custom user/pass vouchers with your custom titles, texts and validity settings
• Custom user/pass vouchers with three printing layout options: QR Login, Logo, Batch print
• User/pass management from third-party software via API (HTTP API)
• Prepaid Internet plans (time/data quotas) via the integrated payment portal accepting PayPal or credit cards
• Guest Rating System with redirection capabilities to external websites such as TripAdvisor, Yelp, Google Places etc.
• Automated Email/SMS delivery for marketing purposes or delivery of individual Email/SMS discount coupons
• Integrated Discount coupon code management system for use by employees
• Limited access user accounts for Voucher Manager and Coupon Code Management system
• Centralized Remote management via the PointX CM cloud platform (optional)
• 100% Software white-labeling option available (custom admin interface logos, texts)
• Free Cloud service for direct remote Web UI access (works behind NAT)
• Connection Tracking module for tracking guest user access with Syslog/remote logging capabilities
• VPN Service – PPTP and L2TP/IPSec VPN Client
• Scheduled operation for WiFi networks and Guest Ethernet port
• Integrated Dual-Band Wave2 Technology 1200 Mbps AC WiFi
• VLAN Tagging (Protocols IEEE 802.1Q/C-Tag 802.11ad)
• Centralized Access Point Management for Mikrotik APs (CAP Mode)
• Works with any Access Point/AP Controller

HARDWARE OVERVIEW

Waver SmartOne was carefully designed and manufactured with state of the art, quality components to ensure high performance and reliability.

• 1200Mbps Dual Band 2.4 & 5GHz Wave-2 AC WiFi
• 1x GbE WAN/Internet & 4x LAN/Management ports
• 1x GbE Guest Port (Extends Guest Network)

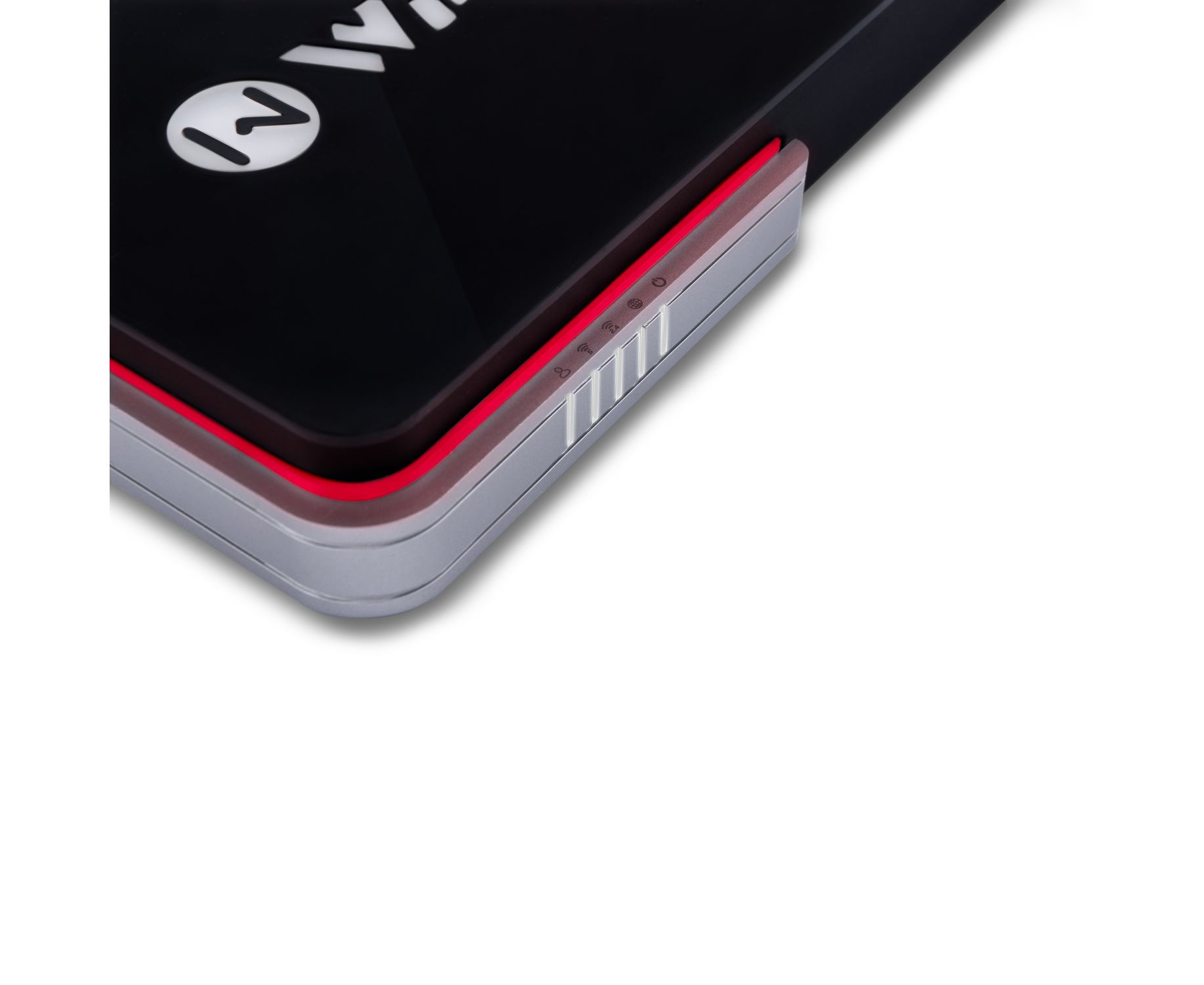

• Adjustable LED Color & Intensity
• Sleek High quality design



WAC52G/G+ SPECIFICATIONS

Main CPU/RAM: 900MHz Quad-core / 1GB

Network CPU/RAM: 716MHz Quad-core / 128MB

Buttons: Power On/Off, Factory Reset, 2.4GHz Radio, 5GHz Radio

Activity LEDs: Power, WAN/Internet Port, 2.4GHz Radio, 5GHz Radio, Guest Port, LAN Ports x4

Adjustable LEDs: Logo (intensity), Corner RGB (intensity, color)

Operating Temperature: -20°C to +60°C

Input Voltage: 24V 0.8A

Dimensions: 286x165x46mm

Weight: 950g

WAN Throughput: 1 Gbps

WAN Interfaces: 1x WAN/Internet 10/100/1000M

LAN Interfaces: 4x LAN 10/100M

Guest Interfaces: 1x Guest Port 10/100/1000M

Wireless Interfaces:  Wave-2 Dual Chain 2.4GHz & 5GHz 1200Mbps

Antennas Type: Integrated 360° 2.5dBi for 2.4GHz, Integrated 360° 2.5dBi for 5GHz

Maximum Tx Power: 19 dBm @2.4GHz,  22 dBm @5GHz

Wireless Chips: IPQ4018
