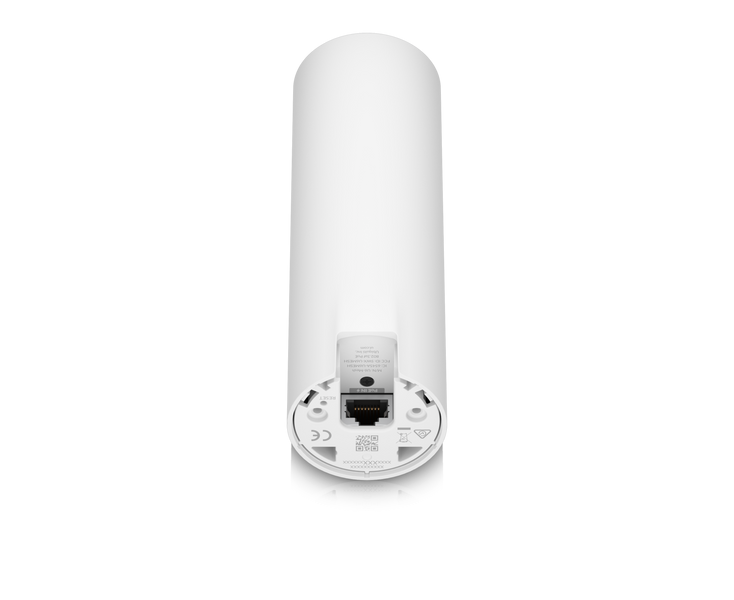

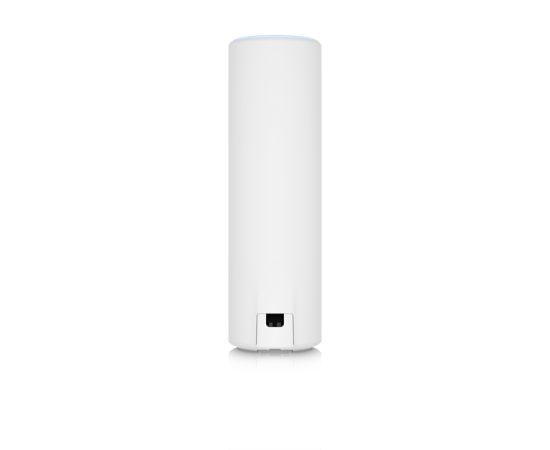

Ubiquiti Unifi U6-Mesh, Wifi 6, 3dBi, 22dBm, 570Mbps, 2x2 (UL) @ 2.4GHz & 5dBi, 26dBm, 4800Mbps (UL & DL), 4x4 @ 5GHz, 1xGigabit, 300+ clients, Outdoor IPX5
Κωδικός Cableworks: 1001.461

BrandUbiquiti MPNU6-Mesh ΕΓΓΥΗΣΗ24 μήνες

€250.00

χωρίς ΦΠΑ €201.61

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 1,822 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

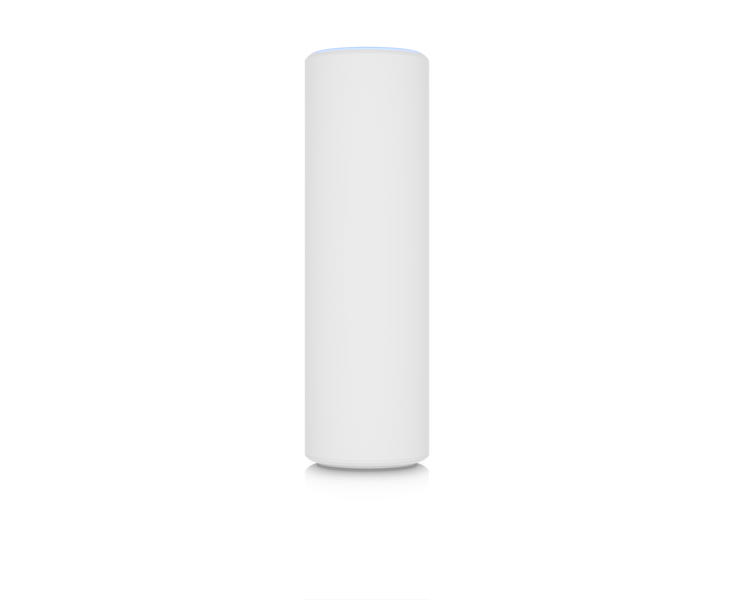

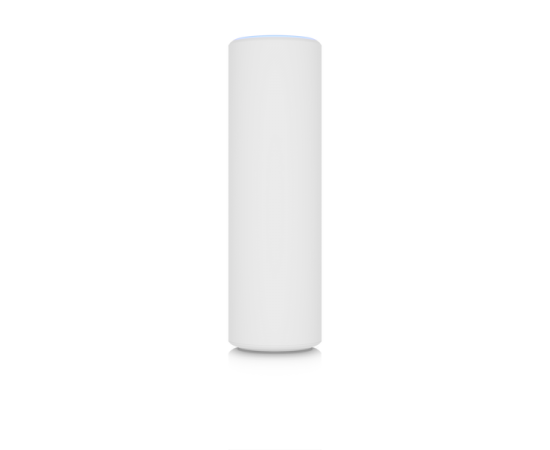

Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.

The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Features:

High-efficiency 4x4 WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MIMO) band with a 573.5 throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
Powered with 802.3af PoE (PoE adapter included)

Managed with the UniFi Network application: Version 6.3.51 and later

Note. Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.

Mechanical

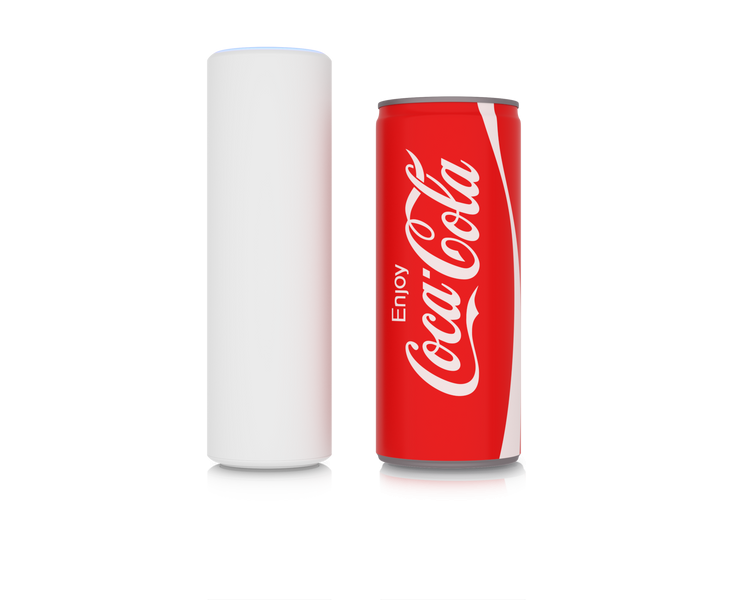

Dimensions	Ø48.5 x 159.5 mm (Ø1.9 x 6.28")
Weight	400 g (0.88 lb)
Enclosure material	Plastic, aluminum
Mount materials	Plastic
Weatherproofing	IPX5
Hardware
Management interfaces	Ethernet Bluetooth

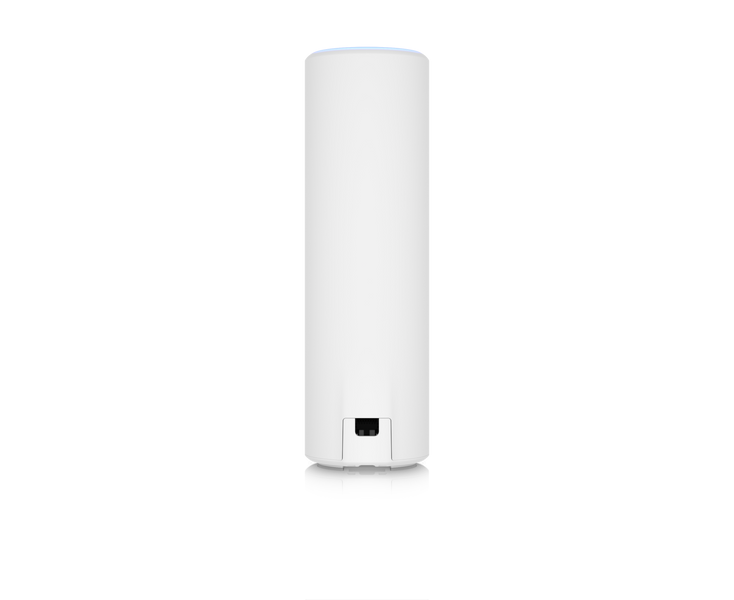

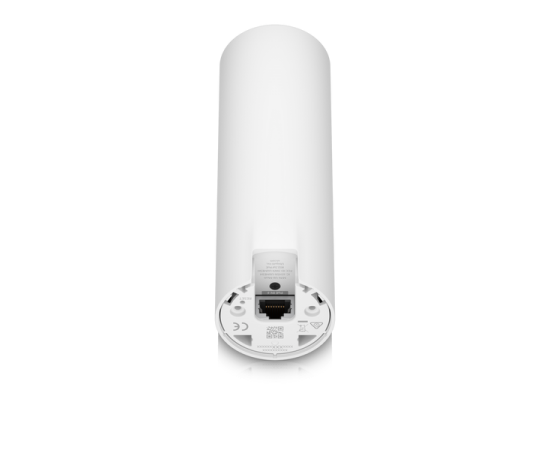

Networking interface	(1) GbE RJ45 port
Button	Factory reset
LED*	White/blue *Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Power method	802.3af PoE
Power supply	UniFi PoE switch 48V, 0.32A PoE adapter (included)
Supported voltage range	44 to 57VDC
Max. power consumption	11.4W
Max. TX power 2.4 GHz 5 GHz	22 dBm 26 dBm
MIMO 2.4 GHz 5 GHz	2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Throughput rate 2.4 GHz 5 GHz	573.5 Mbps 4.8 Gbps
Antenna gain 2.4 GHz 5 GHz	3 dBi 5 dBi

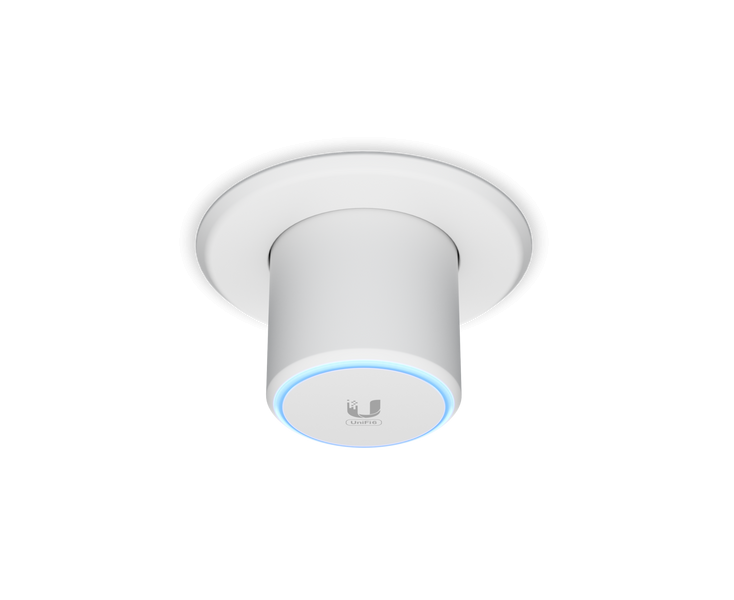

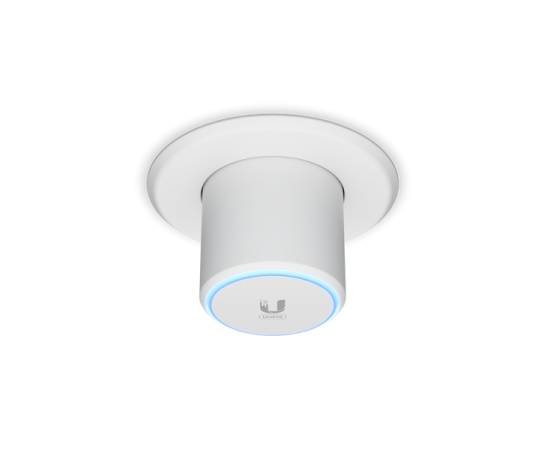

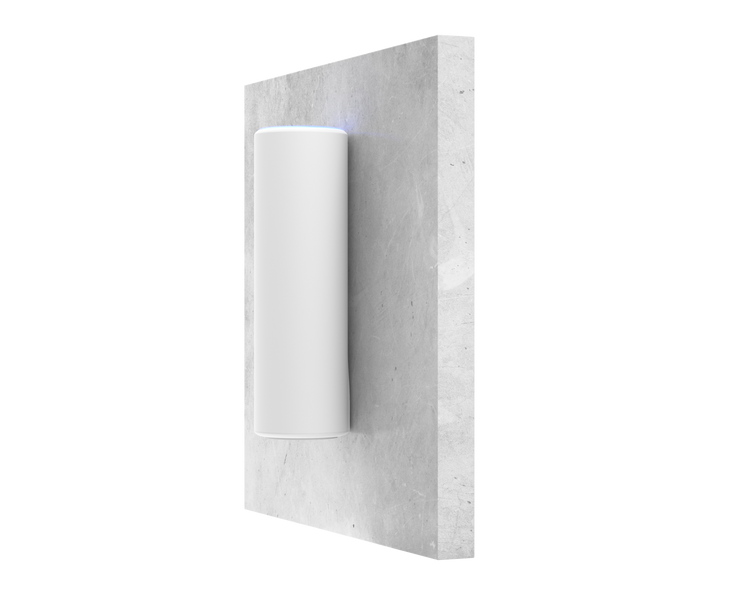

Mounting	Wall, desktop, pole mount(included) Ceiling mount (optional)
Operating temperature	-30 to 60° C (-22 to 140° F)
Operating humidity	5 - 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Zero wait DFS	Yes* *Supported with upcoming firmware versions
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
