Ubiquiti Unifi U6-IW, Wifi6 In-Wall, 5dBi, 22dBm, 600Mbps, 2x2 @ 2.4GHz & 5.9dBi, 26dBm, 4800Mbps, 4x4 @ 5GHz, 5xGigabit, 300+ Clients
Κωδικός Cableworks: 1001.516

BrandUbiquiti MPNU6-IW ΕΓΓΥΗΣΗ24 μήνες

€248.00

χωρίς ΦΠΑ €200.00

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 782 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Wall-mounted WiFi 6 access point with a 300-client capacity and a built-in Gigabit, PoE switch.

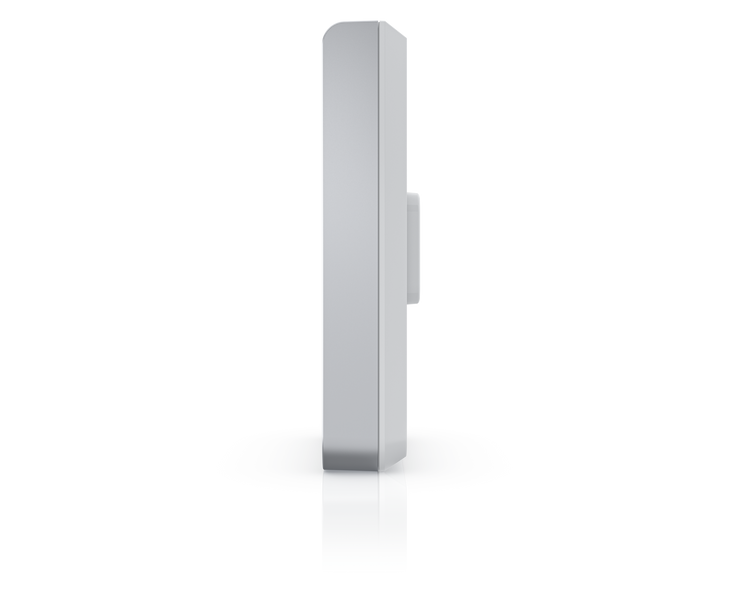

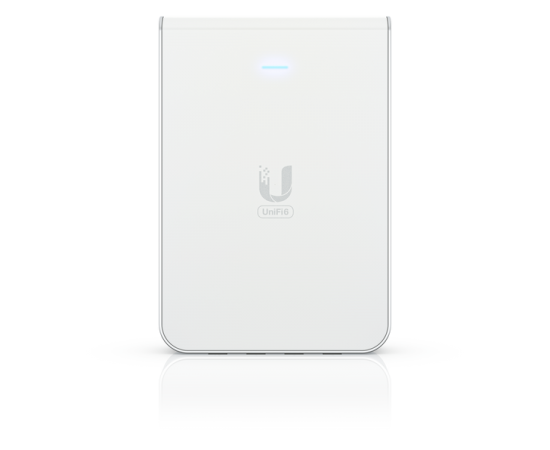

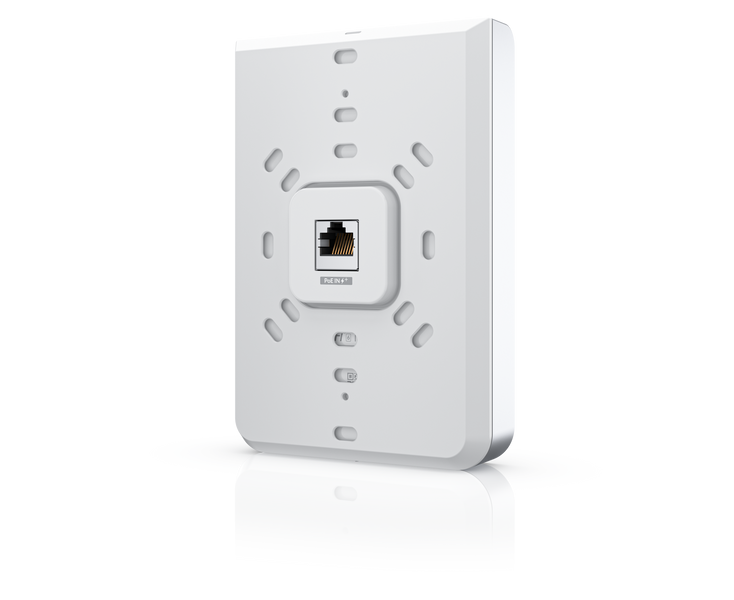

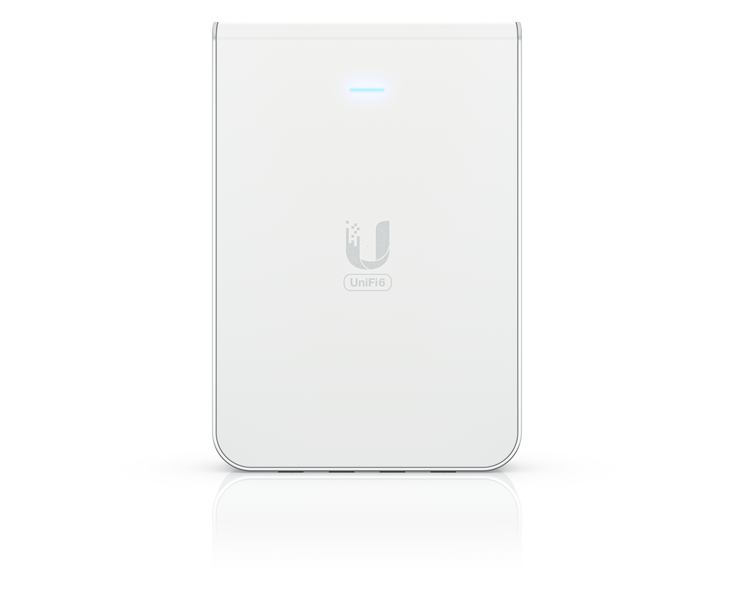

The UniFi6 In-Wall (U6 IW) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW's ports also supports PoE output so you can connect and power an Ethernet device. With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients. The U6 IW is also Bluetooth-compatible so it can be set up in minutes and managed from anywhere via the UniFi Network web application or mobile app.

Features:

High-efficiency, four-stream WiFi 6 technology
5 GHz WiFi 6 band (4x4 MU-MIMO and OFDMA)
2.4 GHz WiFi 6 band (2x2 MU-MIMO)

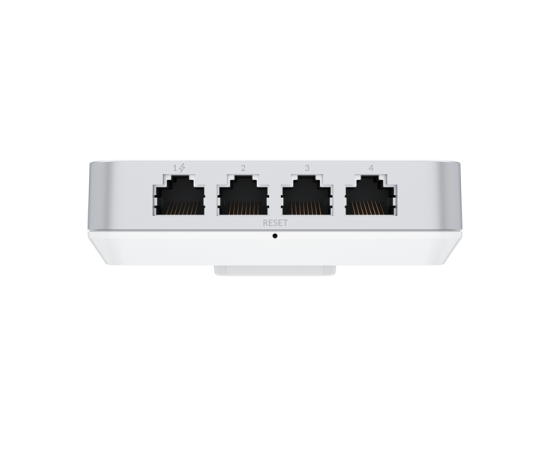

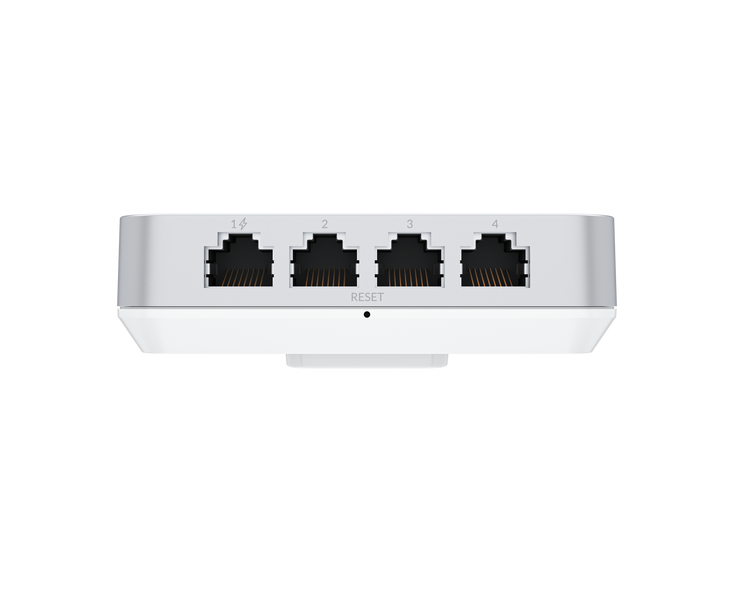

(4) GbE RJ45 ports, including one that supports PoE output
300+ client capacity
Simple, Bluetooth-powered setup via the UniFi Network web application or mobile app

Managed with UniFi Network application: Version 6.4.52 and later

Mechanical
Dimensions	139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight	460 g (1.01 lb)
Enclosure materials	Plastic, aluminum
Mount material	Aluminum
Hardware
Processor specs	Dual-Core® Cortex® A53 at 1 GHz
Memory information	1 GB
Management interfaces	Ethernet Bluetooth
Networking interfaces	(1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports
PoE interfaces	(1) PoE in (PoE output not used) (1) PoE out (requires a PoE+ switch)
Button	Factory reset
LED*	White/blue *Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Power method	PoE
Power supply	UniFi PoE switch 48V, 0.5A PoE adapter (optional)
Max. power consumption	Excluding PoE output: 13.5W
Max PoE wattage per port by PSE	15.4W* *Requires a PoE+ switch
Voltage range PoE mode	44 to 57VDC
Max. TX power 2.4 GHz 5 GHz	22 dBm 26 dBm
MIMO 2.4 GHz 5 GHz	2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Throughput rate 2.4 GHz 5 GHz	573.5 Mbps 4.8 Gbps
Antenna gain 2.4 GHz 5 GHz	5 dBi 5.9 dBi
Operating temperature	-30 to 60° C (-22 to 140° F)
Operating humidity	5 - 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Zero-wait DFS	Yes
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
