Ubiquiti UMR-Industrial, Cat4 Mobile Router Industrial, GPS, Wifi 2.4GHz, 2xGigabit (1x PoE Input)
Κωδικός Cableworks: 1001.688

BrandUbiquiti MPNUMR-Industrial

€265.61

χωρίς ΦΠΑ €214.20

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

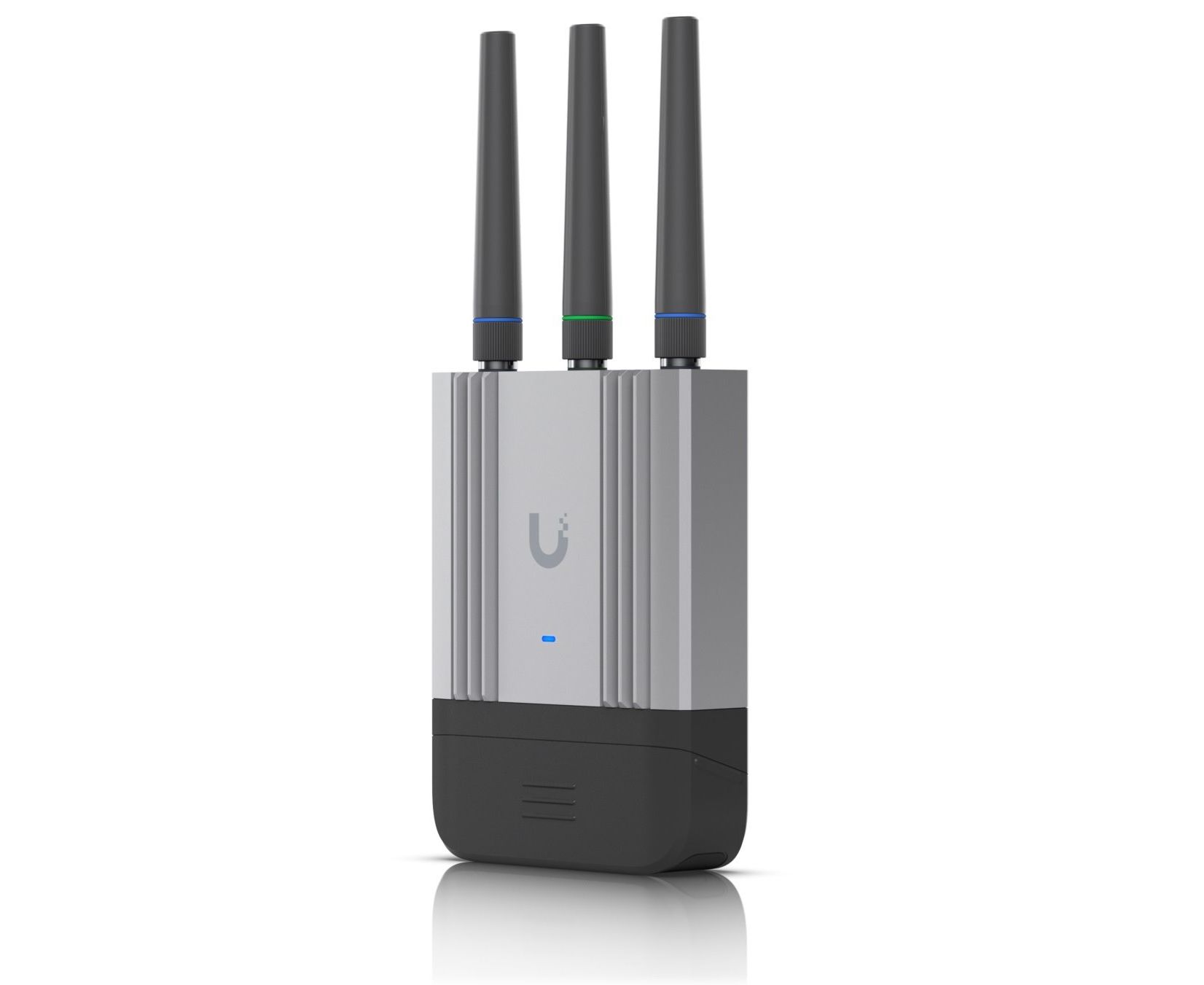

Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

Site-to-site VPN and VPN client routing

(2) GbE ports with (1) PoE output*

Powered using PoE, USB Type-C, or 4-pin DC power socket

Outdoor GPS location tracking

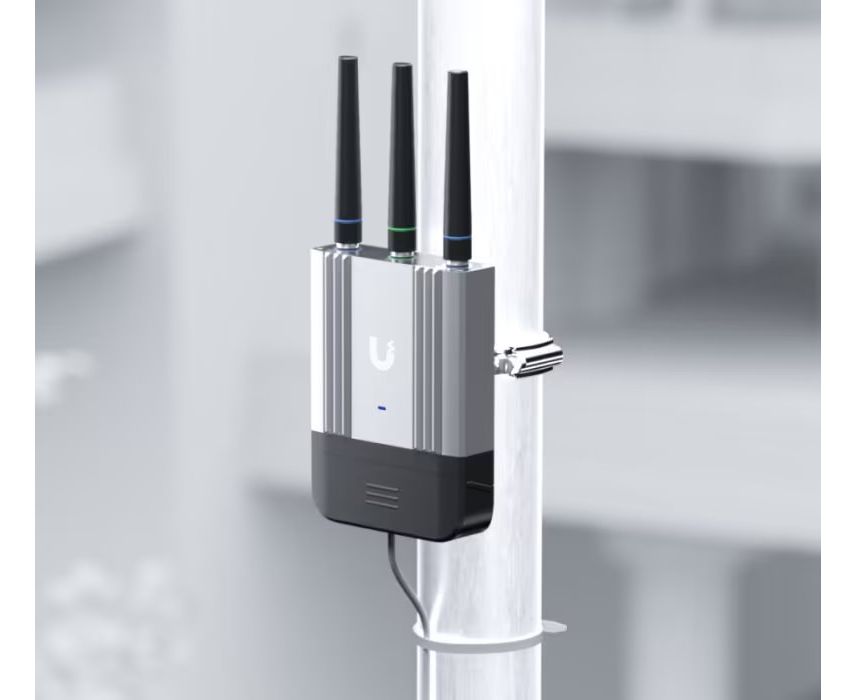

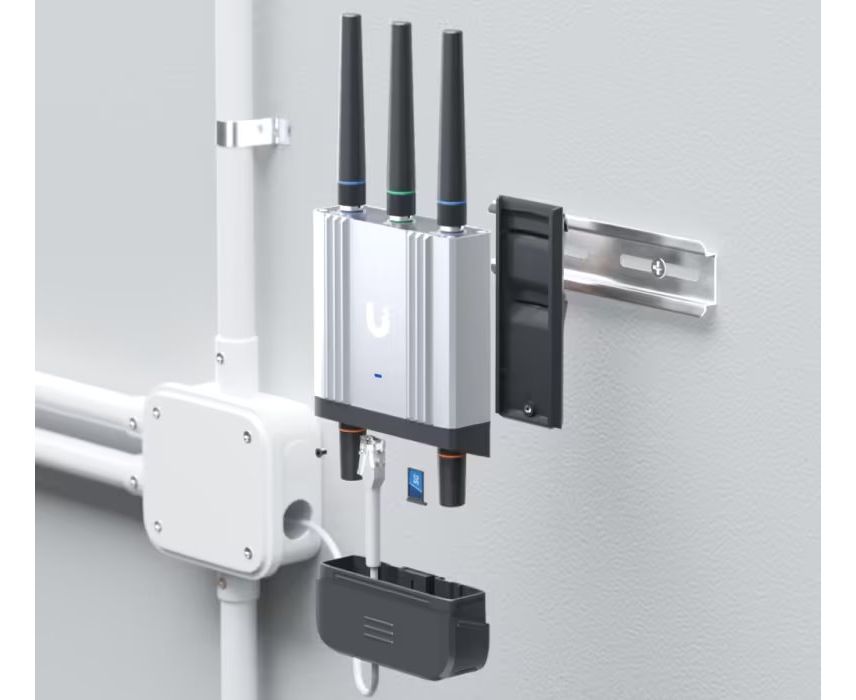

Flexible wall, pole, and DIN rail mounting

Weatherproof (outdoor exposed) with the included cover

Optional Mobility Cloud subscription**

_{*PoE+ input required for PoE passthrough.
**Offers secure remote access and full management via the UniFi Mobility Manager at mobility.ui.com for €2 / £2 per month or €19 / £19 per year per Mobile Router. 30-day free trial included. Core management is free and always available via local connection.}

Mechanical
Dimensions	Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3") With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3") With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
Weight	Device: 360 g (12.7 oz) Device with outdoor cover: 395 g (13.9 oz) DIN rail/wall mounts: 25 g (0.9 oz)
Enclosure material	Polycarbonate, aluminum
Mount material	Wall/pole mount: polycarbonate DIN rail mount: polycarbonate
Pole mount diameter	1–2" on pipe outer diameter
Wind loading	38.8 N at 200 km/h (8.7 lbf at 125 mph)
Weatherproofing	Device with outdoor cover: IP66
Hardware
Management interface	Ethernet WiFi
Networking interface	(2) GbE RJ45 ports LTE Category 4 radio WiFi 4
PoE interface	(1) PoE input (1) PoE output* (Max. 10W) *Requires a PoE+ switch.
Power supply	UniFi PoE switch (48—54V DC) USB Type-C (5V DC) 4-pin* ATX DC power socket (9—30V DC) *Pin 1 for Power + and Pin 2 for Ground –. Please refer to the Installation Guide for detailed power socket pinout.
Max. power consumption	12.5W
SIM	nano-SIM (4FF)
LTE bands	B1, B3, B7, B8, B20, B28
3G bands	B1, B8
LTE throughput speed*	Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location.
WiFi standards	802.11 b/g/n, WiFi 2.4G, 20/40 MHz
Max. WiFi TX power	22 dBm
WiFi MIMO	2 x 2
GPS	Yes
Antenna SMA ports	(1) Mobile 1: SMA female connector, supports 1Tx and 1Rx (1) Mobile 2: SMA female connector, supports 1Rx only (1) GPS: SMA female connector (2) WiFi: RP-SMA female connectors Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.
External antennas	(2) Mobile/LTE antennas with SMA male connectors (1) GPS antenna with SMA male connector (2) WiFi antennas with RP-SMA male connectors
LED	Status: blue/white
Button	Factory reset
Mounting	DIN rail/wall/pole mount (Included)
Ambient operating temperature	-40 to 70° C (-40 to 158° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, GCF, Wi-Fi Alliance®
Supported WiFi Data Rates
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
