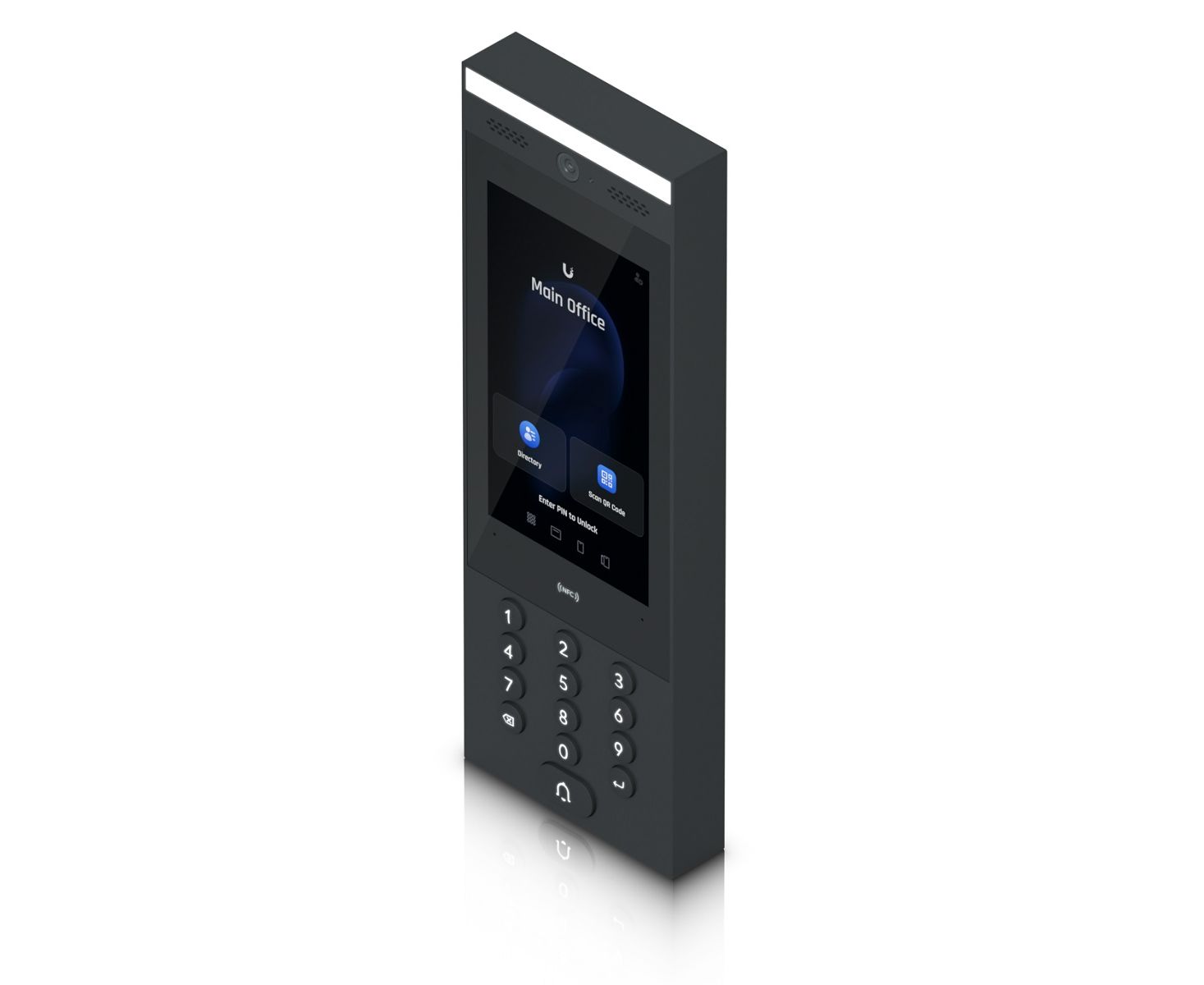

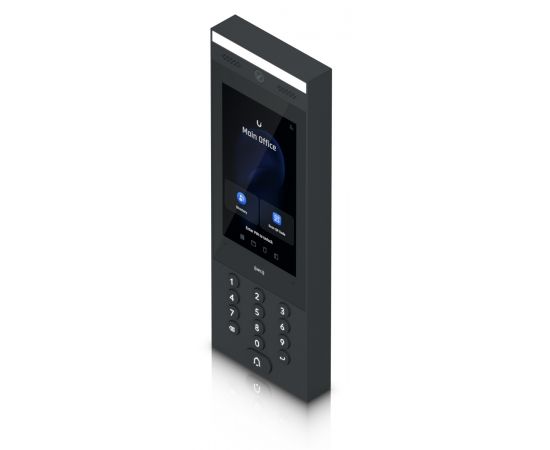

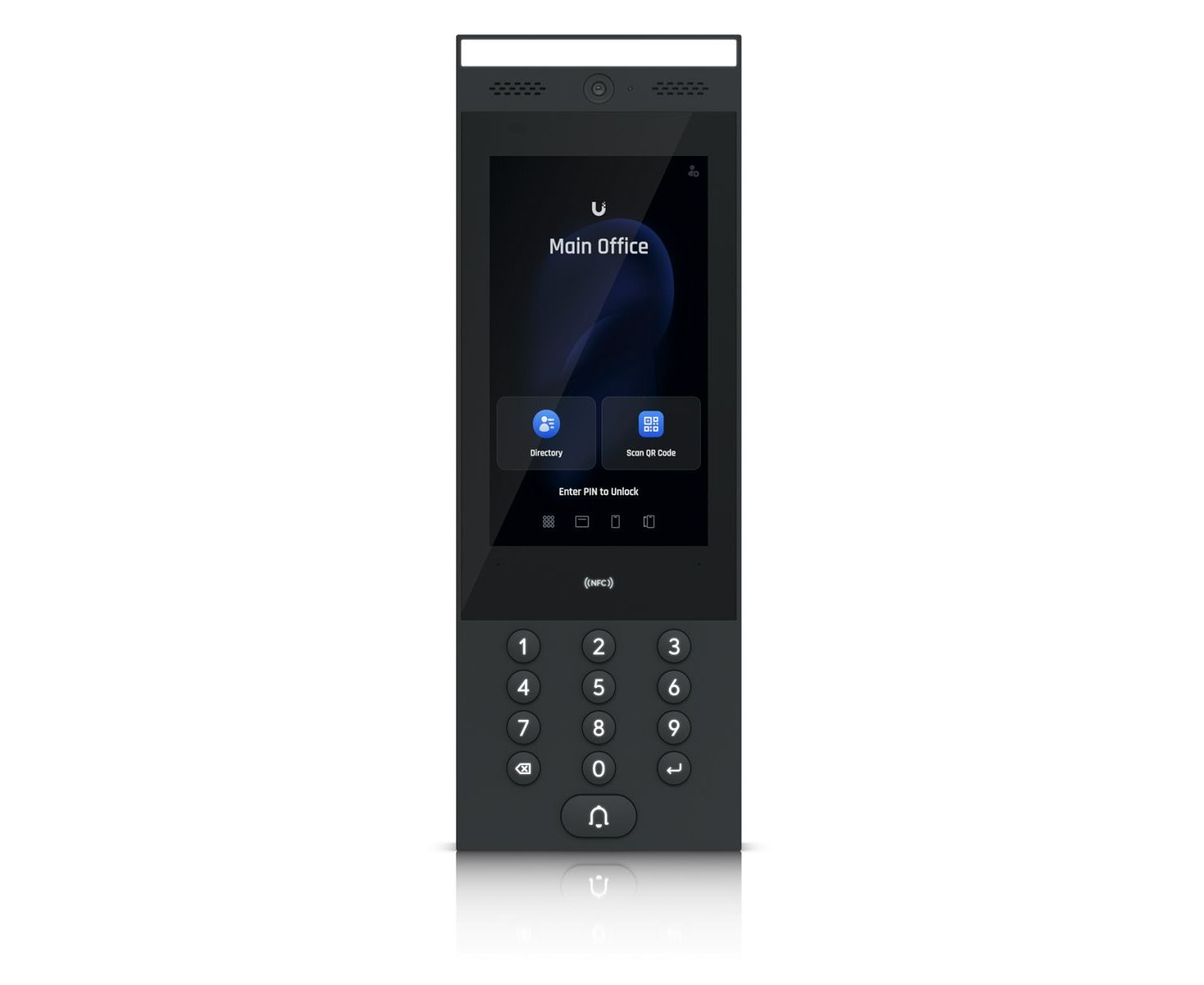

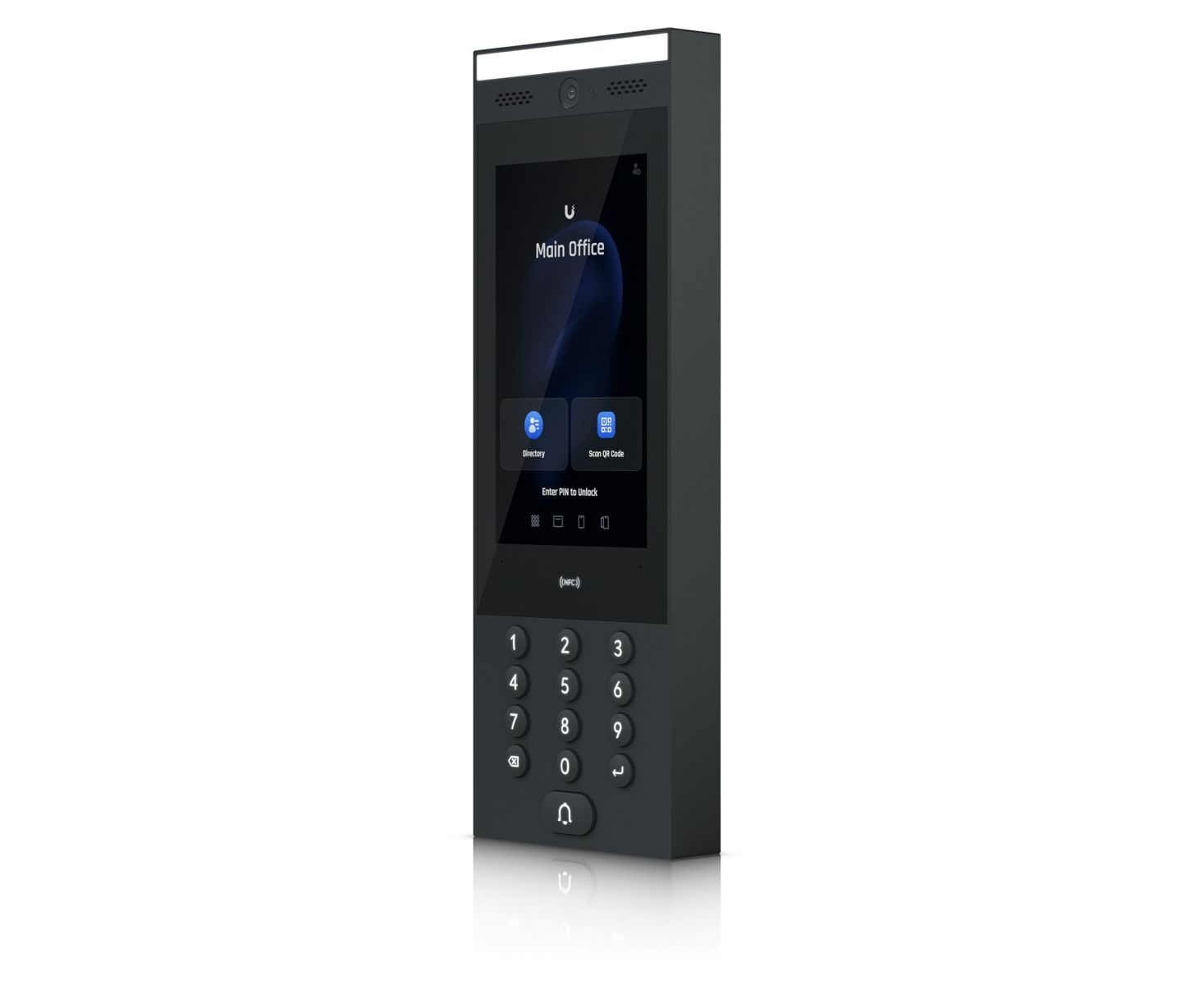

Ubiquiti UA-Intercom, Indoor/outdoor intercom terminal for managing residential and commercial building entry requests
Κωδικός Cableworks: 1001.645

BrandUbiquiti MPNUA-Intercom ΕΓΓΥΗΣΗ24 μήνες

€390.38

χωρίς ΦΠΑ €314.82

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Indoor/outdoor intercom terminal for managing residential and commercial building entry requests.

Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code

Directory and doorbell to request entry

Pairs with multiple UniFi Intercom Viewers for remote access control

Connects to UniFi Access Hub series using PoE

Weatherproof (outdoor exposed -30 to 60° C)

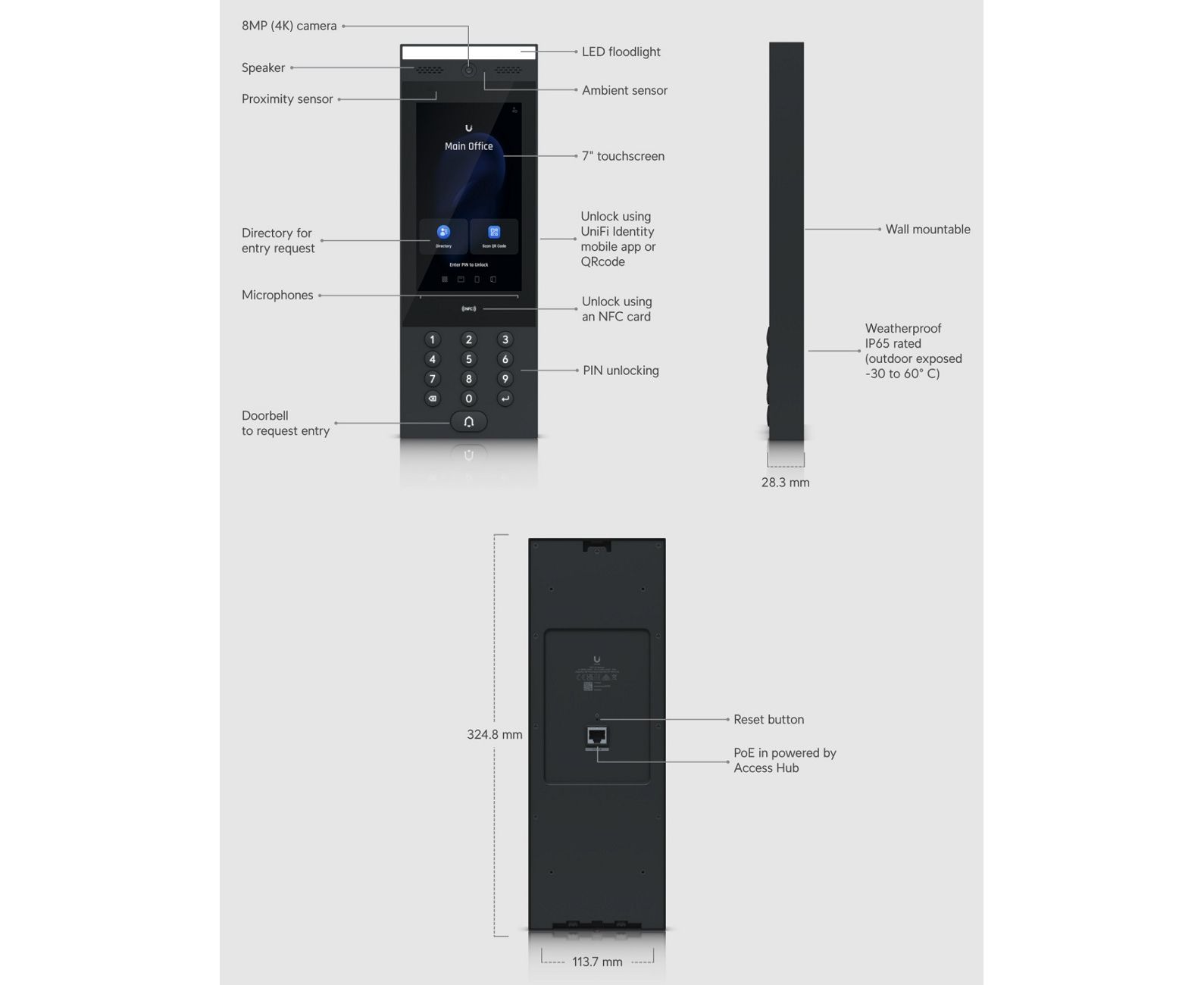

Technical Specifications

Mechanical
Dimensions	324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Weight	Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)
Enclosure material	Aluminum alloy, UV-stabilized polycarbonate, glass
Mount material	Powder-coated stainless steel
Mounting	Wall mount, adapter to the gooseneck pedestal (Included) Surface angle mount, flush mount (Optional) Sunshield kit (Optional)
Weatherproofing	IP65
Hardware
Networking interface	(1) GbE RJ45 port
Connectivity	Bluetooth 4.2 NFC
Power method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range	48V DC
Max. power consumption	13W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensors	Proximity sensor ALS sensor
Camera	3264 x 2448, 8 MP H: 79.4°, V: 97.5°, D: 118.2°
Display	177 mm (7") diagonal
Resolution	1024 x 600 (16:9)
Display luminance	Max. 1000 nits (typical)
Touch screen technology	Capacitive multi-touch
Microphone	Yes
Speaker	(1) 4 ohm, 2W
LEDs	(1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system funtions normally) (1) LED floodlight (13) Keypad LED backlight
Button	(1) Factory-reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC standards	ISO 14443A, 14443B, 15693
NFC technology	NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire
Ambient operating temperature	Device: -30 to 60° C (-22 to 140° F) Display:* -25 to 60° C (-13 to 140° F) *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66)
Operating environment	Outdoor use
Ambient operating humidity	5 to 90% noncondensing
Software information	The software version of a product can be checked at https://unifi.ui.com
UL 294 level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements	Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm ² ) for patch cords; 24 AWG (0.21 mm ² ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-Intercom, V01
Software
Management application	UniFi Access: Version 1.22.17 and later
