Ubiquiti UA-G3-SK-Pro, G3 Starter Kit Pro (1xDoor Hub, 1xG3 Reader Pro, 1xG3 Reader, 2xPocket Keyfobs)
Κωδικός Cableworks: 1001.760

BrandUbiquiti MPNUA-G3-SK-Pro
€704.16
χωρίς ΦΠΑ €567.87
Μη Διαθέσιμο
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

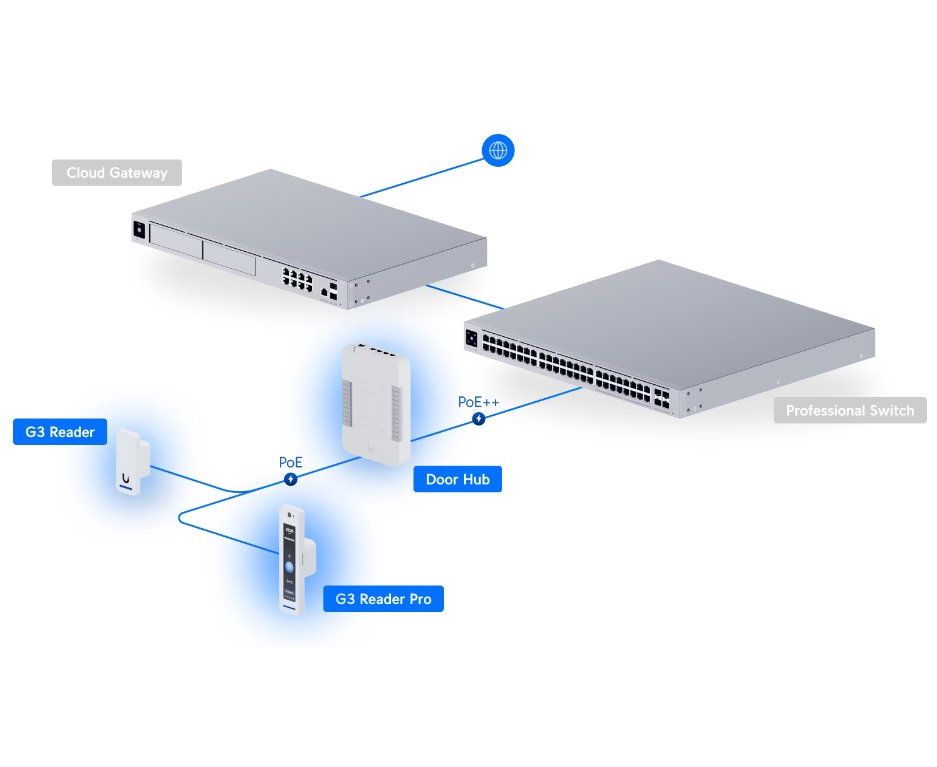

Starter kit that provides complete entry and exit control for a single door with two readers and Apple Touch Pass support.

Note. 10 free 1-year Apple Touch Passes included

Overview
In the Box

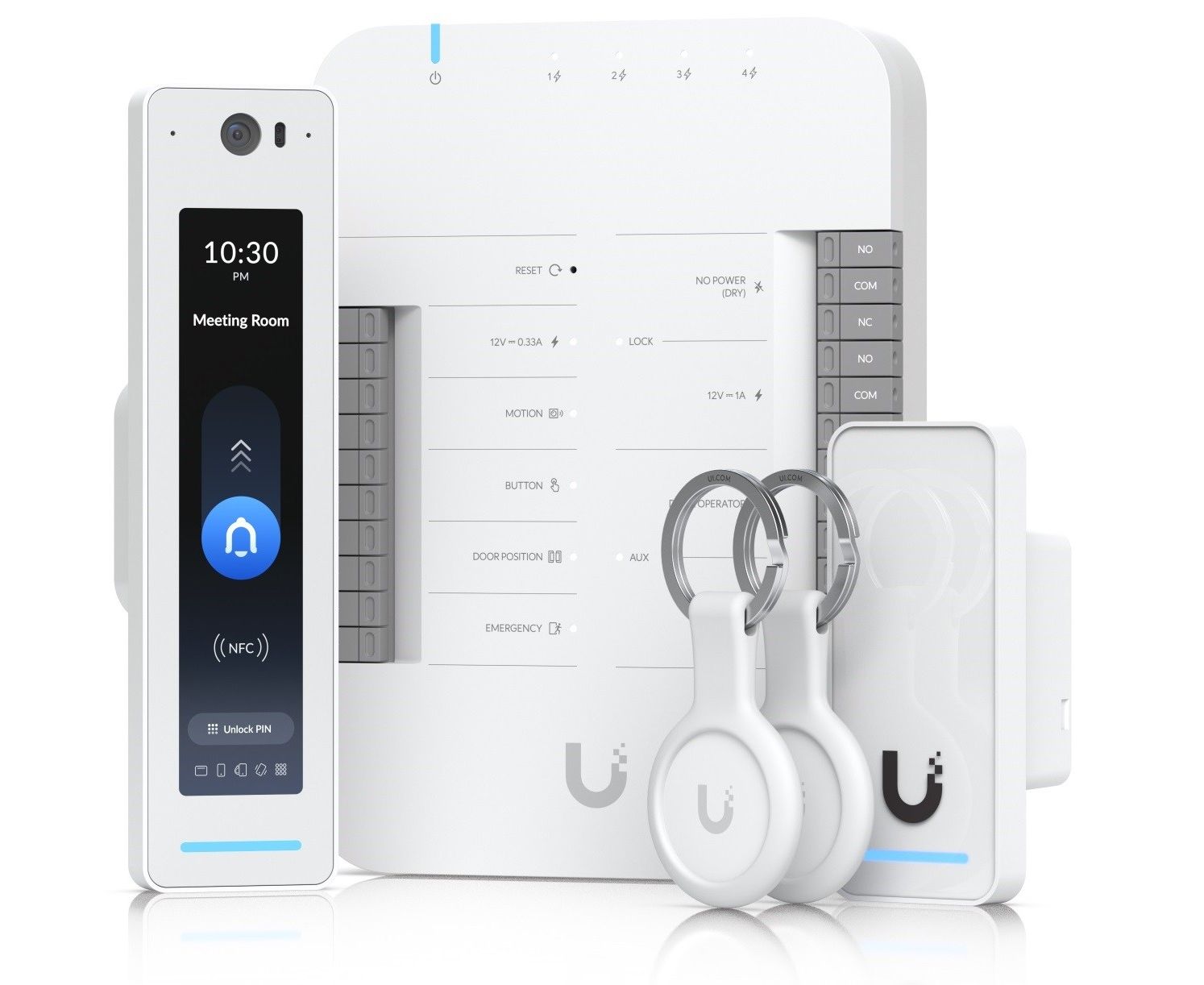

(1) Door Hub (1) G3 Reader Pro (1) G3 Reader (2) Pocket Keyfobs 10 free 1-year Apple Touch Passes included Learn More

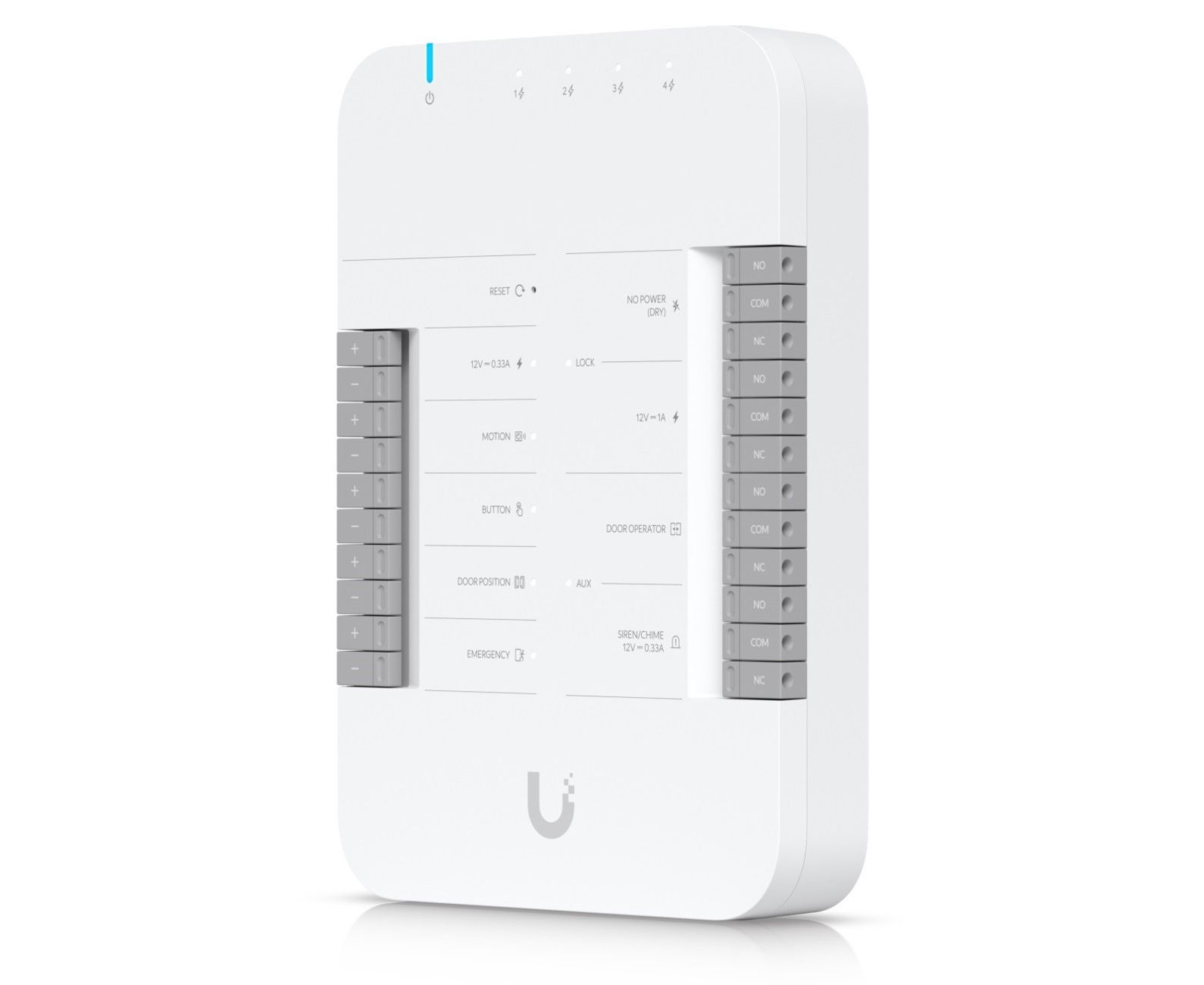

Door Hub
Dimensions
174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Supported Doors
1
Input Terminals
(2) Door exit request (1) Door position (1) Emergency
Power Method
PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight
363 g (12.8 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Mounting
DIN-rail (Included)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing

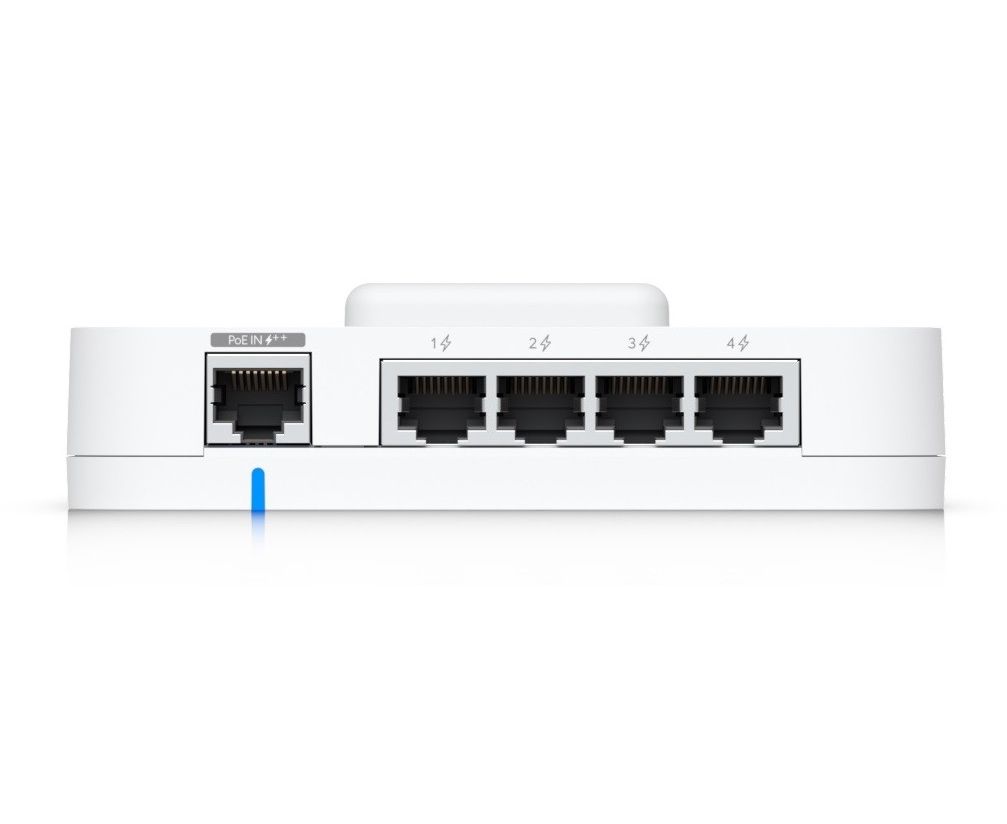

Networking Interface
(5) 10/100/1000 Base-T
PoE Interface
(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
Max. Power Consumption
30W (Without PoE output) 50W (With PoE output)
Digital Input
Request to exit, request to enter, remote release, door position sensor
Dry Output Relay
Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output Relay
Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
LEDs
White/blue Learn More
Button
(1) Factory-reset
Recommend Max. Cable Length


UA-Lock-Electric (400mA)
24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)


UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)


UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)


Other locks (1A)
24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: 1
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Door002, V01
Software Information
The software version can be checked at https://unifi.ui.com

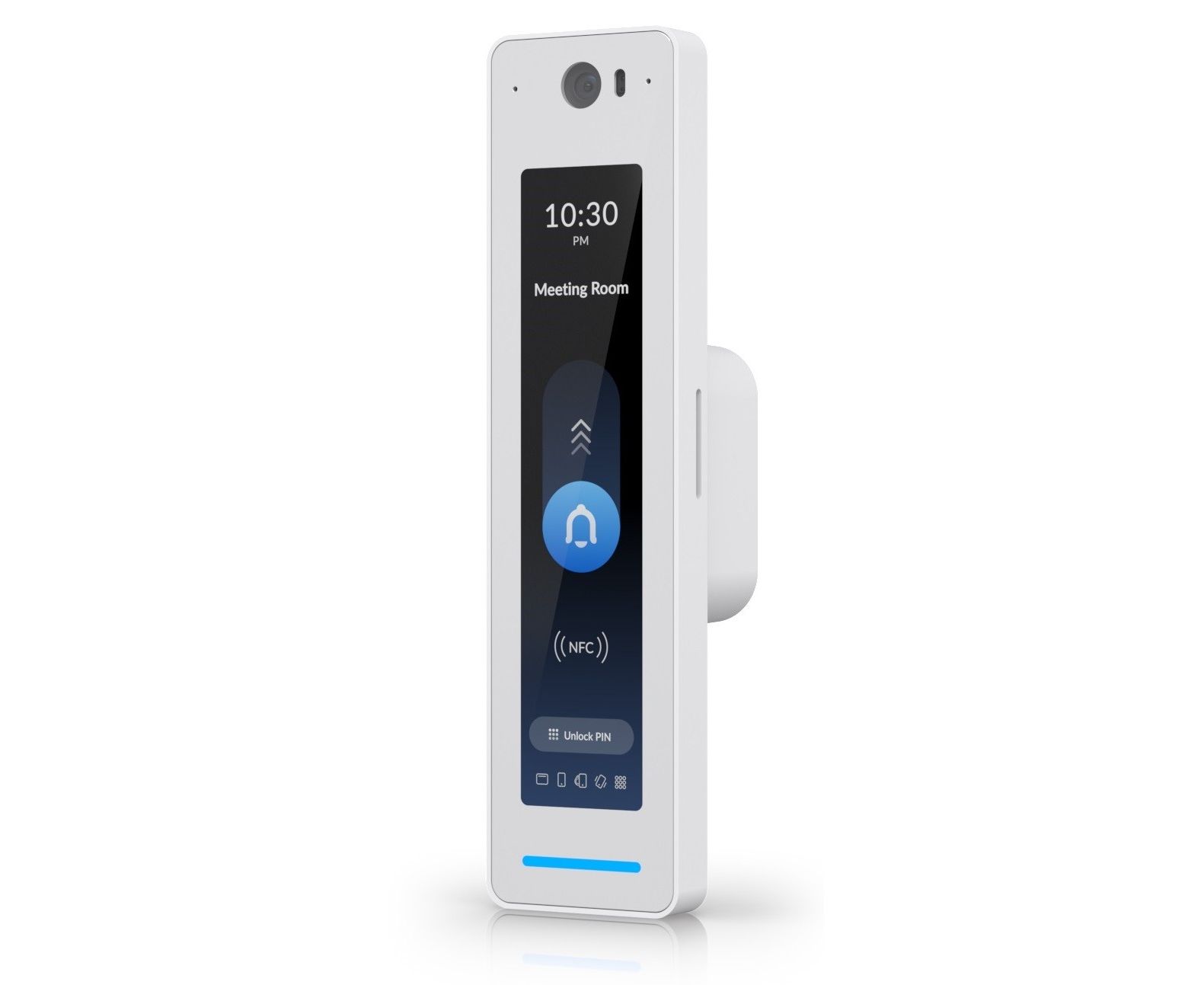

G3 Reader Pro
Dimensions
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Integrated Camera
Yes
NFC Card & Keyfob Access
Yes
PIN Access
Yes
Touch Pass
Yes
Mobile Unlock
Yes
Two-Way Intercom & Doorbell Access
Yes
Weatherproofing
IP55
Weight
136 g (4.8 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
Wall, gang-box mount (Included) Angle mount, junction box (Optional)
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
6W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Display
120 mm (4.7") diagonal
Touch Screen Technology
Capacitive touch
Display Luminance
480 nits (Typical)
Screen Orientation
Portrait
Resolution
1280 x 286 px
Microphone
Yes
Speaker
(1) 4 ohm, 1.5W
LEDs
R/G/B/W/Amber Learn More
Button
(1) Factory-reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Pro-W/UA-G3-Pro-B, V01
Software Information
The software version can be checked at https://unifi.ui.com

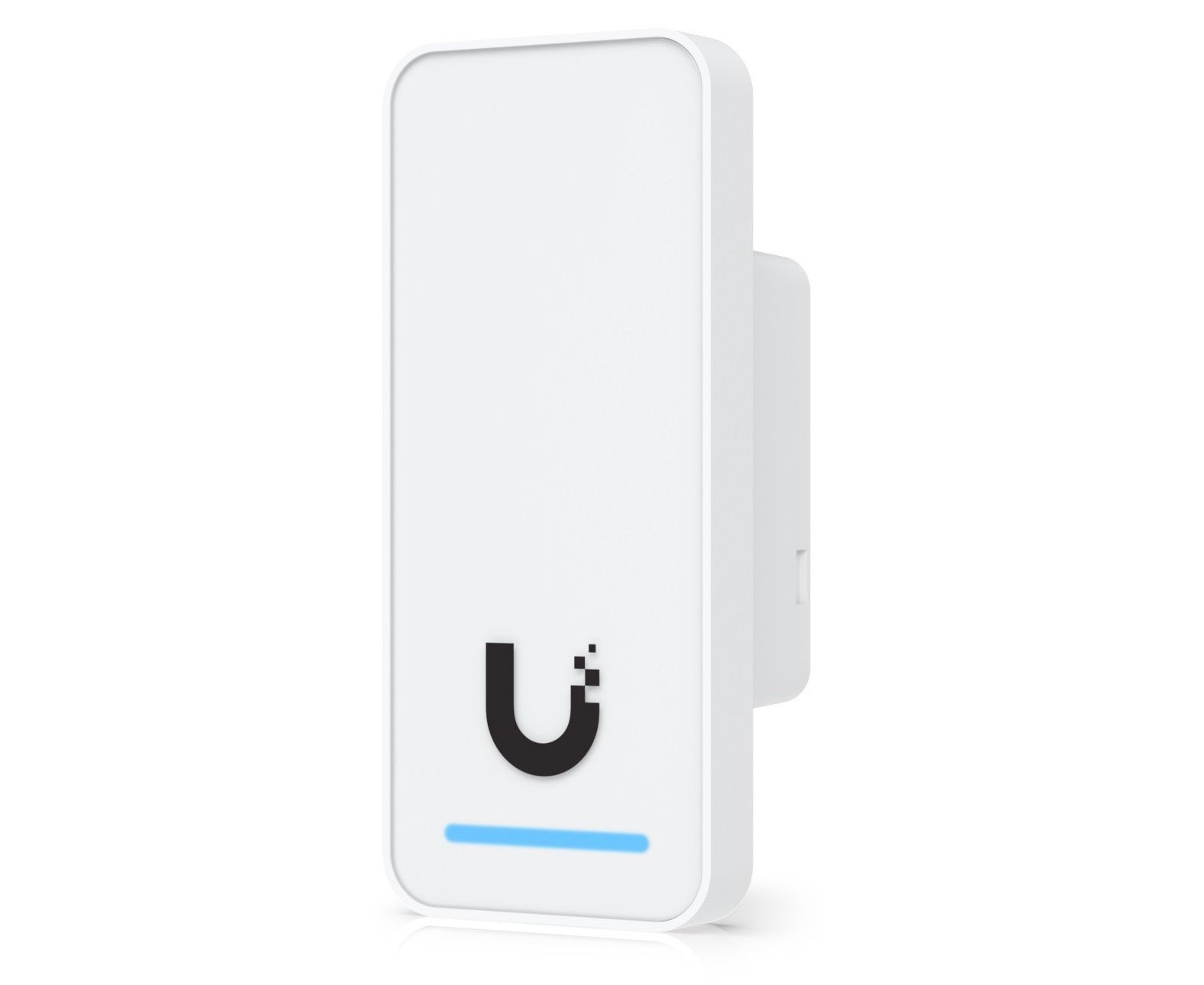

G3 Reader
Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access
Yes
Touch Pass
Yes
Mobile Unlock
Yes
Handwave Request to Exit
Yes
Weatherproofing
IP55
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Speaker
(1) 8 ohm, 0.7W
LEDs
R/G/B/W Learn More
Button
(1) Factory-reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3, V01
Software Information
The software version can be checked at https://unifi.ui.com

Pocket Keyfob
Dimensions
84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight
16 g (0.56 oz)
Enclosure Material
Polycarbonate, stainless steel, silicone rubber
Weatherproofing
IP54
Ambient Operating Humidity
10 to 90% noncondensing
Ambient Operating Temperature
-10 to 45° C (14 to 113° F)
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
Certification
CE
