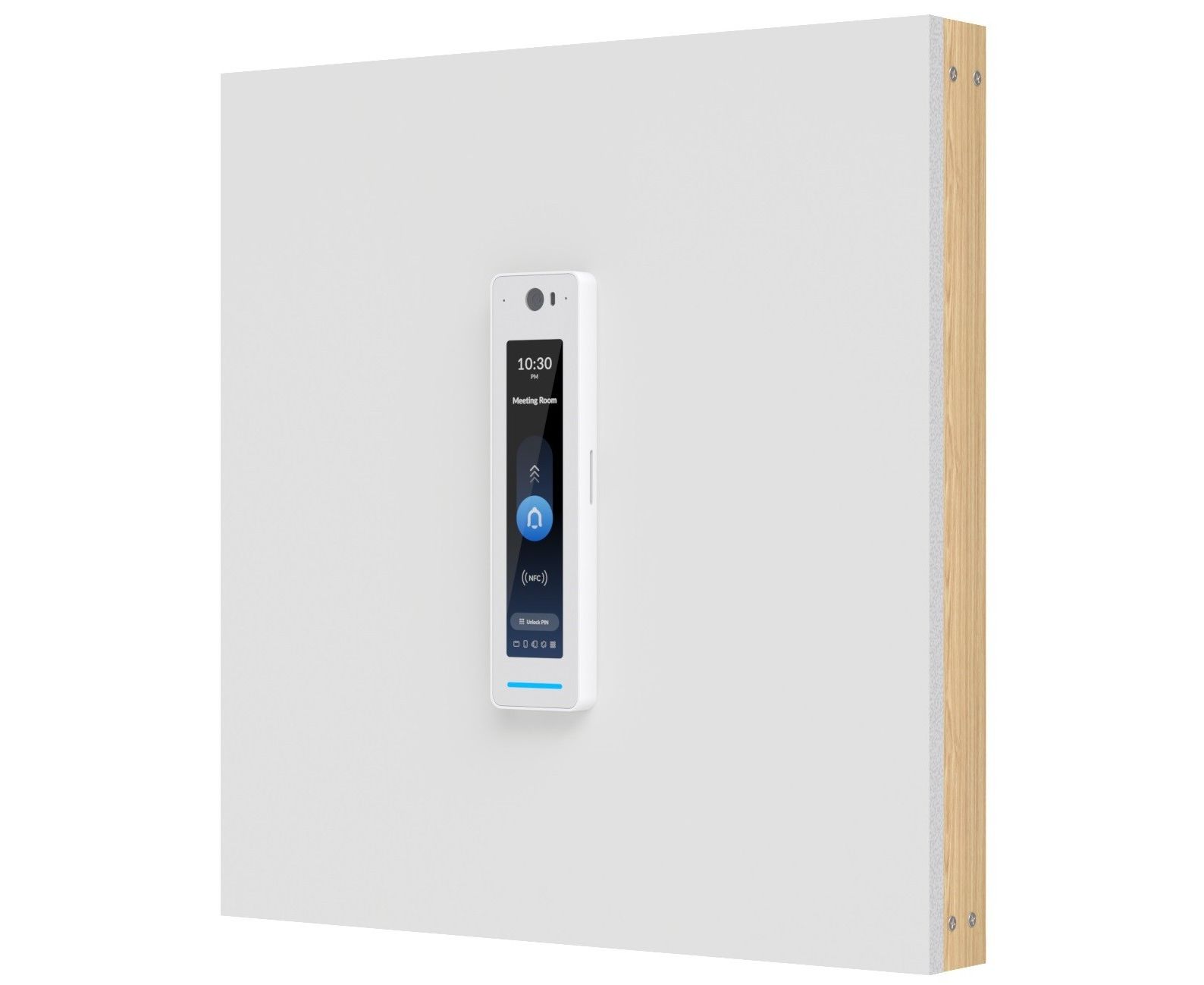

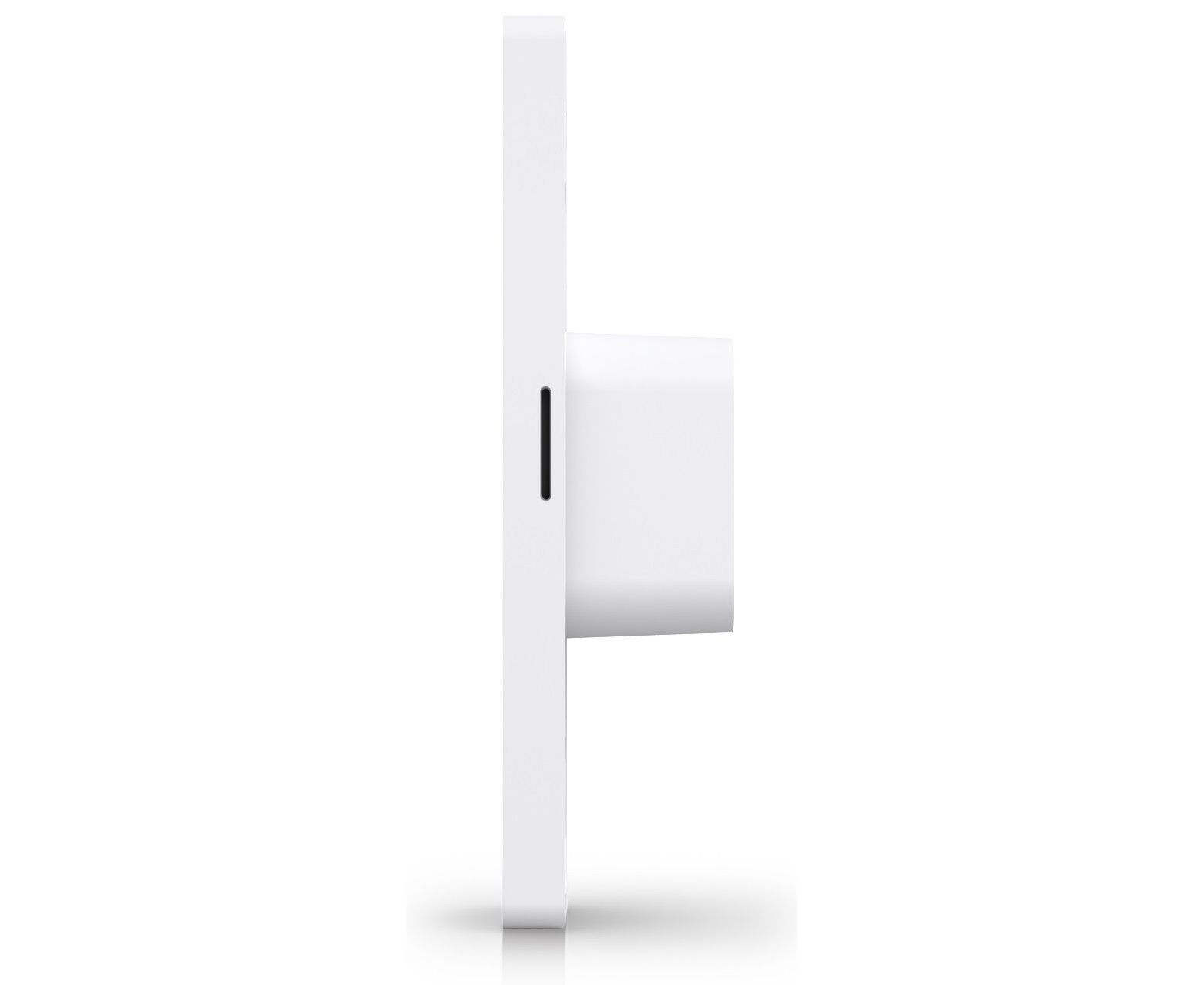

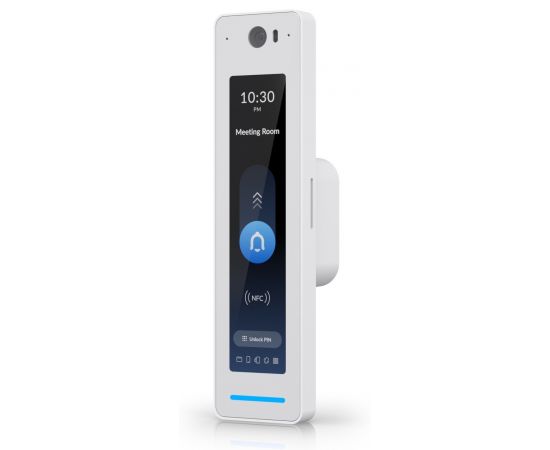

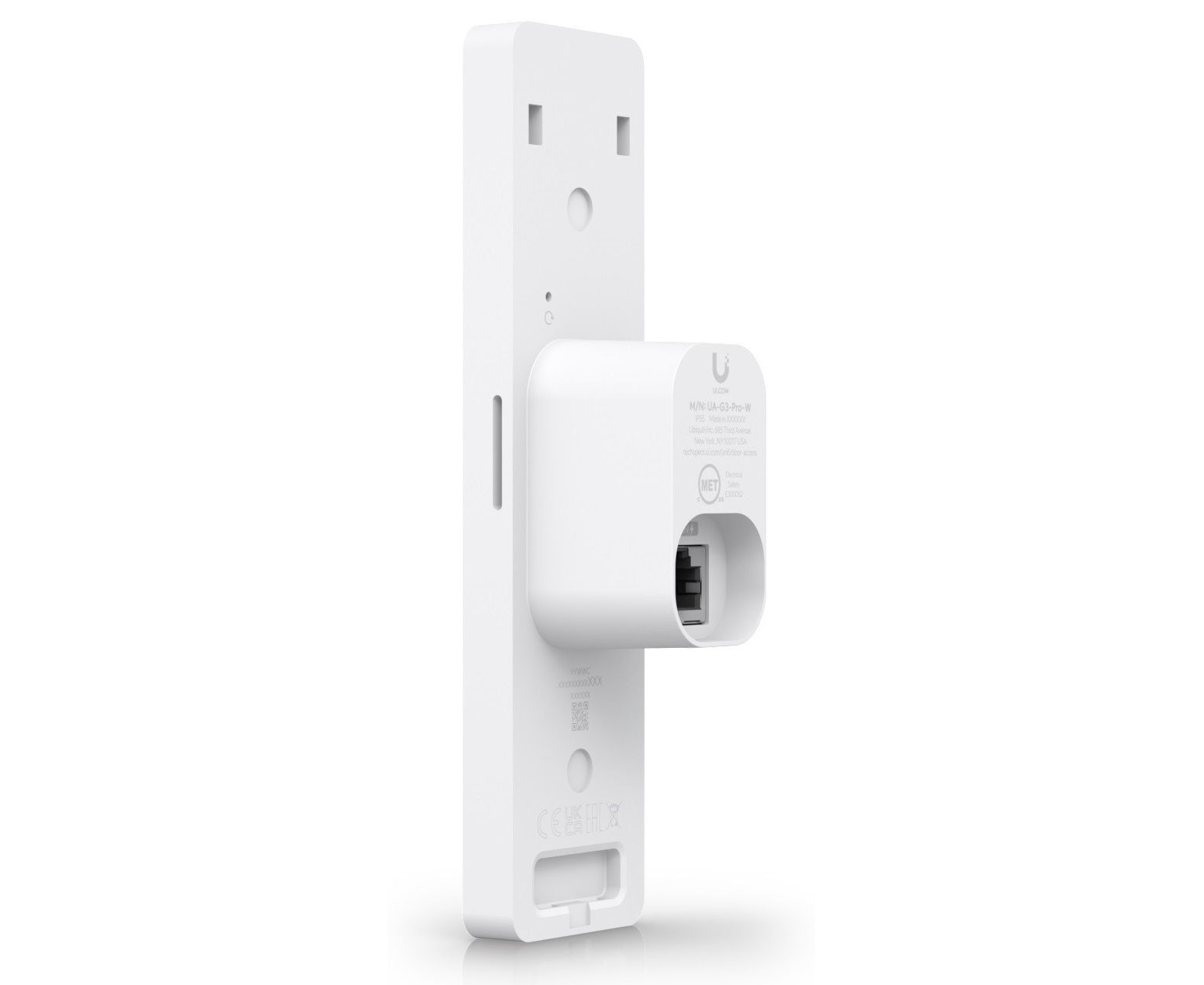

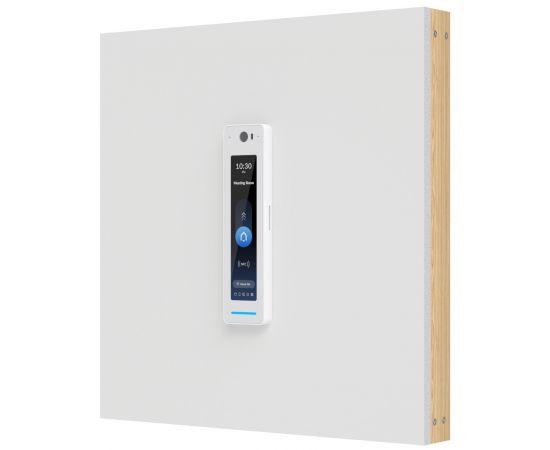

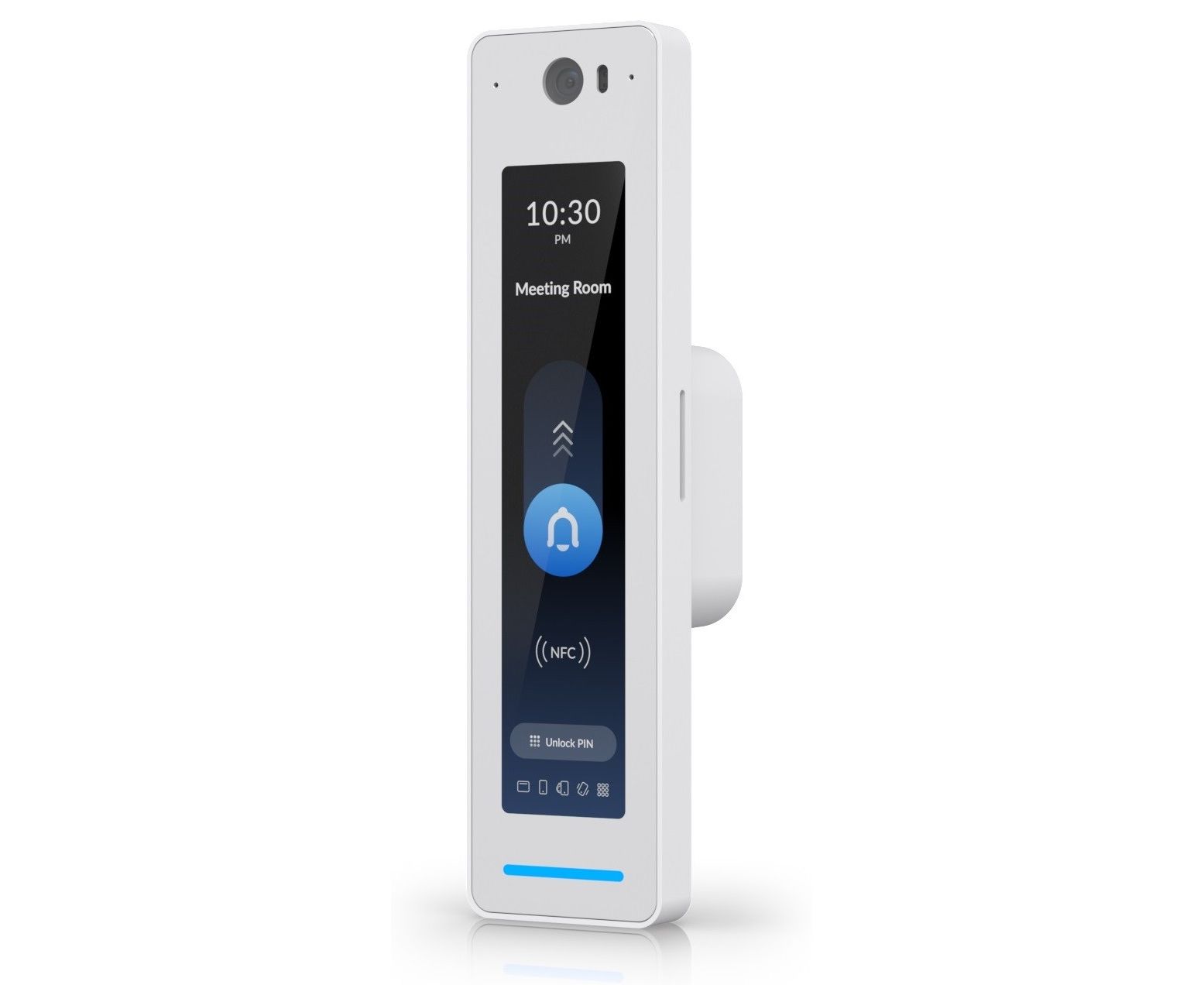

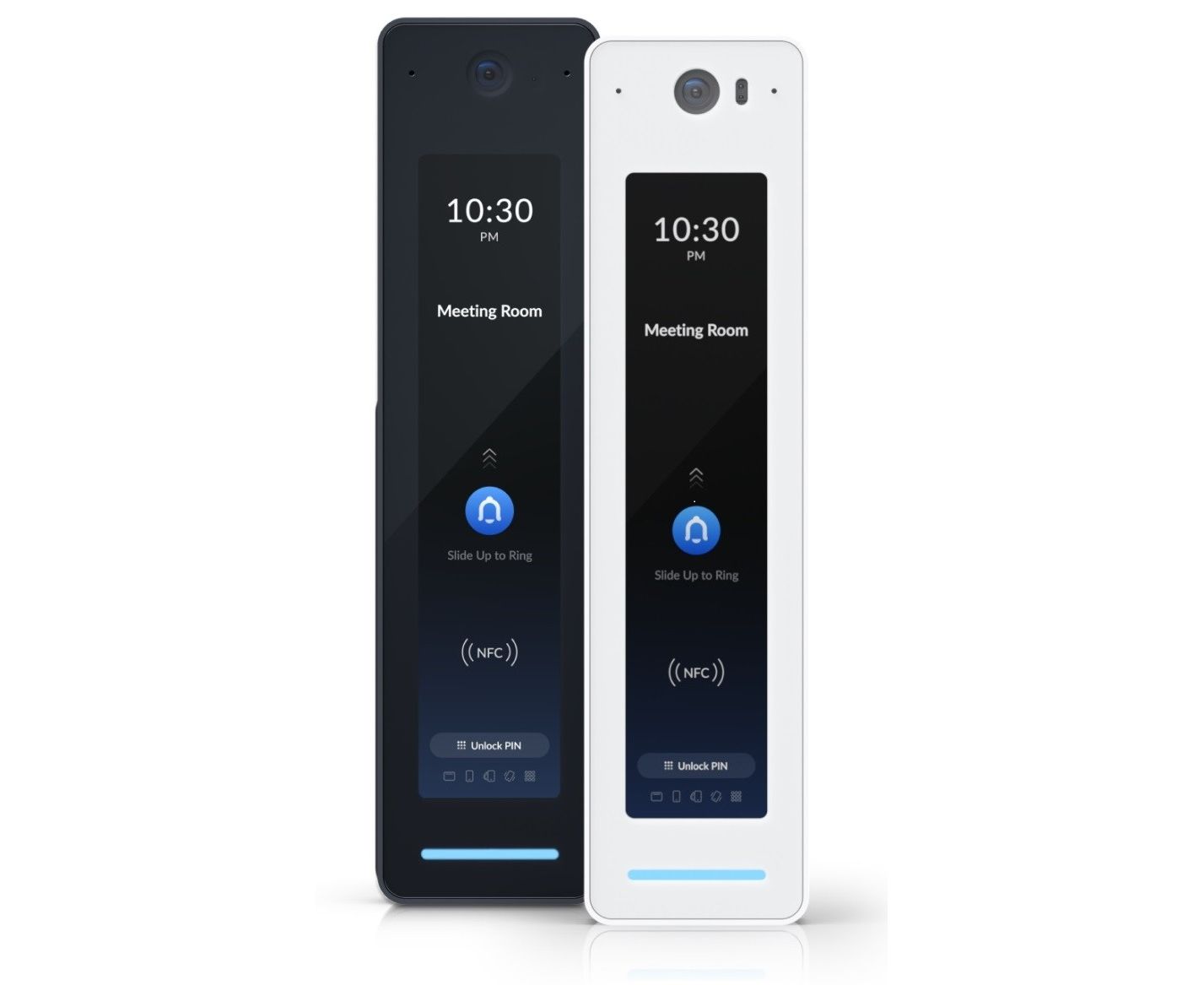

Ubiquiti UA-G3-Pro-W, G3 Reader Pro with Apple Touch Pass support, White
Κωδικός Cableworks: 1001.757

BrandUbiquiti MPNUA-G3-Pro-W

€467.79

χωρίς ΦΠΑ €377.25

Μη Διαθέσιμο

Ειδοποίηση όταν το προϊόν είναι ξανά διαθέσιμο

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Third-generation, indoor/outdoor NFC reader and intercom with Apple Touch Pass support.

_{Note. 10 free 1-year Apple Touch Passes included.}

Overview

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Integrated Camera

Yes

NFC Card & Keyfob Access

Yes

PIN Access

Yes

Touch Pass

Yes

Mobile Unlock

Yes

Two-Way Intercom & Doorbell Access

Yes

Weatherproofing

IP55

Mechanical

Weight

136 g (4.8 oz)

Enclosure Material

Polycarbonate, glass

Mount Material

Aluminum alloy

Mounting

Wall, gang-box mount (Included) Angle mount, junction box (Optional)

Hardware

Indoor and Outdoor Use

Yes

Ambient Operating Temperature

Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(1) GbE RJ45 port

Connectivity

BLE 4.2 NFC

Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

Supported Voltage Range

48V DC

ESD/EMP Protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Display

120 mm (4.7") diagonal

Touch Screen Technology

Capacitive touch

Display Luminance

480 nits (Typical)

Screen Orientation

Portrait

Resolution

1280 x 286 px

Microphone

Yes

Speaker

Yes

LEDs

R/G/B/W/Amber Learn More

Button

(1) Factory-reset

NFC Frequency

13.56 MHz

NFC Read Range

< 30 mm (1.18'')

NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC,UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G3-Pro-W/UA-G3-Pro-B, V01

Software

Management Application

Access

Software Information

The software version can be checked at https://unifi.ui.com
