Ubiquiti UA-G2-SK-Pro, UniFi Access G2 Starter Kit Professional (1x UA-Hub, 1x UA-G2-Pro, 1x UA-G2, 2x UA-Pocket)
Κωδικός Cableworks: 1001.584

BrandUbiquiti MPN UA-G2-SK-Pro ΕΓΓΥΗΣΗ24 μήνες
€790.00
χωρίς ΦΠΑ €637.10
Σε Απόθεμα
+ −
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

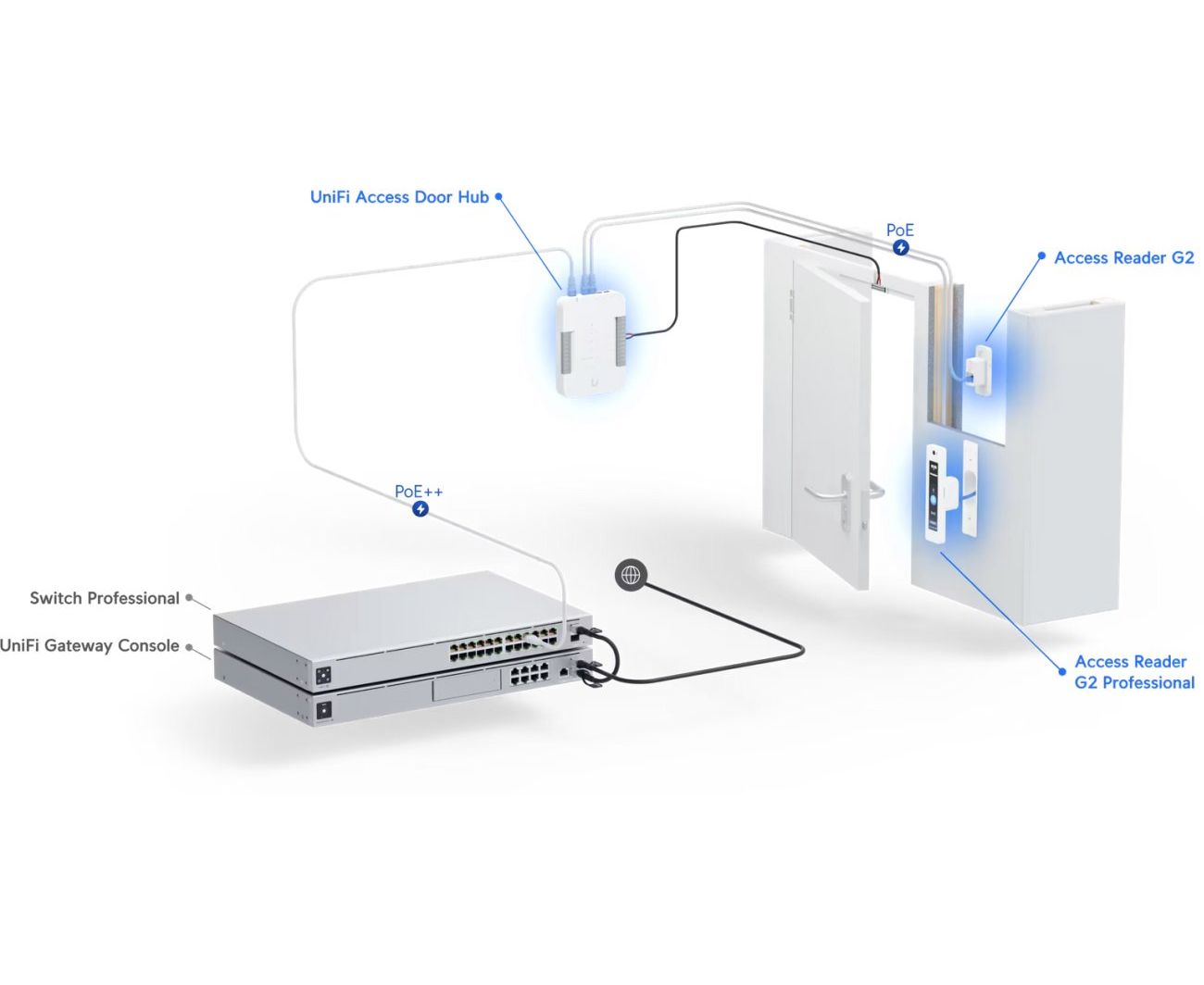

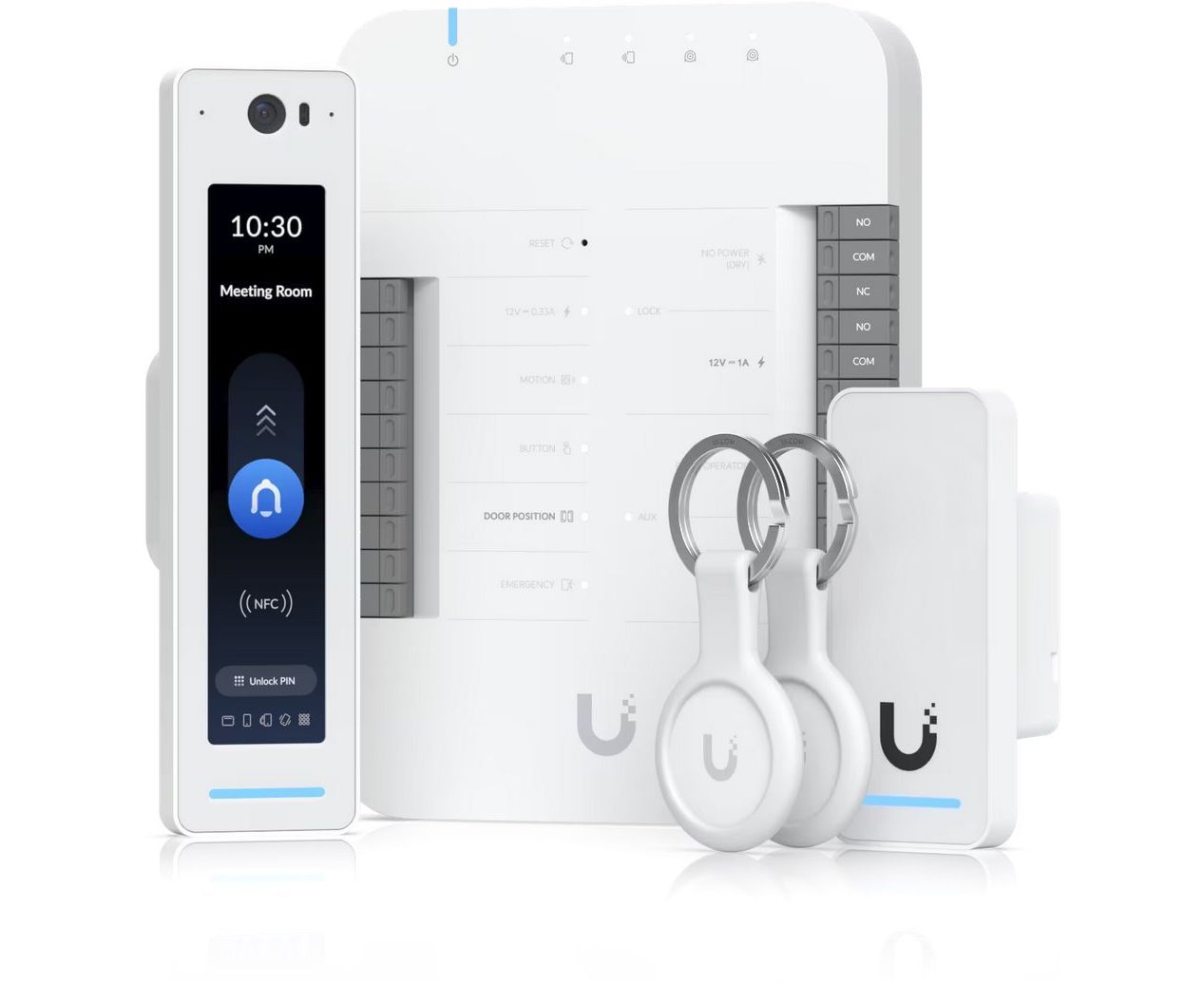

Hit the ground running on Access with a pro experience for a door, featuring two readers.

(1) UniFi Access Door Hub

(1) Access Reader G2 Professional

(1) Access Reader G2 for door exit, or entrance for addition door (second Hub required)

(2) UniFi Access pocket key fob

UA-Hub-Door
Mechanical
Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Weight 363 g (12.8 oz)
Enclosure material Polycarbonate
Mounting material Polycarbonate
Hardware
Networking interface (5) 10/100/1000 Base-T


Power method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU
Max. power consumption Without PoE output: 30W
With PoE output: 50W
PoE input 50V DC, 1A
PoE output PoE passthrough, (4) PoE, 50V DC, total 20W
Button (1) Factory-reset
LEDs System: white/blue
Output relays: white
Digital input Request to exit/request to enter/remote release/door position sensor
Dry output relay Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered output relay Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
Operating environment Indoor use only
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 5 to 95% noncondensing
UL 294 level Destructive attack: Level I
Line security:  Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: 1
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-Hub-Door002, V01
Wiring Information
Typical installation (Shielded)
DC power input Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)
Door position switch Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)
Request to exit Belden 8750 18 AWG 2 (152.5 m/500 ft)
Wiring gauge requirements (AWG)
Total length to device Output load current at 12V DC
100mA 250mA 500mA 1A
6.1 m (20 ft) 22 22 22 18
15.2 m (50 ft) 22 22 22 18
30.5 m (100 ft) 22 22 18 18
PoE cabling requirements The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable.
LEDs
PoE in Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
PoE out Off: Not connected or no data link
Steady blue: Connected and data link on

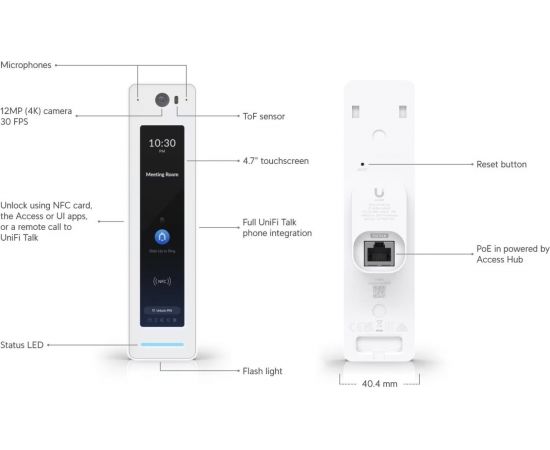

UA-G2-Pro
Mechanical
Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Weight 136 g (4.8 oz)
Enclosure material Polycarbonate, glass
Mount material Aluminum alloy
Mounting Wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) 10/100/1,000 MbE RJ45 port
Connectivity BLE 4.2
NFC
Power method PoE
Supported voltage range 48V DC
Max. power consumption 6W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensor ToF sensor
Camera 4000 x 3000, 12 MP, 30 FPS
Microphone Yes
Speaker (1) 4 ohm, 1.5W
LEDs R/G/B/W
Flash
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 5 to 90% noncondensing
Certifications CE, FCC, IC

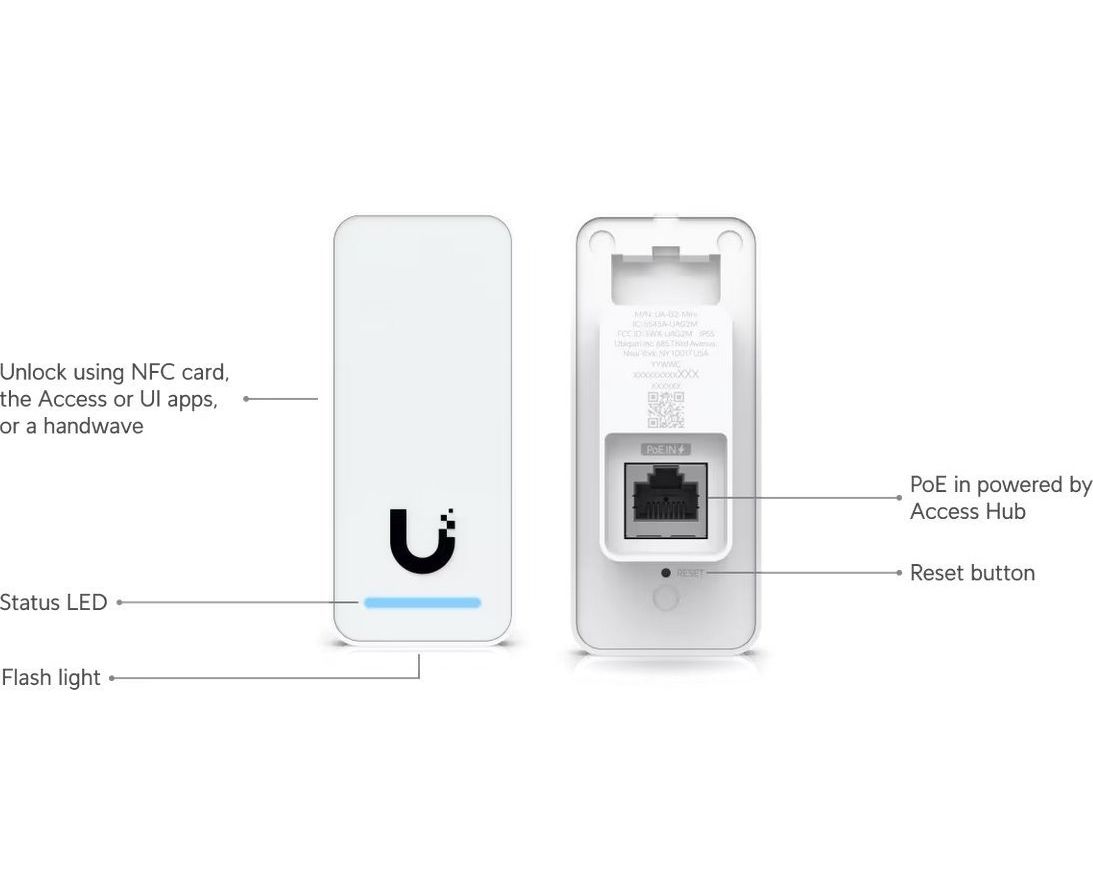

UA-G2
Mechanical
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight 82 g (2.9 oz)
Enclosure material Polycarbonate, glass
Mounting In wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
Power method PoE
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs R/G/B/W
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature -30 to 45° C (-22 to 113° F)
Operating humidity 5 to 90% noncondensing
Certifications CE, FCC, IC
UA-Pocket
Mechanical
Dimensions 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight 16 g (0.56 oz)
Enclosure material Polycarbonate, stainless steel
Weatherproofing IP54
Hardware
NFC frequency 13.56 MHz
NFC technology ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 10 to 90% noncondensing
Certification CE
