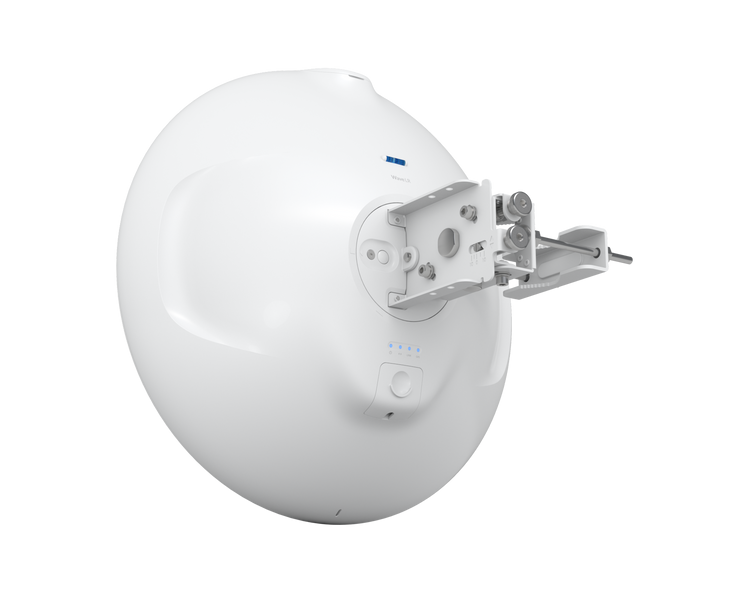

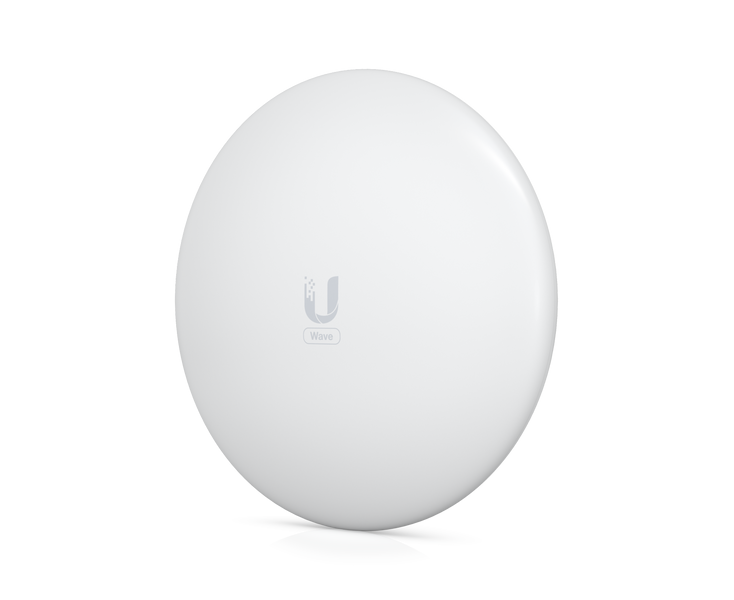

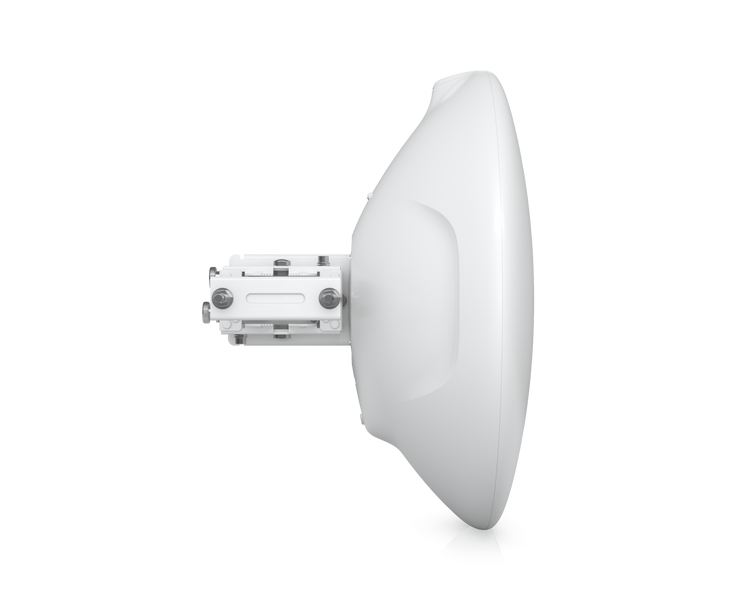

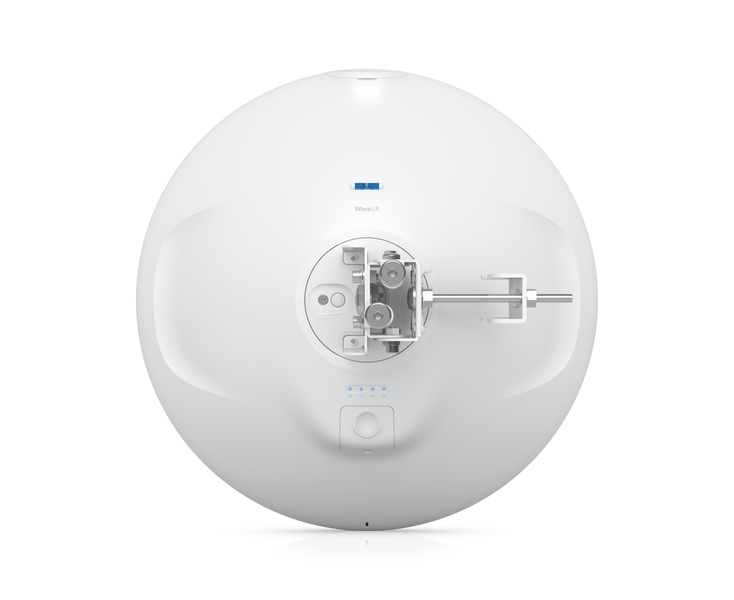

Ubiquiti UISP Wave-LR, 60GHz PtMP station powered by Wave Technology, 5GHz Backup Radio, up to 1Gbps Full Duplex @ 8km, (needs Wave AP as Basestation), IPX6
Κωδικός Cableworks: 1001.538

BrandUbiquiti MPNWave-LR ΕΓΓΥΗΣΗ24 μήνες

€500.01

χωρίς ΦΠΑ €403.23

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 932 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

60 GHz PtMP station powered by Wave Technology.

Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Features:

5 GHz backup radio
Link range: up to 8 km
Router mode support
Integrated GPS antenna
Link planning support via ISP Design Center

Mechanical
Dimensions	Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
Weight	Without mount: 2.59 kg (5.7 lb) With mount: 3.79 kg (8.4 lb)
Enclosure material	UV stabilized plastic
Mount material	Galvanized steel
Pole mount diameter	25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading	286 N at 200 km/h (64.3 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Processor	Dual ARM® Cortex®-A53 cores at 1 GHz
Memory	DDR3L 512 MB
Networking interface	(1) GbE RJ45 port
Max. power consumption	18W
Power method	48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply	48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch
GPS	Yes
Button	Factory reset
LEDs	Power, Ethernet, GPS, link
Operating temperature	-40 to 60° C (-40 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software
OS	airOS®
Operating mode	PtMP station
Ubiquiti specific features	Wave AI, discovery protocol
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test
Network	Bridge/Router mode
Software management	Bluetooth management for easy setup over UISP app WEB UI
Minimum software requirements	Any modern web browser/iOS™ or Android™ based smartphone
System
Total throughput	2 Gbps (1 Gbps duplex)
Maximum range	8+ km
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57 to 71 GHz *Depends on regulatory region.
Channel bandwidth	2160, 1080 MHz
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation	16QAM, QPSK
Antenna gain	46 dBi
Azimuth and elevation beamwidth	3 dB: 0.8° 6 dB: 1.1°
Back-Up RF
WiFi standard	802.11ax (WiFi 6)
Operating frequency* US/CA Worldwide	U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain	22 dBi
Polarization	Dual-linear
Cross-pol isolation	20 dB
Azimuth and elevation beamwidth	3 dB: 8 to 10°
LEDs
Power	Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet	Flashing blue: Ethernet traffic detected
GPS	Blue: receiving at least (4) GPS satellite signal
Links	White: 5GHz link Blue: 60GHz link
