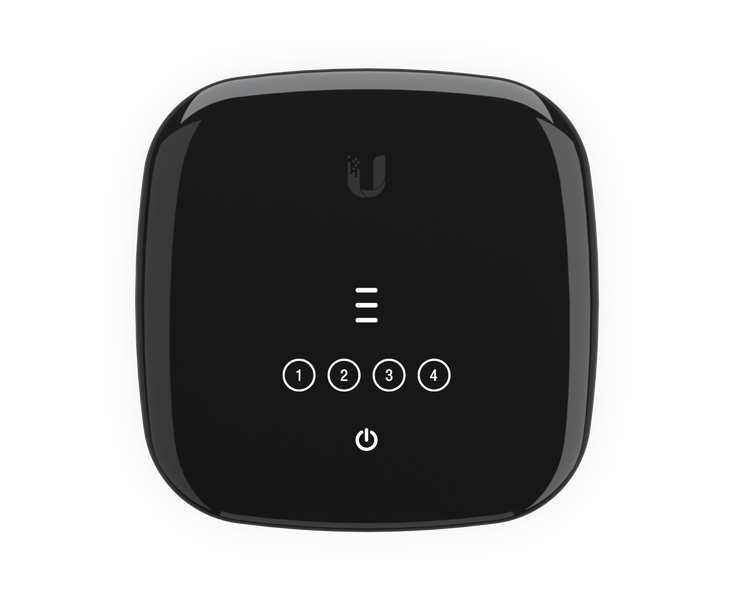

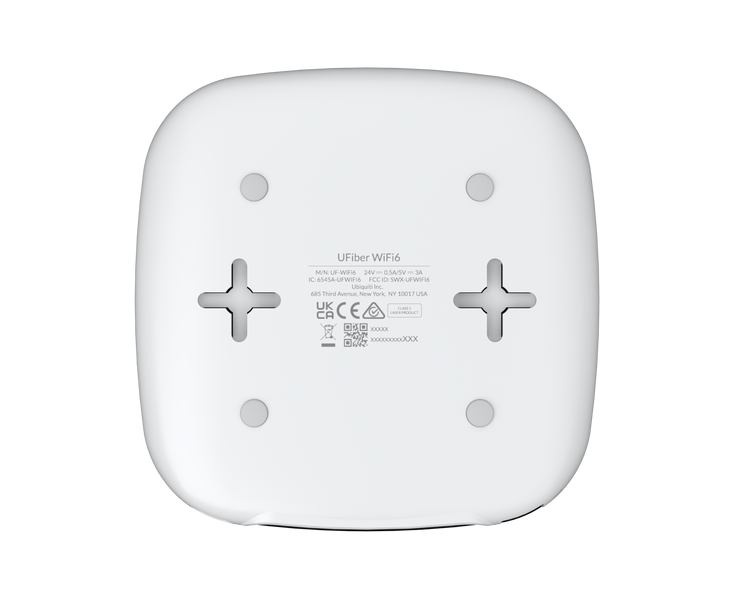

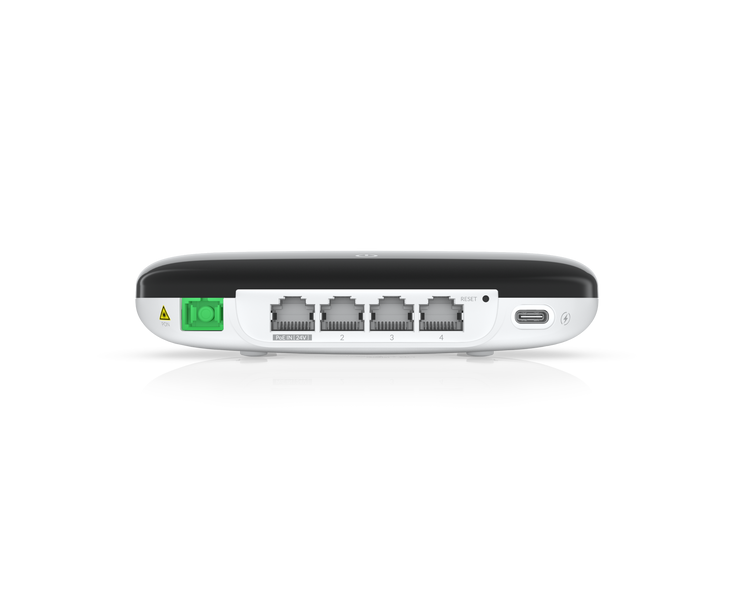

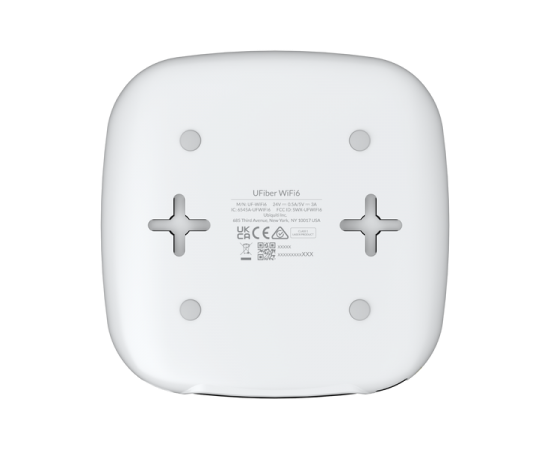

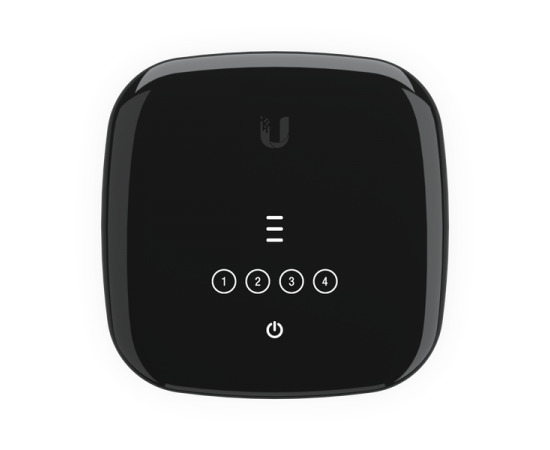

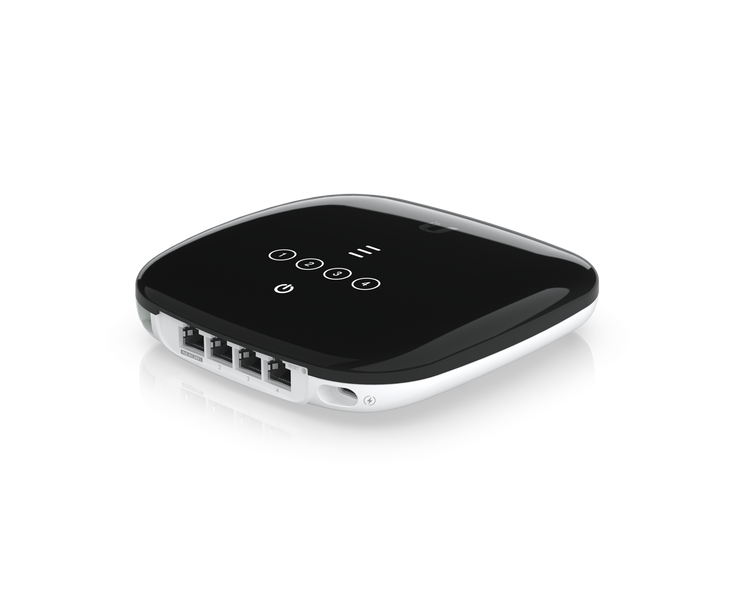

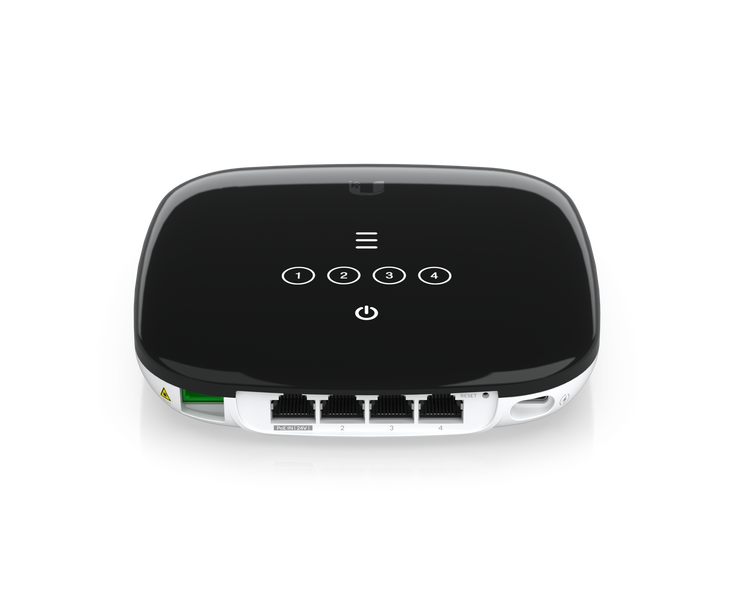

Ubiquiti UF-Wifi6, WiFi6 GPON CPE (SC/APC Port) Wifi Router, 4xGigabit, 2.4GHz & 5GHz
Κωδικός Cableworks: 1001.473

BrandUbiquiti MPNUF-Wifi6 ΕΓΓΥΗΣΗ24 μήνες

€135.00

χωρίς ΦΠΑ €108.87

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 3,411 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

High-performance WiFi 6 GPON CPE.

The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.

Features:

2x2, high-efficiency WiFi 6
2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate
5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate
2.4 Gbps max downstream line rate
1.2 Gbps max upstream line rate
Establishes GPON links up to 20 km
Powerful Layer 2/3 management features
(1) GPON WAN port
(4) GbE RJ45 LAN ports
Powered with the included power adapter or passive PoE
Internal WiFi 6 (802.11ax) antennas

Managed with the UISP application (previously UNMS): Version 1.4.0-beta.8 and later

Mechanical
Dimensions	140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25")
Weight	415 g (0.99 lb)
Enclosure material	UV-stabilized polycarbonate
Hardware
Processor	Dual-core MIPS 1004 Kc at 900 MHz
Memory	256 MB RAM
Total non-blocking line rate	2.488 Gbps downstream 1.244 Gbps upstream
Networking interfaces	(1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11ax 5/2.4 GHz channels
PoE interface	(1) PoE in, 24V passive PoE
Management interface	Ethernet in-band PON
Button	Factory-reset
Max. power consumption	11W
Power method	USB-C 5VDC, 3A 24V passive PoE, 0.5A
Power supply	5VDC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range	10 to 30VDC passive PoE 5VDC adapter
Normal TX range of optical module	0.5 to 5 dBm
Normal RX range of optical module	-8 to -28 dBm
Max. WiFi TX power 2.4 Ghz 5 Ghz	20 dBm 20 dBm
MIMO 2.4 Ghz 5 Ghz	2 x 2 2 x 2
Max. WiFi radio rate 2.4 Ghz 5 Ghz	300 Mbps 1.2 Gbps
Antenna Gain 2.4 GHz 5 GHz	1 dBi 3 dBi
Operating temperature	-15 to 45° C (5 to 113° F)
Operating humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
LEDs
PON status	(3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x orange + 2x white: signal too strong (>= -8 db) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: No authority
Ethernet	Steady white: link up Blinking white: activity OFF: link down
Power	White: ON
Software
Mode	ONU/ONT layer 2/3 Ethernet switch
Services	Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
Utilities	Dashboard, monitoring, alarms, and logs
Other	Remote reset, remote reboot, remote firmware upgrade, VLAN support
Security	GEM Port Encryption
Ubiquiti specific features	UBNT Discovery and UISP Mobile app
WiFi standards	802.11 b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
Minimum software requirements	Any modern web browser (Google Chrome™ recommended)
Fiber
Operating wavelength	1310 nm TX/1490 nm RX
Optical interface downstream nominal bit rate	2488.32 Mbit/s
Optical interface upstream nominal bit rate	1244.16 Mbit/s
Physical reach	20 km
Supported Data Rates
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6)	8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
