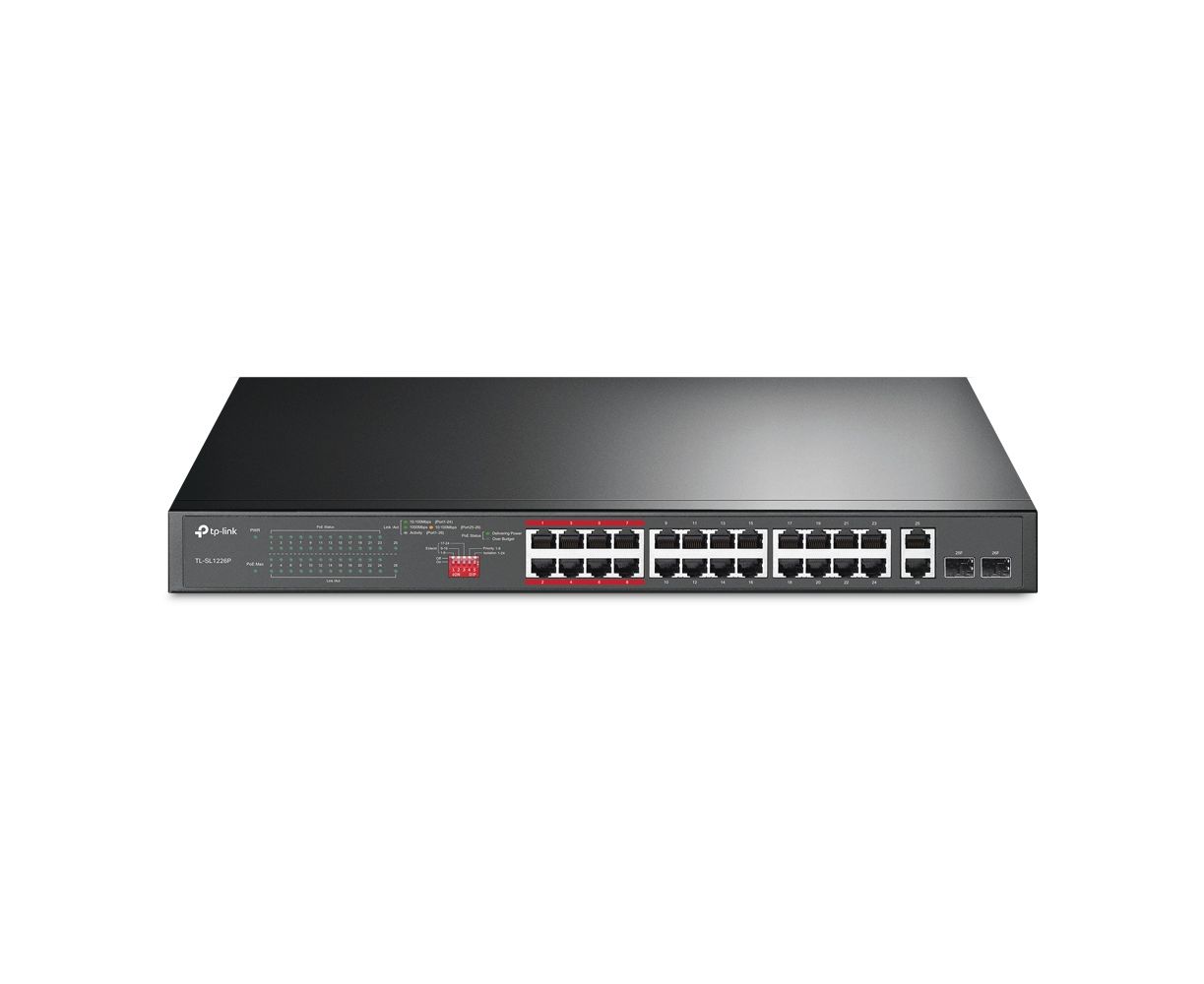

TP-Link TL-SL1226P v1.0, 24xPoE Ethernet, 2xGigabit Combo, 2xSFP Combo, 250W PoE Budget, High PoE, 250m PoE@10Mbps
Κωδικός Cableworks: 1004.270

BrandTP-LINK MPNTL-SL1226P v1.0 ΕΓΓΥΗΣΗLimited Lifetime Lan Ports26 Managed / UnmanagedUnmanaged Port SpeedFast Ethernet (100Mbps), Gigabit Ethernet (1Gbps) Rackmount PoE Out Ports24 PoE ProtocolPoE 802.3af/at (30W), PoE 802.3af/at @ 250m (CCTV Mode) SFP

€279.91

χωρίς ΦΠΑ €225.73

Μη Διαθέσιμο

Ειδοποίηση όταν το προϊόν είναι ξανά διαθέσιμο

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 351 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

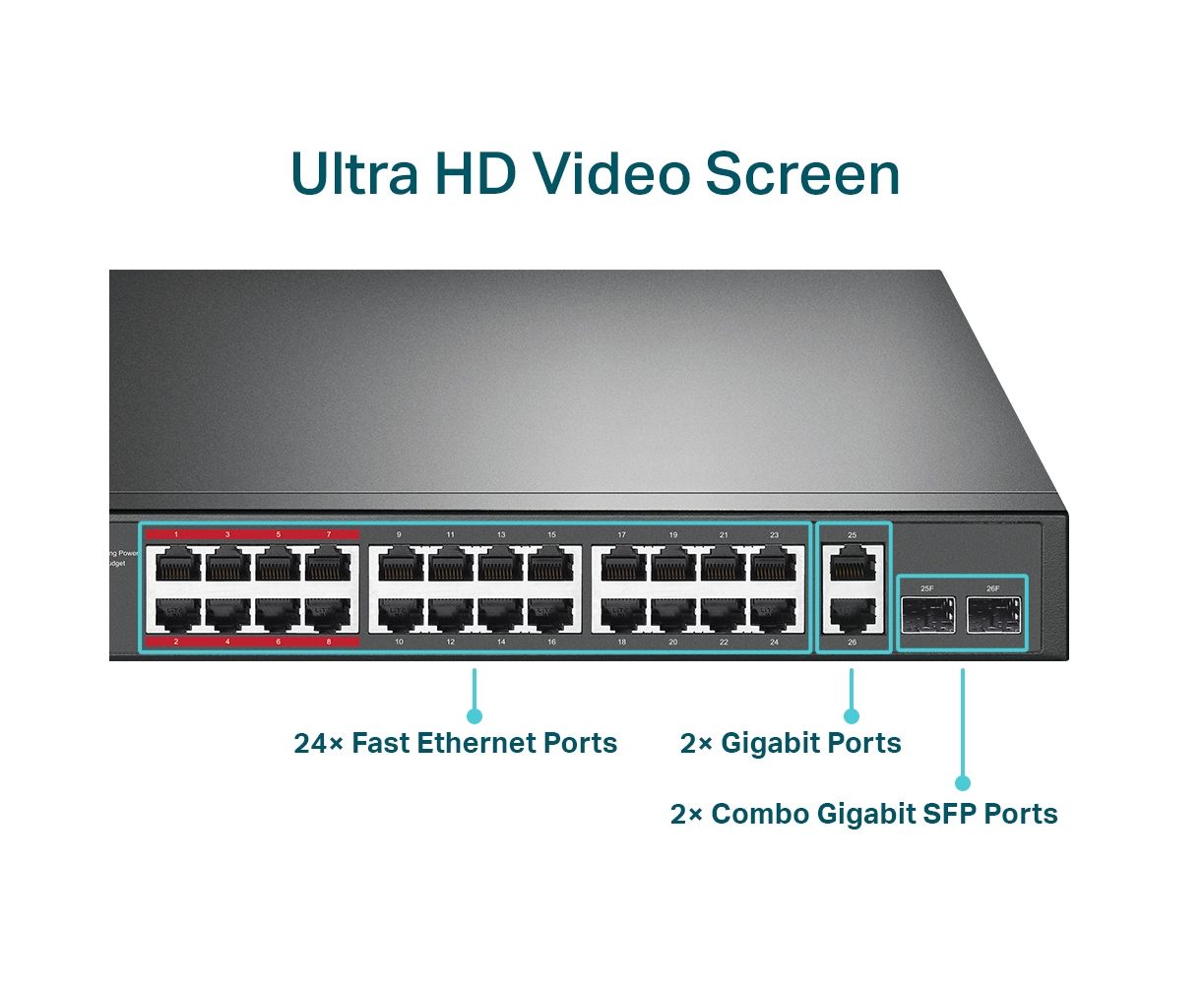

24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

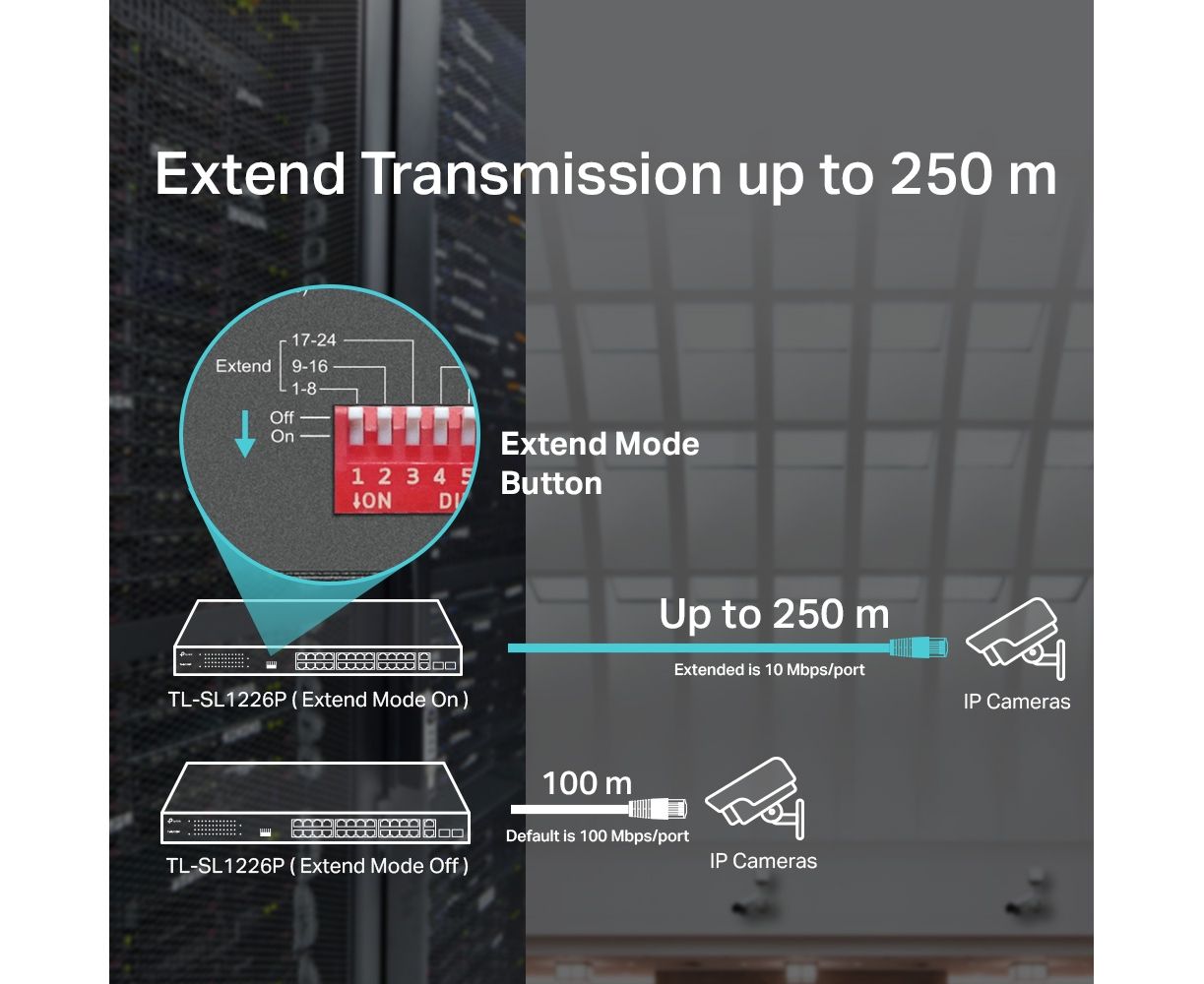

Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system

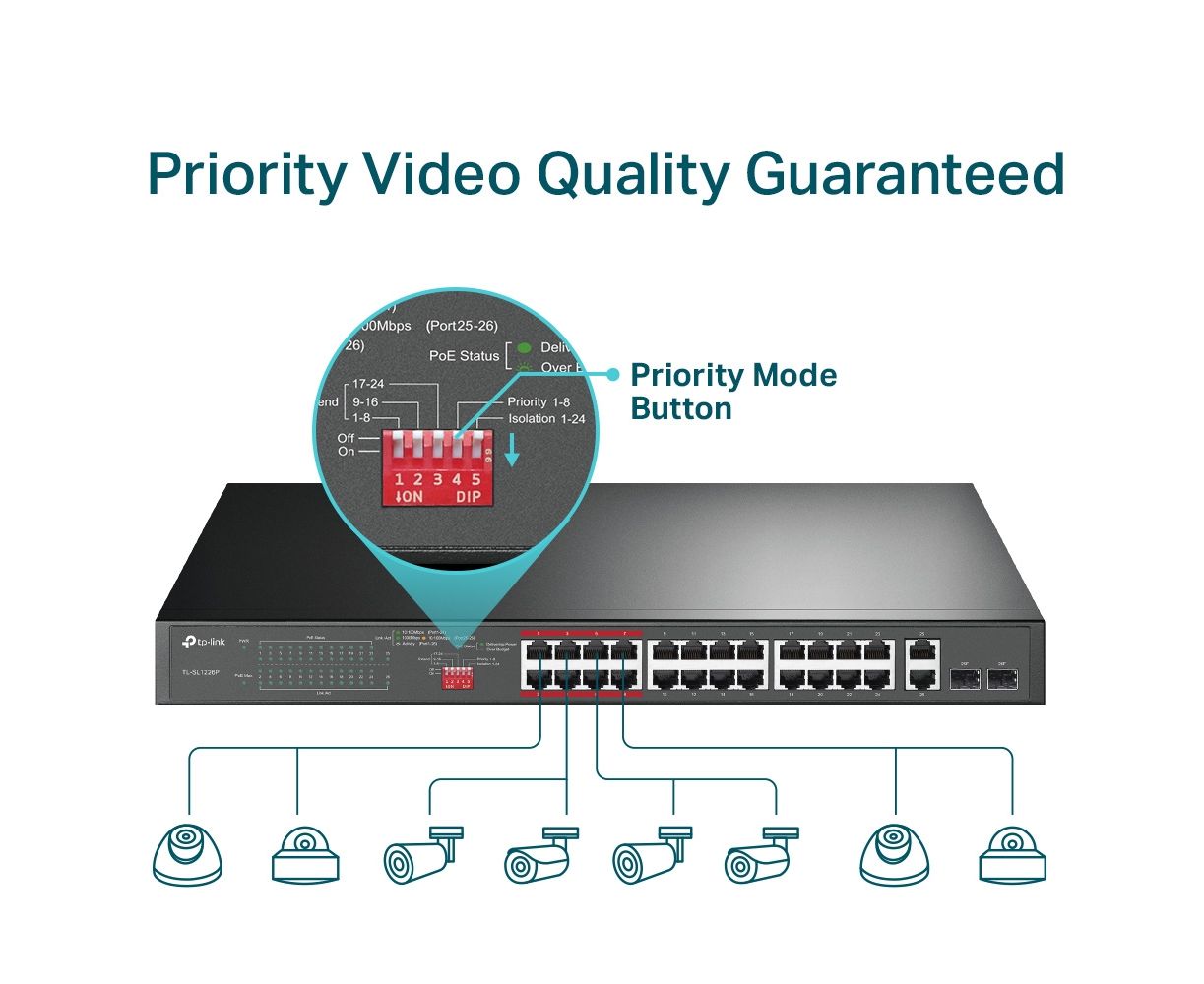

Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
Isolation Mode allows one-click client traffic separation for higher security and performance

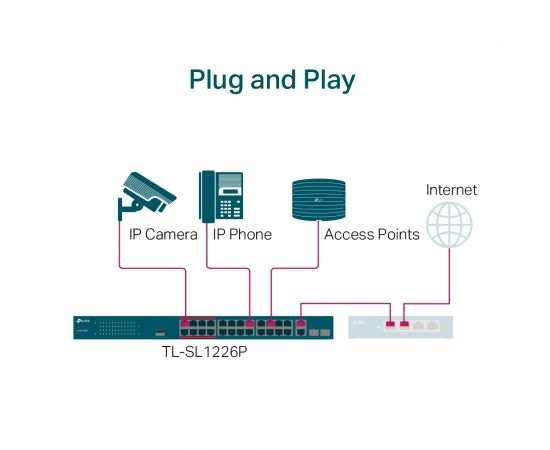

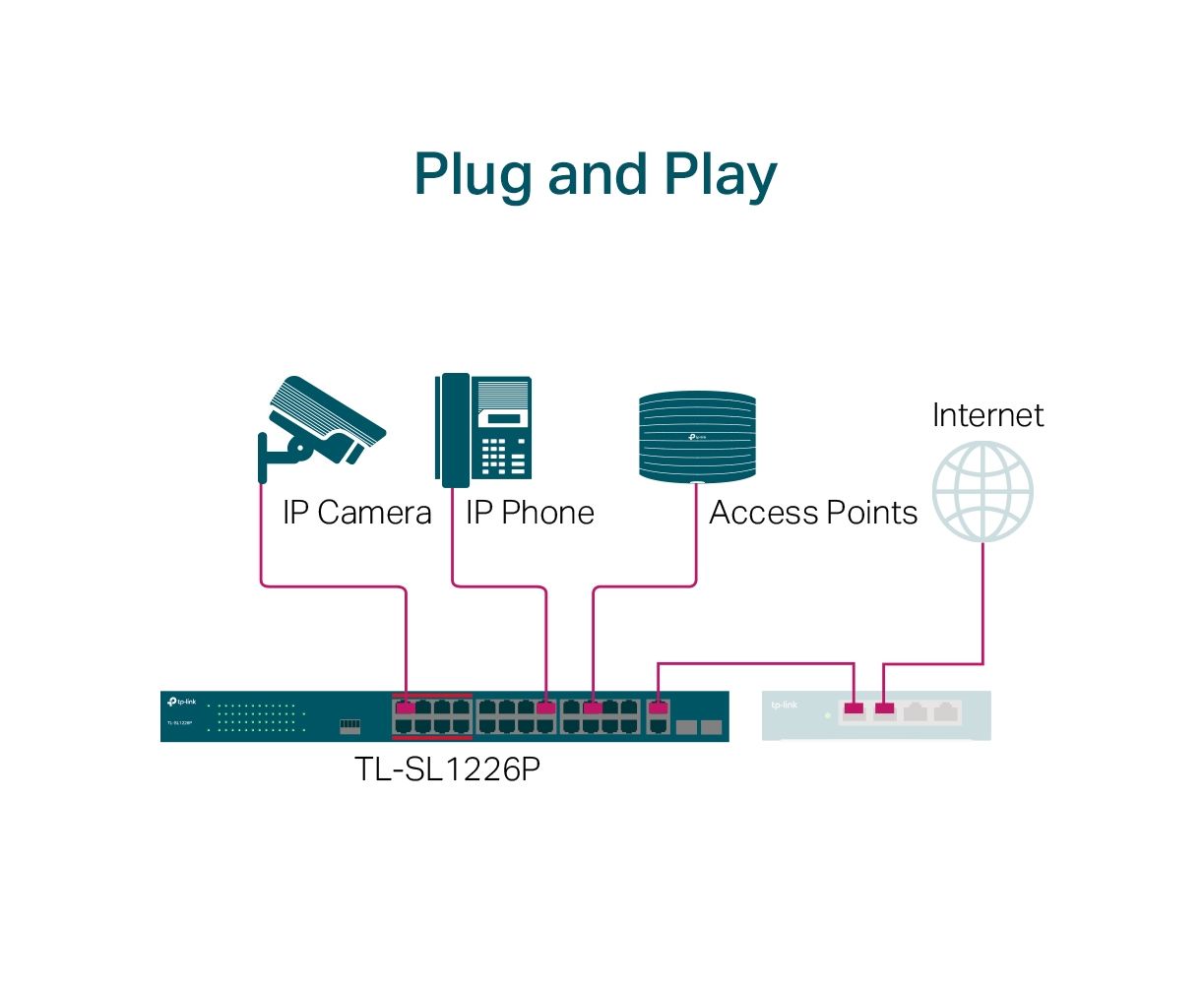

Plug and play, with no configuration and installation needed

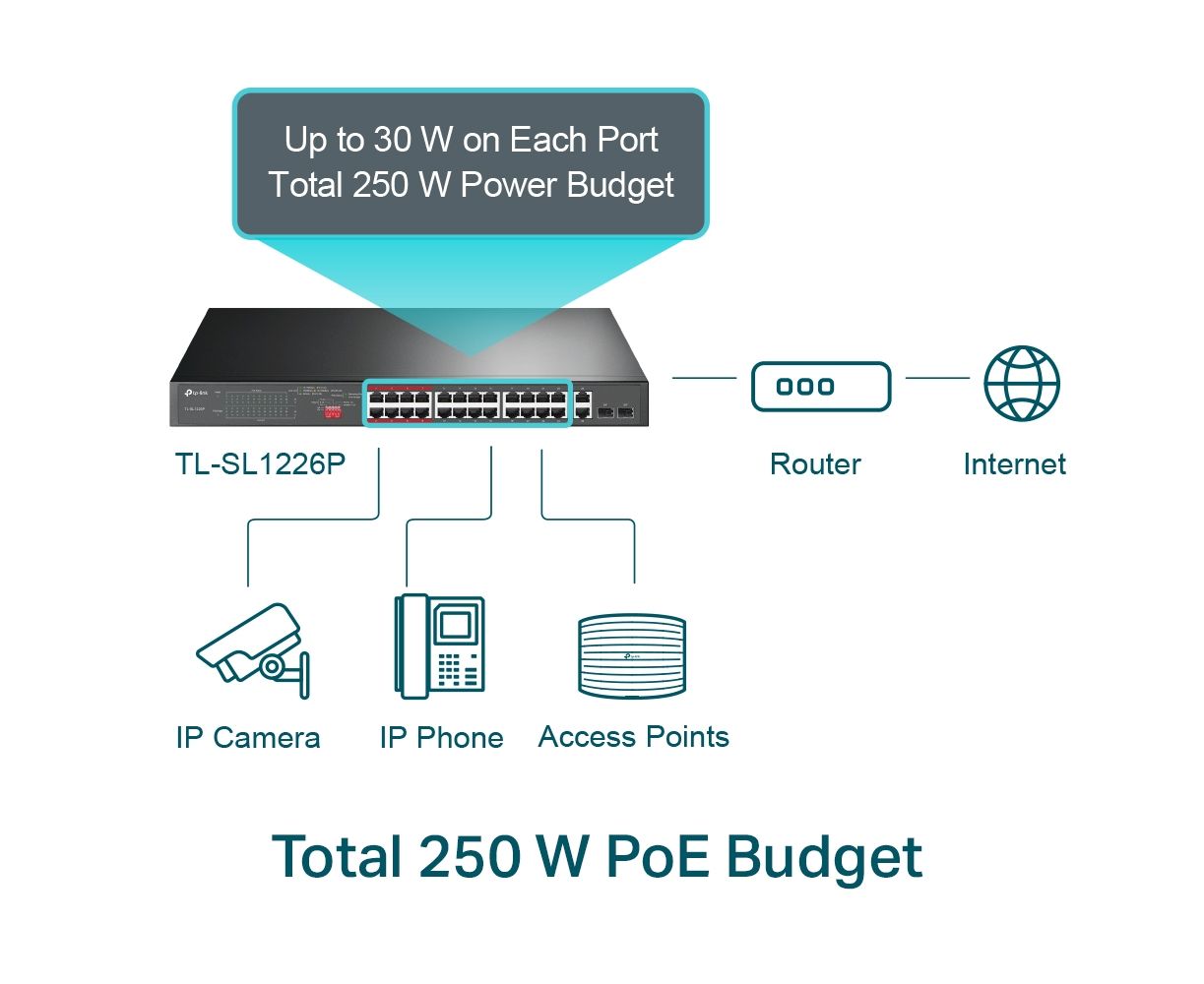

Dedicated 24-Port PoE+ Switch forWide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Dedicated Design for IP Surveillance—Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

HARDWARE FEATURES
Interface	24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100-240 VAC, 50/60 Hz
Backup Bandwidth	8.8 Gbps
Packet Forwarding Rate	6.5472 Mpps
PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W
Mac Address Table	8 K
Jumbo Frame	10 KB
Switching Capacity	8.8 Gbps
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption	18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation	62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected)

SOFTWARE FEATURES
Advanced Features	Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control
Transmission Method	Store-And-Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SL1226P Power Cable Installation Guide Two mounting brackets and the fittings
Environment	Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing
