TP-Link EAP235-Wall v1.0, 4dBi, 21dBm, 300Mbps, 2x2 @ 2.4GHz & 4dBi, 21dBm, 867Mbps, 2x2 @ 5GHz, 4xGigabit, 802.3af/at, 1x PoE OUT
Κωδικός Cableworks: 1004.293

BrandTP-LINK MPNEAP235-Wall v1.0 ΕΓΓΥΗΣΗLimited Lifetime Lan Ports4 Port SpeedGigabit Ethernet (1Gbps) Device TypeAccess Point PoE Out Ports1 PoE ProtocolPoE 802.3af/at (30W) Wifi2.4GHz, 5GHz

€69.90

χωρίς ΦΠΑ €56.37

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 12,428 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

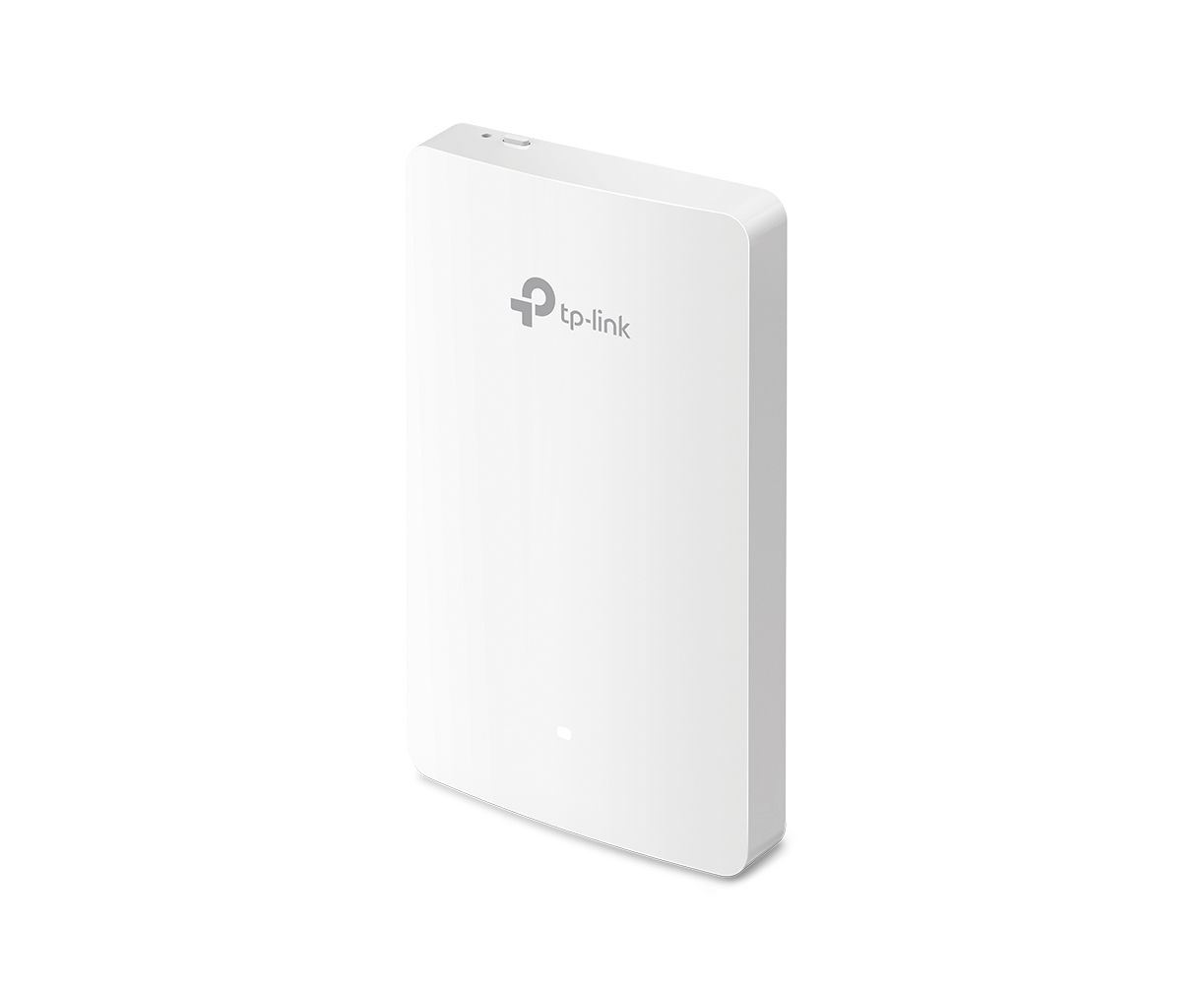

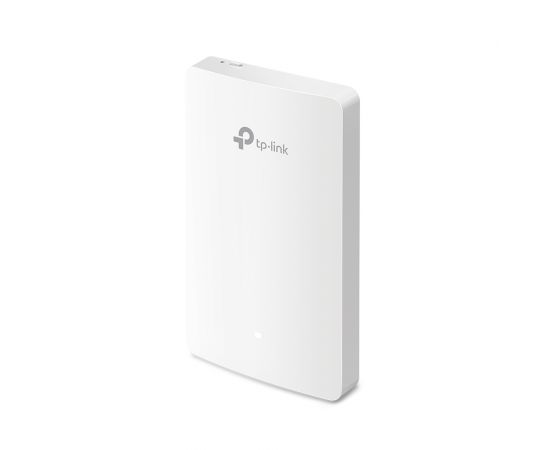

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

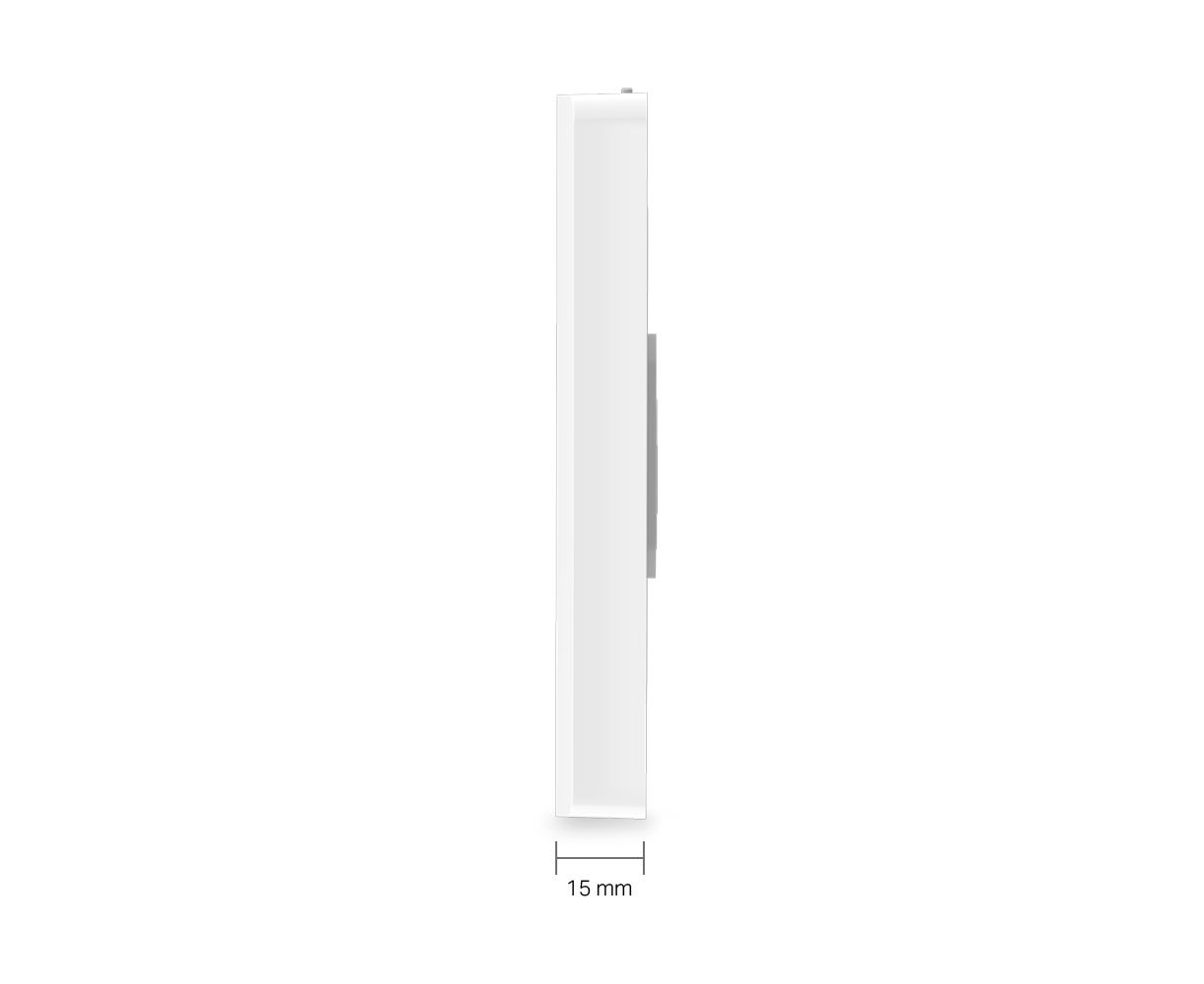

Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments
Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment

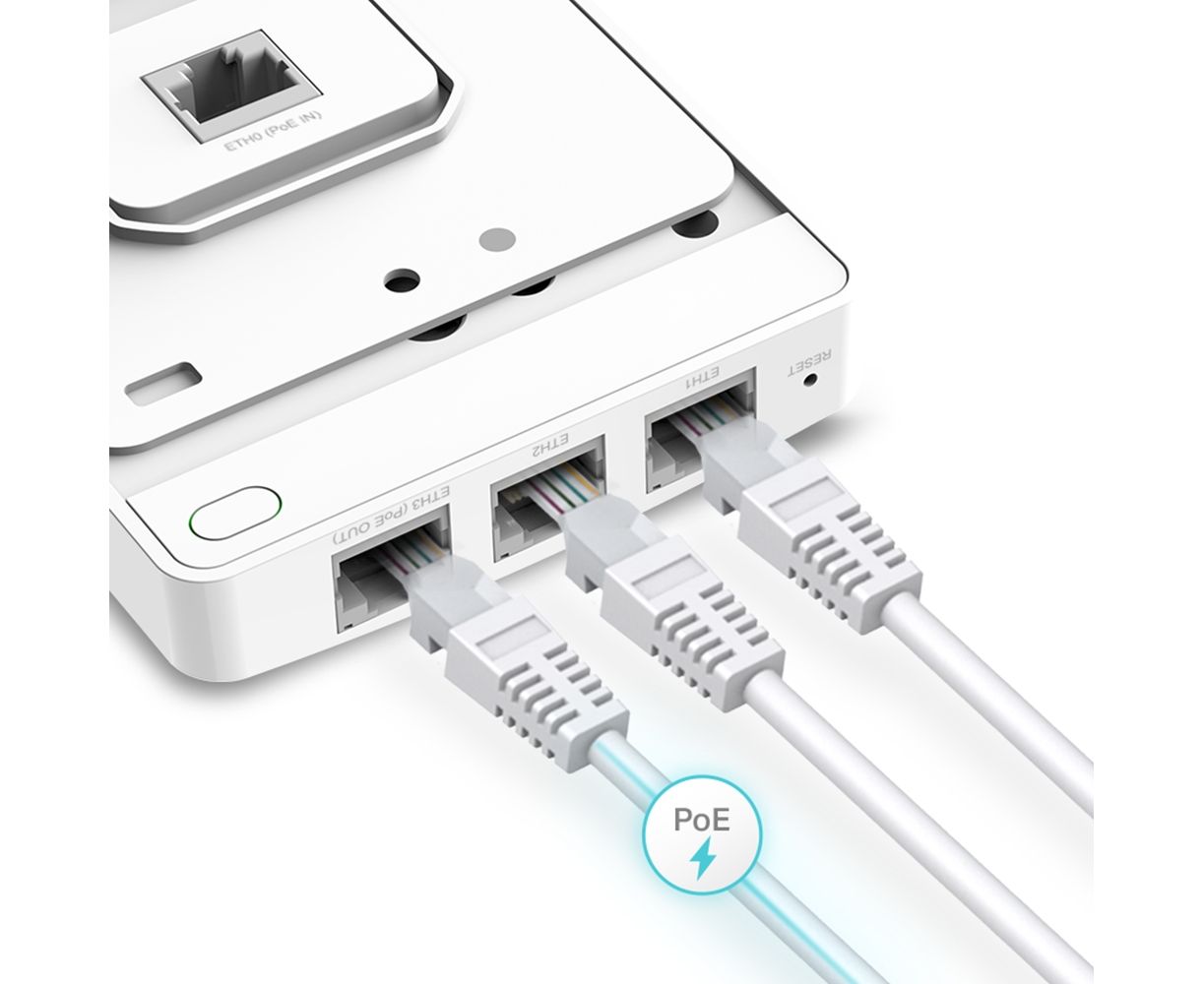

Interface: 4 Gigabit Ethernet ports (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
Cloud management and Omada app supported for ultra-convenience and easy management
Enterprise class Wi-Fi security helps to decrease network security threats
Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology

HARDWARE FEATURES
Interface	Uplink: 10/100/1000 Mbps Ethernet Port1 Downlink: 10/100/1000 Mbps Ethernet Port3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/802.3at PoE
Power Consumption	9.8 watts /24.4 watts (PoE Out Included)
Dimensions	143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)
Antenna	2 Dual-Band Antennas 2.4GHz: 24dBi 5GHz: 24dBi
Mounting	Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps
Wireless Functions	16 SSIDs（Up to 8 SSIDs on each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Band Steering Beamforming Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power	CE: ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP) FCC: ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz)

MANAGEMENT
Omada Cloud Access	Yes
Omada App	Yes
Omada Cloud Controller	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Omada Controller Software	Yes
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall Installation Guide Mounting Screw
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
