Noyafa NF-IPC722ATCHS, CCTV Monitor Tester with PoE Support and IPC Test, 7inch Touch Screen, Wifi
Κωδικός Cableworks: 1325.002

BrandNOYAFA MPNNF-IPC722ATCHS

€519.89

χωρίς ΦΠΑ €419.27

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 15,760 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Features & Benefits:

IPC test: Check the IP address, name, protocols, PING, speed, and other information of a surveillance camera.
CCTV monitor: Sync captured images on the tester screen without delay. One-click to playback, record, snap, stop, and zoom in/out the frames.
Camera setup: Change IP address, video and image settings (brightness, contrast, resolution, frame rate, bitrate, encoder, etc), time, storage, streams, and more.
Universal compatibility: Supports 4K H.265 IP camera tests, 30+ ONVIF & CVBS protocols like HIKVISION, Pelco-D/P, Samsung, and Panasonic, HD camera tests like TVI, CVI, and AHD, etc.

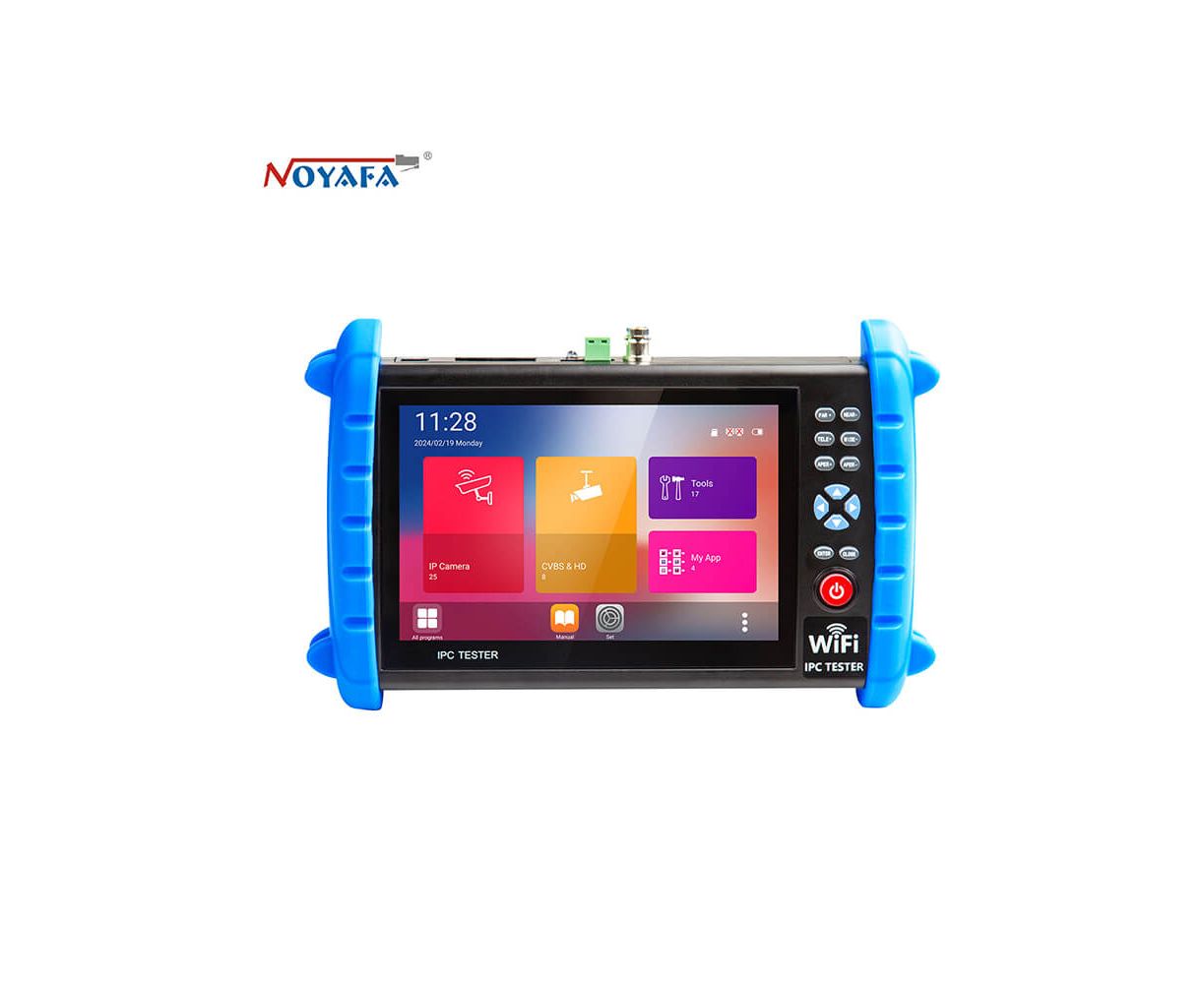

Touch Screen + Buttons: Installed with a 7-in LCD touch screen, this IPC tester is like a portable tablet.
3 power output: DC 5V, 12V & 24V to power on various cameras. We can plug out the cable of a camera and connect it to this tester. It will run the camera like usual.

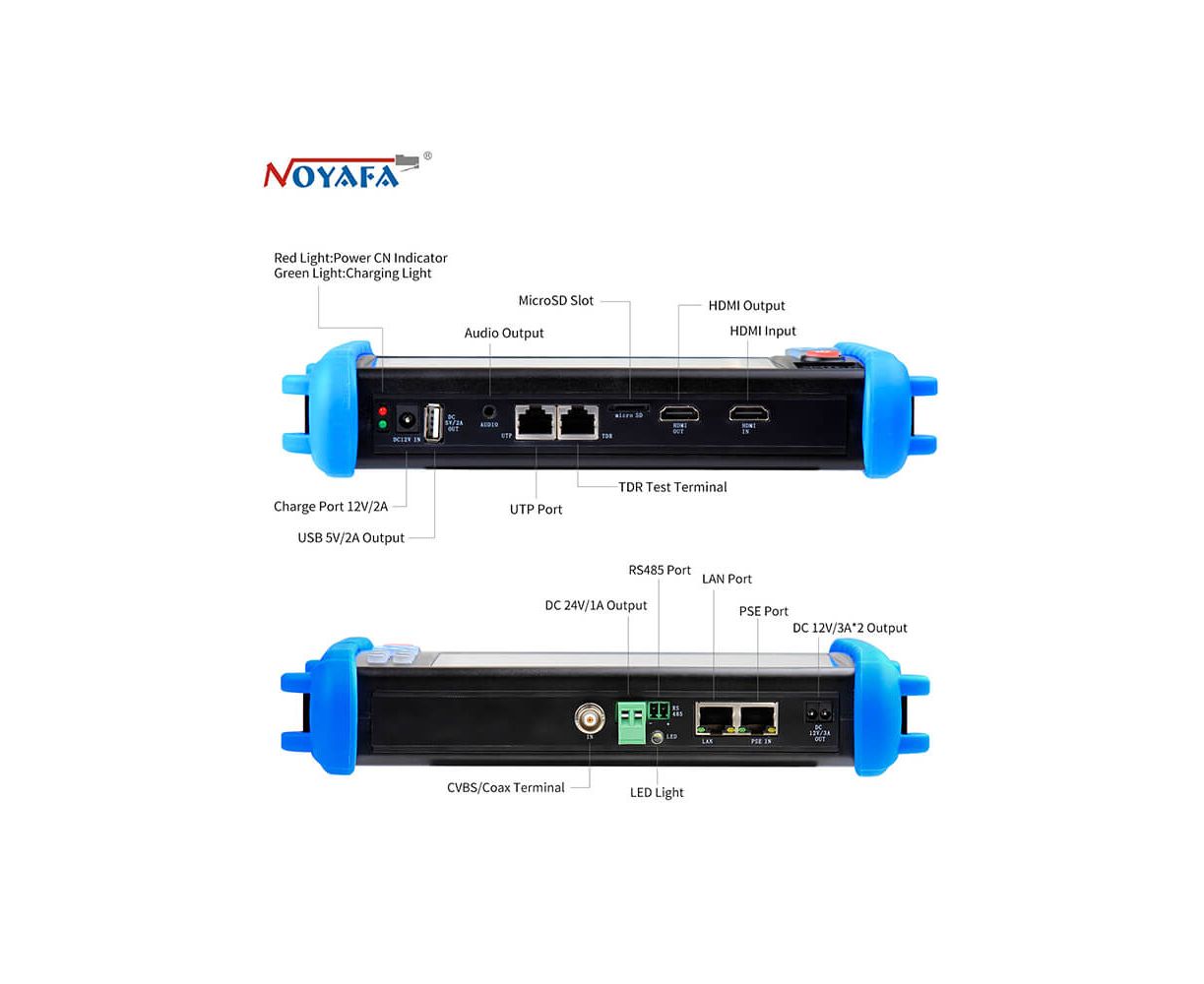

Various jacks for multiple inputs: It has LAN (RJ45), CVBS (Coaxial), SDI, a red light source, , PSE, RS485, and HDMI ports.
IP camera tester with PoE: Connect a camera to this tester via the PoE port. Run the PoE feature. You know which pair of cables is providing power and the exact voltage.
Cable tests: Connect the Lan cable to run a continuity test or TDR measure to see if the cable still works and its performance.

Model: NF-IPC722 & NF-IPC722ATCHS
Touch Screen: 7 inch G+ G structure capacitance screen
LCD Screen: 7 inch resolution 1920x1200 IPS HD full view
Ethernet Port: 10/100/1000M adaptive
WIFI: Built-in wireless WIFI, speed 150M
IP Camera Test: 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30 manufacturer private protocols and customized, support camera mobile client installation
PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation
HD Camera Test: Support HD TVI 8MP, CVI 8MP, AHD SMP, EX-SDI 8MP (Excluded on IPC722; only available on IPC722ADCHS)
Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times
Cable Test: Built-in cable testing tool, check cable sequences and breakpoints, etc
Audio Test: One channel audio signal input for testing, can be recorded and saved
DC12V Power Output: DC12V power output, max current 3A, provide temporary power for cameras
DC24V Power Output: DC24V power output, max current 1A, provide temporary power for cameras
PoE Power Output: 48V standard PoE output, provide PoE power for cameras
DC5V Power Output: Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
PSE Voltage Test: Display PoE power supply device voltage and circuit condition
HDMI Video Input Test: Input HD video image into instrument to test video recorder; IPC722ATCHS supports up to 4K 30FPS and IPC722 supports only HD only.
RS485 Serial Port tool: Can send or receive any data or hex data
Power Charger: DC 12V/2A
Battery: Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
Language: Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
Internal SD Storage: 8G
Working Temperature: -10℃ - 50℃
Working Humidity: 30%-90%
External Size: 23emx14emx4.5em
Weight: 0.9kg
