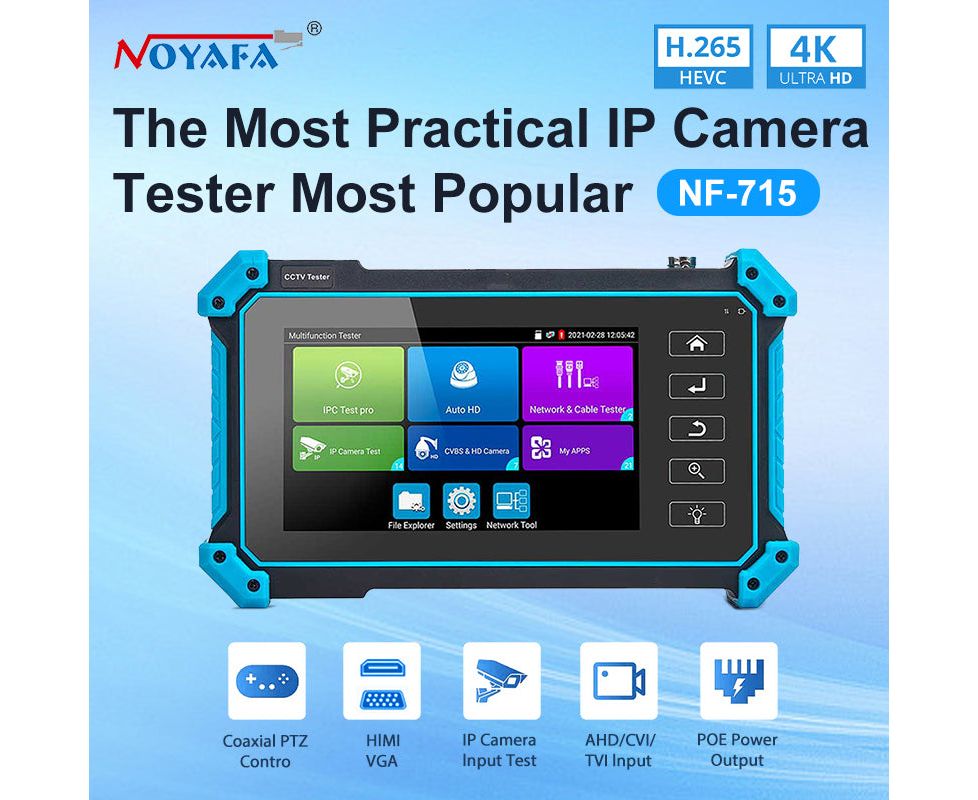

Noyafa NF-IPC715, CCTV Monitor Tester, IPC Test, 5.4inch Touch Screen, Wifi
Κωδικός Cableworks: 1325.013

BrandNOYAFA MPNNF-IPC715

€445.00

χωρίς ΦΠΑ €358.87

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

5.4-inch IPS touch screen, 1920x1080 resolution.
8MP CVI/ TVI/ AHD camera test.
H.265/H.264, 4K video display via mainstream.
VGA input supports 1920 x 1200P 60FPS.
HDMI Input supports 4K 30FPS.
DC12V 3A, 48V PoE power output.
Rapid ONVIF, Create the test report modify IP address, etc.
Auto HD, auto recognize HD coax camera type and resolution.
RJ45 TDR cable test, cable quality test.
UTP cable test detects the near-end, mid-end, and far-end fault points of the network cable crystal head.
Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable. Manufactured in China and cheaper than competitor products with similar quality.

Model: NF-IPC715

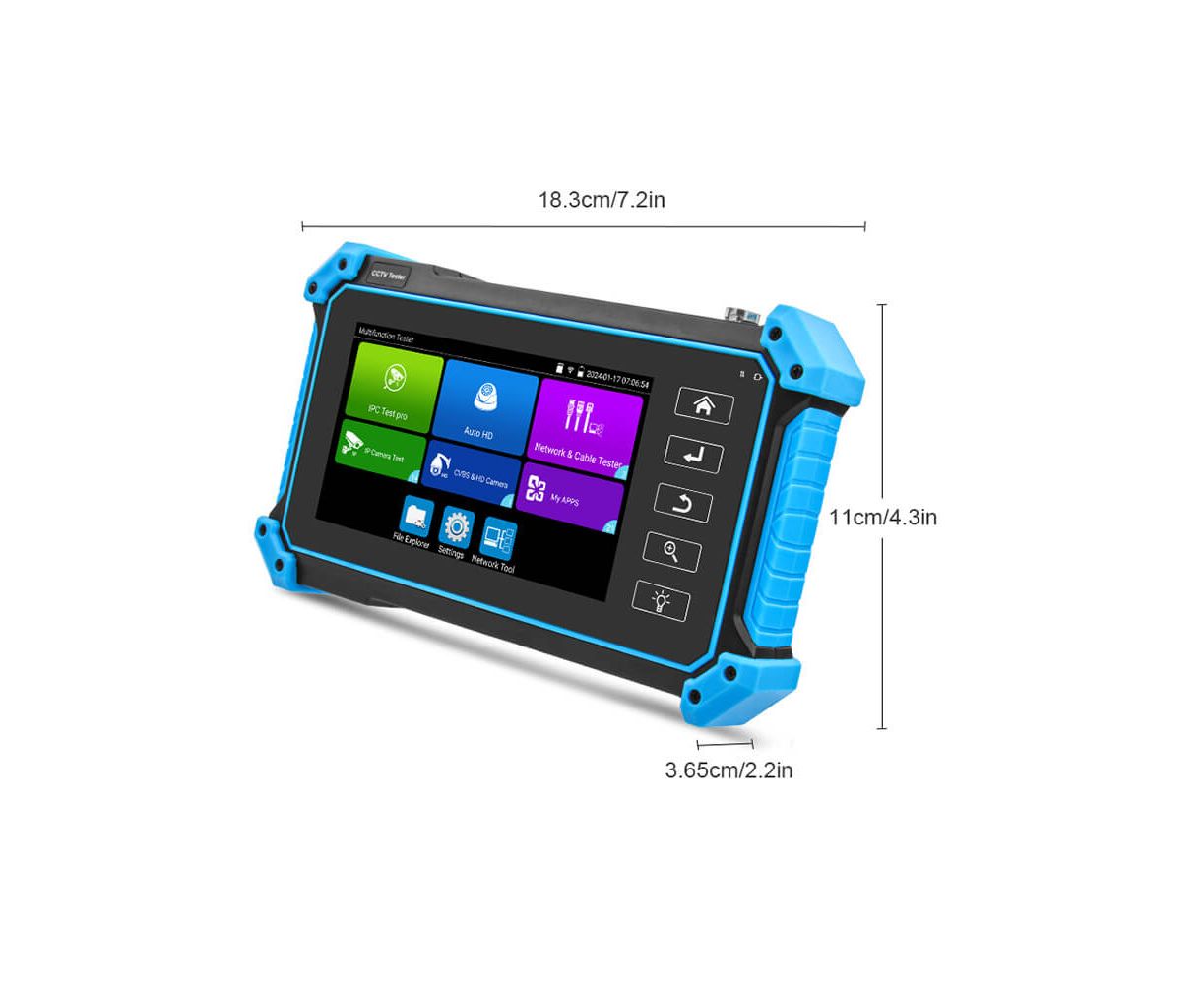

Display Screen: 5.4 inch IPS touch screen, 1920x1080 resolution

Supported Video Modes:

CVBS:

1 channel BNC input, NTSC/PAL (Auto adapt);
PTZ control, RS485 control, Baud 600-115200bps;
compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP camera test: 4K/H.265/H.264

IP Discovery/ Quick ONVIF/ IPC test / RTSP play / Client APK
Rapid Video: Auto view the video, create testing report
HIKVISION: Batch activate HIKVISION cameras and modify IP address, modify password etc. Quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
DAHUA: Batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name.

HD Coaxial test:

8MP TVI / CVI camera: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
8MP AHD test: 3840 x 2160P 15FPS, UTC control / call OSD menu
Auto HD app: auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

HDMI input: 1 channel HDMI input, support 4K 30FPS. The resolutions as follow:

4K_3840 x 2160
2K_2560 x 1440P
1920×1080P / 1920×1080i
720×480P / 720×576P
1280×720
1024×768P
1280×1024P / 1280×900P
440×900P, etc

VGA input: 1 channel VGA input, support 2048 x 1152 60FPS. The resolution as follow:

2048 x 1152P/1920 x 1200P 60FPS
1920×1080P 60FPS
1792×1344P 60FPS
1680x1050P 60FPS
1600x1200P/900P 60FPS
1440x900P 60FPS
1360x768P 60FPS
1280x1024/960/800/768/720P 60FPS
1152x870P 60FPS
1024x768P 60FPS
800x600P 60FPS
600x480P 60FPS

Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back.

Power output:

12V/3A power: Output DC12V/3A power out, supply temporarily power for the camera
PoE power output: 48V PoE power output, max power 25.5W

Cable test: UTP & RJ45

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
Test RJ45 cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.

Tester Play: Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi: Built in WIFI, speeds 150M, display wireless camera image

Audio test: 1 channel audio signal input, test whether sound normal.

Power management: Display DC 12V input & output voltage and power in real time

Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal

External power supply: DC 12V 1A

Battery: Built-in Lithium ion battery

Working time: 5 hours when charging 3-4 hours

Languages: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off: 1-30 (mins)

Working Temperature: -10℃---+50℃
