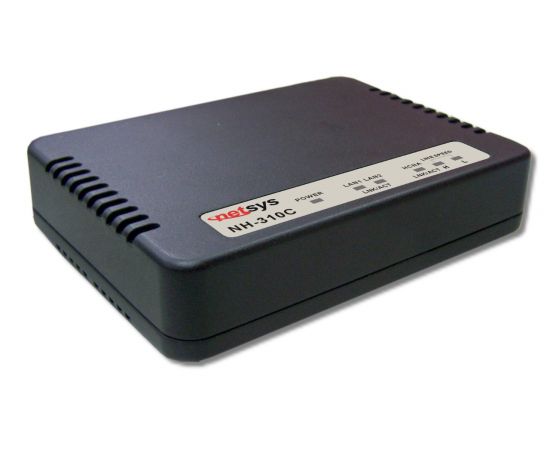

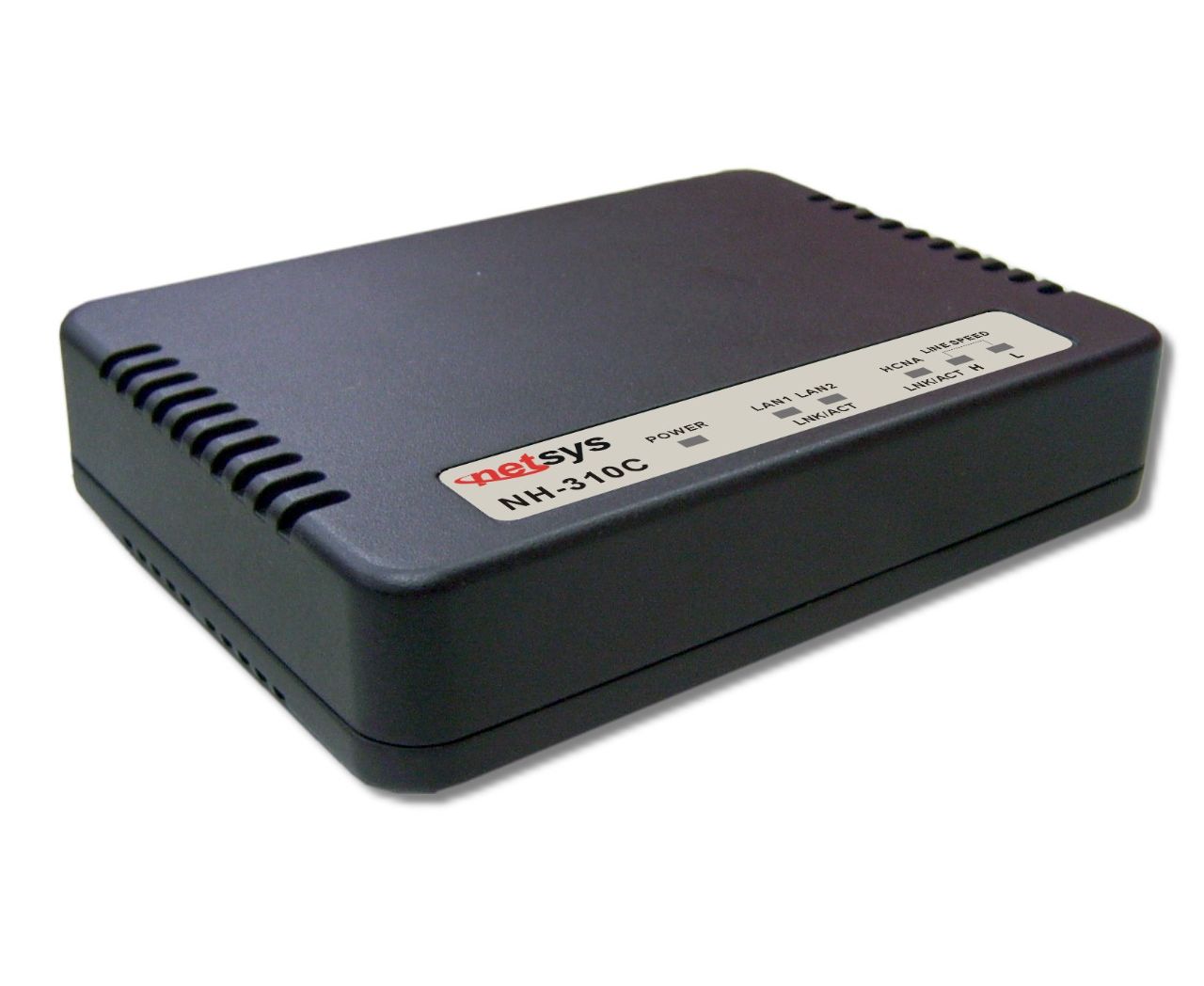

Netsys NH-310C - EoC Endpoint
Κωδικός Cableworks: 1157.011

Brandnetsys MPNNH-310C
74.40
χωρίς ΦΠΑ 60.00
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση



Standard Conformance
 Standard:  IEEE802.3 standard
 IEEE802.3u standard
 ITU-T G.9954 standard
  Regulatory Compliance:

 FCC
 CE

 RoHS compliance


 Hardware Specifications

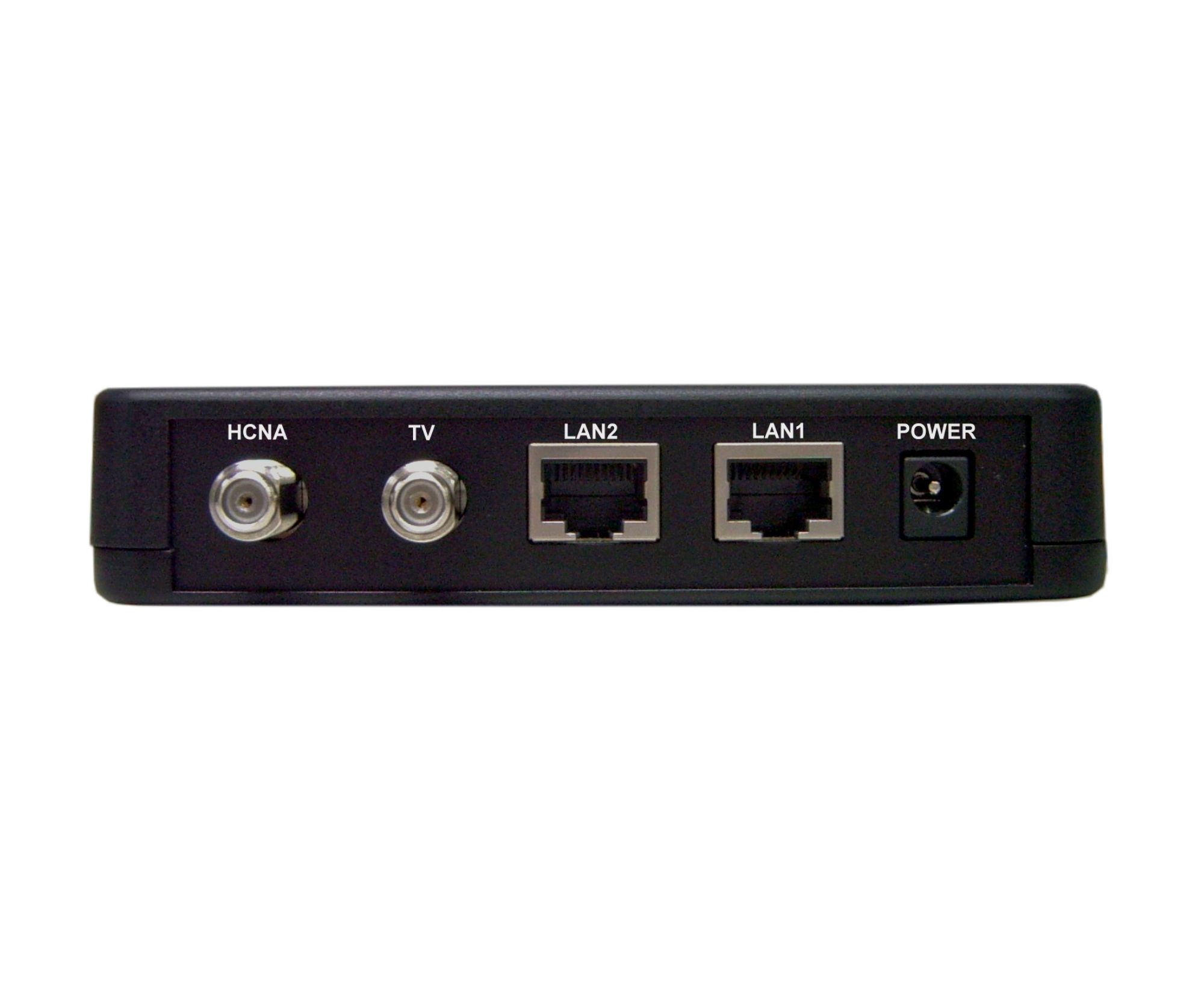

 Physical Interface:  2 x RJ-45 10/100Mbps Ethernet port
 1 x F-type female coax connector for HCNA (75 ohm)
 1 x F-type female coax connector for STB/TV (75 ohm)
 1 x 5-12VDC 1A Power Jack
 LED indication:  1 x Power LED
 1 x HCNA Link/Activity LED
 2 x HCNA Line Speed (Quality) LED
 2 x Ethernet Link/Activity LED
 Max. Bandwidth:  Up to 200Mbps
 Max. Noise Floor:  -160dBm/Hz(Up to 1100m over RG-59 75ohm coaxial cable)
 SAT HCNA Transmission  Spectrum:  12MHz ~ 44MHz
 Operating Temperature:  0°C~ 50°C (32°F ~ 122°F)
 Storage Temperature:  -20°C ~ 70°C (-4°F ~ 158°F)
 Humidity:  10 to 90% (non-condensing)
 Dimensions:  130mm x 94.5mm x 27mm(5.12" x 3.72" x 1.06")
• Compliant with HomePNA3.1/HomePNA3.0 over Coaxial cable(HCNA) specifications (ITU-T G.9954)
• Compliant with IEEE802.3 10Base-T and IEEE802.3u 100Base-Tx standards
• Compliant with IEEE802.3x flow control standard
• Provides 2 x 10/100M auto-negotiation RJ-45 Ethernet ports with auto MDI/MDIX
• Provides 2 x F-type female coax connectors for HCNA and TV
• Supports transmission speed up to 200Mbps over coaxial cable and link establish under -160dBm/Hz noise floor
• Supports point to point and point to multipoint application
• Supports IEEE802.1p priority mapping
• Supports IEEE802.1p/TOS priority queue
• Supports IEEE802.1Q Tag VLAN pass through
• Supports auto-speed from 32Mbps up to 200Mbps
• Supports up to 10 endpoints or slaves
• Guaranteed QoS based on HomePNA3.1 parameterized QoS
• EMI certified by CE and FCC
Home Networking Application

The NH-310C has been designed to operate on the coaxial cable installed in homes throughout the world. They utilized the same cable and connectors commonly used for television.

The NH-310C has 2 x Ethernet ports. One port is used to connect to the ISP to provide Internet access and the other port is used to connect devices such as HUB, concentrator, bridge or router. The device attached to these ports must support auto-negotiation.

The 2x Coaxial connector are used to connect to TV or coaxial wall socket to another modem that connect its RJ-45 to the LAN card of another set of PC, notebook, or other internet access device or coaxial connector to TV or set top box.
The NH-310S’ coaxial connector must support the transmission of data up to 200Mbps across the existing coaxial cable and link establish under -160dBm/Hz noise floor. But make sure that the connector is inserted properly and lock.
