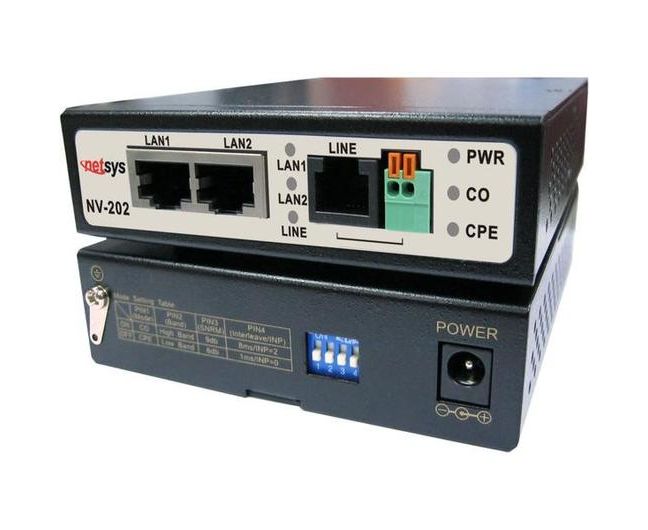

The Netsys VDSL2 Ethernet Bridge (NV-202) provides a cost effective CPE unit for the NV-800H IP DLSAM or the NV-2400H IP DSLAM. The NV-202 features auto-configuring speeds up to 100Mbps symmetrical (up to 1,000 feet, with speeds dropping off asymmetrically from there), automatically optimized based on the quality of the line and the distance with a maximum distance of 10,000' (3 km) over existing twisted-pair phone line or network cable, and can be confirgured as a CPE or CO modem using the DIP switches on the unit.

The VDSL2 Ethernet Bridge comes ready to plug and play out of the box for distances up to 10,000 feet (3 km) at an auto-configured bandwidth of 5.04Mbps downstream and 1.48Mbps upstream, or line speeds up to 100Mbps symmetrical at distances up to 1,000 feet (0.3 km), which is more than perfect for most applications. The bandwidth usage is automatically optimized to achieve the best speeds possible based on the surrounding environment, and there is no configuration required. The Netsys VDSL2 Solution also features the ability to extend telephone (POTS/ISDN/PBX) service over the same 2 wires and utilizing external filters (sold separately). With the NV-802S or NV2400H IP DSLAMs, each link can be set to pre-configured speeds by using the unique bandwidth management features.

The VDSL2 Ethernet Bridge is typically placed at the remote network device location and can be mounted on a desktop or under the counter. One of the NV-202’s two RJ-45 Ethernet ports connect to a NIC, hub, switch, or other network device. Next, the Line port of the NV-202 is connected to the RJ-11 telephone jack of the 2-wire twisted pair phone line (or network cable) connection extending (up to 10,000 feet/3 km) from the central location. Last, the NV-802S, NV-2400H, or a second NV-202 configured as a CO modem is installed and all equipment is connected to the AC power source and the link is established automatically on power up. The speed of the link will automatically configure itself based on the distance and quality of the line, with a maximum speed of 100Mbps symmetrical at distances up to 1,000' and a maximum distance of 10,000' at speeds of 5.04Mbps downstream and 1.48Mbps upstream. No configuration is required.

The VDSL2 Ethernet Bridge (NV-202) provides a complete and cost-effective remote unit solution for Netsys’ full-featured VDSL2 IP DSLAMs.

Speed vs. Distance (25K-30Mhz Spectrum - Low Band)

• NO CONFIGURATION REQUIRED
• Plug and play, cost-effective Ethernet extension up to 10,000 feet (3 km) over existing phone lines or network cable
• Ideal for remotely located Wireless Access Points
• RJ-11/Terminal Block combo for Line port.
• Supports high bandwidth up to 100Mbps symmetrical
• Supports long reach mode up to 10,000 feet (3 km) with 24 gauge twisted-pair phone wire
• Supports auto speed for Line port and Interleave mode selectable through CO side DIP switch
• DIP switch for selecting CO and CPE modes
• Supports long packet size up to 1536 bytes
• Built-In Surge protection
• Wall mountable
• 2 X Auto-sensing 10/100 Mbps Ethernet port with Auto MDIX
• RoHS compliant
• Compact desktop design
• 802.3 Ethernet
• 802.3u Fast Ethernet
• 802.3x Flow Control

Product Kit Contents

• 1 X User Manual Download Link
• 4 X Plastic Feet
• 1 X AC to DC Power Adapter
• 1 X Straight-through Ethernet Cables
• 1 X RJ-11 Cables

Cable Connections

• RJ-45 (Ethernet): Category 3~6 UTP/STP
• RJ-11 (VDSL2): Twisted Pair phone wire

LED Indicators

• 1 x Power LED
• 2 x Link/Active Status for Ethernet port
• 1 x Link LED for VDSL2 port
• 1 x CO Mode indicator LED
• 1 x CPE Mode indicator LED

VDSL2 Line Code

• Discrete multitone (DMT) modulation

VDSL2 Transmission Mode

• Packet Transfer Mode (PTM)

Typical Power Consumption

• 5 W

Power Requirement: Input Voltage

• 12VDC / 1A (Commercial-grade Power Adapter)

EMC

• EMI Compliant: FCC class A
• EMS Compliant: CE mark

Operating Temperature

• 0°C ~ 50°C (32°F ~ 122°F)
• Fanless, free air cooling

Storage Temperature

• -20°C ~ 70°C (-4°F ~158°F)

Humidity

• 10% to 90% (non-condensing)

Mounting Method

• Desktop or Under Counter

Dimensions

• 3.74" X 4.33" X 1.06” (95 mm X 110 mm X 27 mm)

Shipping Weight

• 2 lbs. (0.907 Kg)

Power Requirements

• External Switching Power Adapter
  (Input: 85-240VAC, 50/60Hz Output: 12V/1A)

Agency Compliance

• FCC Part 15 Class A, CE
• RoHS compliant

Warranty

• 2 years (parts only)
