MikroTik RBcAPL-2nD, cAP lite, 1.5dBi, 22dBm, 650MHz, 64MB, 2.4GHz, 1xEthernet, L4
Κωδικός Cableworks: 1002.095

BrandMikrotik MPNRBcAPL-2nD ΕΓΓΥΗΣΗ24 μήνες Lan Ports1 Managed / UnmanagedManaged Port SpeedFast Ethernet (100Mbps) Wifi2.4GHz

€31.50

χωρίς ΦΠΑ €25.40

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 7,539 Kb

Κατεβάστε το - 2,047 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

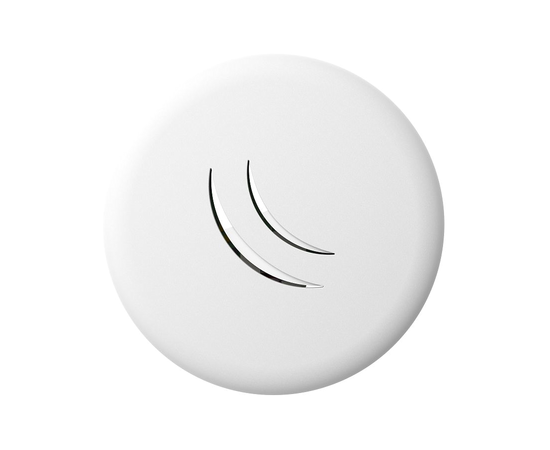

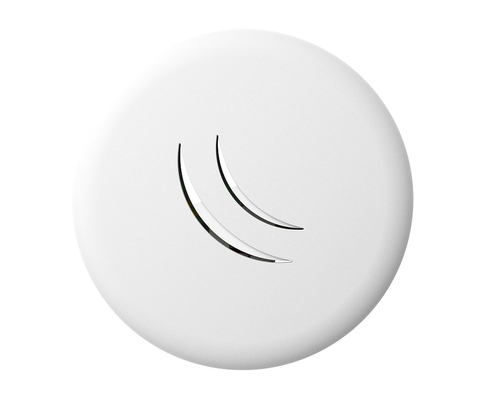

cAP lite

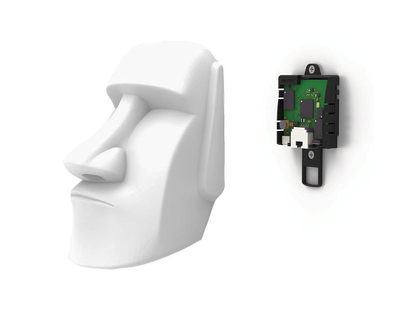

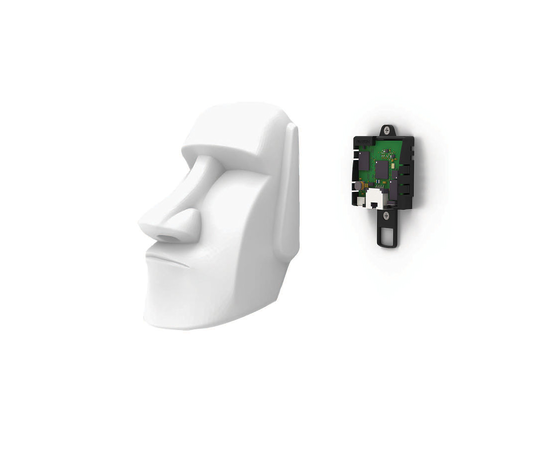

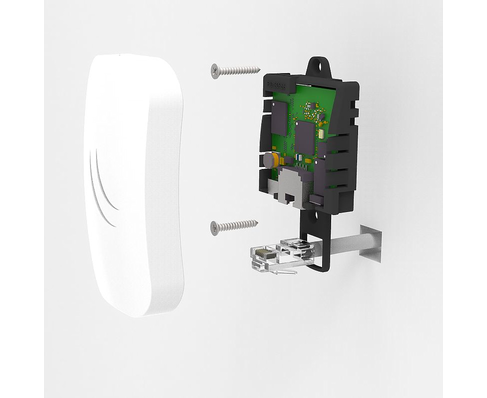

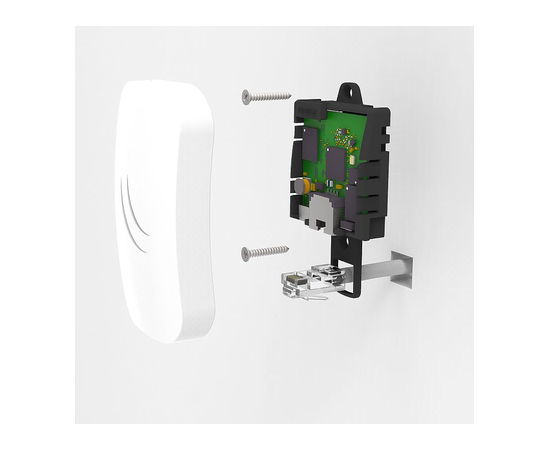

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files.

The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.

Product specifications

Details
Product code	RBcAPL-2nD
CPU nominal frequency	650 MHz
CPU core count	1
Size of RAM	64 MB
10/100 Ethernet ports	1
Wireless standards	802.11b/g/n
Wireless chip model	QCA9533
Supported input voltage	5 V - 60 V
PoE in	802.3af/at
Dimensions	Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
Operating System	RouterOS
Tested ambient temperature	-40°C .. +70°C
License level	4
Antenna gain DBI	1.5
CPU	QCA9533
Max Power consumption	4W
Number of chains	2
Storage type	FLASH
Storage size	16 MB

Wireless specifications

2.4 GHz
	Transmit power (dBm)	Receive Sensitivity	Transmit power (mW)
1MBit/s	22	-96	158
11MBit/s	22	-89	158
6MBit/s	20	-93	100
54MBit/s	18	-74	63
MCS0	20	-93	100
MCS7	16	-71	40

wireless parameters may be limited in software, depending on your local regulatory limitations

RBcAPL-2nD		QCA9533 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
