MikroTik RB760iGS, hEX S, Dual Core 880MHz, 256MB, 5xGigabit, 1xSFP, USB, microSD, L4
Κωδικός Cableworks: 1002.219

BrandMikrotik MPNRB760iGS ΕΓΓΥΗΣΗ24 μήνες Lan Ports5 Managed / UnmanagedManaged Port SpeedGigabit Ethernet (1Gbps) PoE Out Ports1 PoE ProtocolPassive PoE 24V SFP

€84.00

χωρίς ΦΠΑ €67.74

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 1,367 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

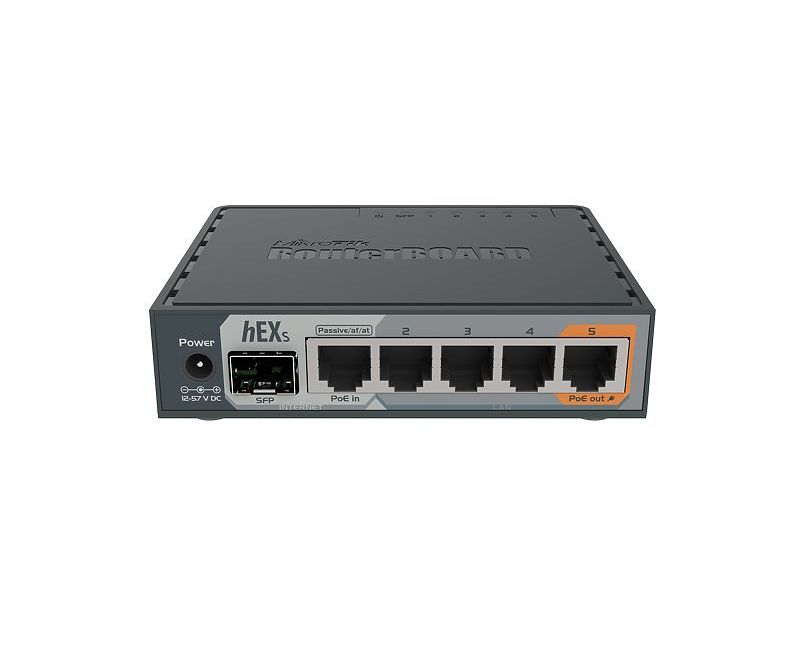

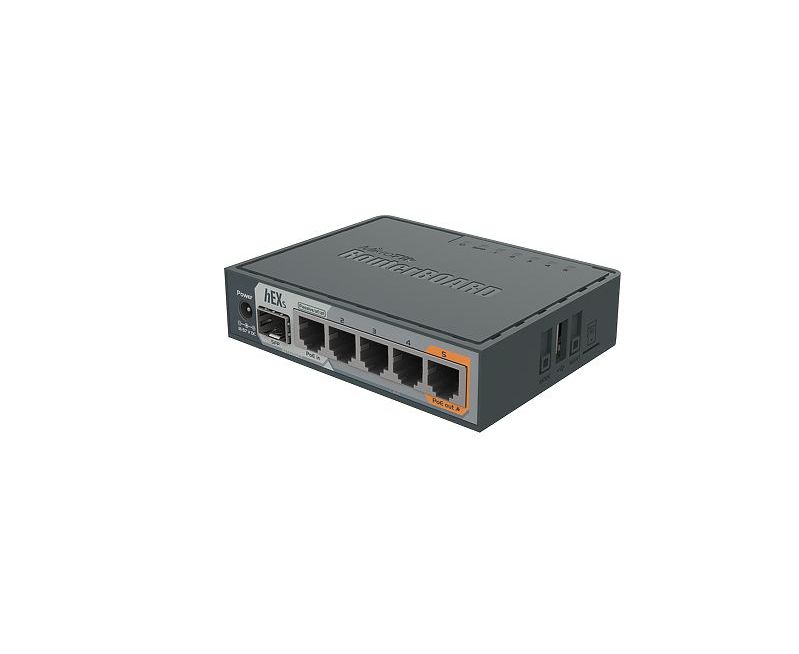

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specifications

Details
Product code	RB760iGS
Architecture	MMIPS
CPU	MT7621A
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
Dimensions	113 x 89 x 28 mm
License level	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C .. +70°C

Powering

Details
Max Power consumption	11W
PoE in	802.3af/at
PoE out	Passive PoE up to 57V
PoE in input Voltage	12-57 V
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V

Ethernet

Details
10/100/1000 Ethernet ports	5

Fiber

Details
SFP ports	1

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Included parts

24V 1.2A power adapter

Test results

Ethernet test results

RB760iGS		MT7621A (880Mhz) 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	162.4	1,972.2	443.7	1,817.4	1039.1	532.0
Bridging	25 bridge filter rules	162.4	1,972.2	168.1	688.5	174.3	89.2
Routing	none (fast path)	162.4	1,972.2	444.4	1,820.3	1035.0	529.9
Routing	25 simple queues	162.4	1,972.2	179.6	735.6	171.4	87.8
Routing	25 ip filter rules	92.9	1,128.2	94.1	385.4	93.8	48.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB760iGS		MT7621A IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	41.9	469.3	42.3	173.3	41.5	21.2
256 tunnels	AES-128-CBC + SHA1	41.9	469.3	43.7	179	42.7	21.9
256 tunnels	AES-128-CBC + SHA256	42.2	472.6	44.4	181.9	42.7	21.9
256 tunnels	AES-256-CBC + SHA1	32	358.4	40	163.8	40.5	20.7
256 tunnels	AES-256-CBC + SHA256	32.1	359.5	39.7	162.6	40.5	20.7

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
