MikroTik RBD52G-5HacD2HnD-TC, hAP ac², 2.5dBi, 27dBm 2x2 @ 2.4GHz, 2.5dBi, 26dBm, 2x2 @ 5GHz, Quad-Core 716MHz, 128MB, 5xGigabit, PoE in, USB, L4
Κωδικός Cableworks: 1002.142

BrandMikrotik MPNRBD52G-5HacD2HnD-TC ΕΓΓΥΗΣΗ24 μήνες Lan Ports5 Managed / UnmanagedManaged Port SpeedGigabit Ethernet (1Gbps) Wifi2.4GHz, 5GHz

€85.99

χωρίς ΦΠΑ €69.35

Μη Διαθέσιμο

Ειδοποίηση όταν το προϊόν είναι ξανά διαθέσιμο

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 716 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

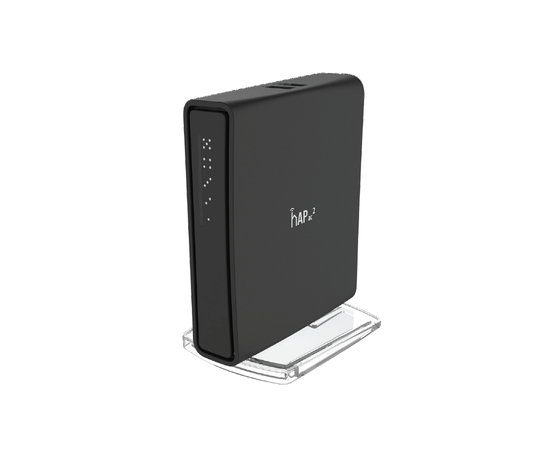

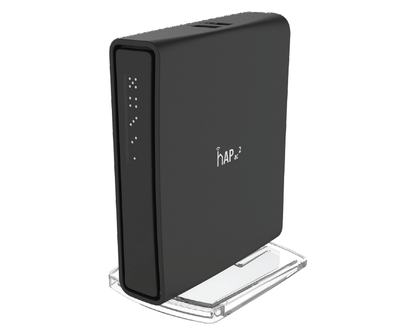

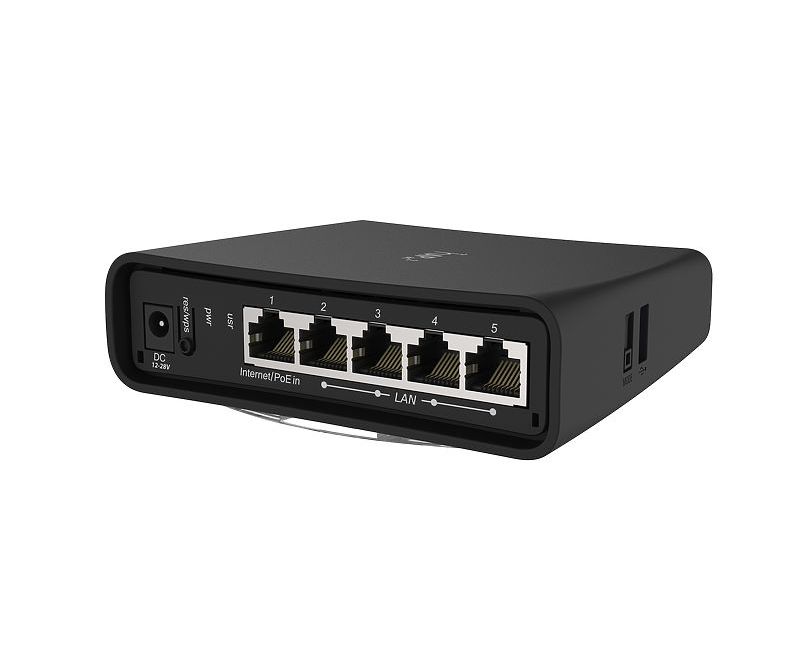

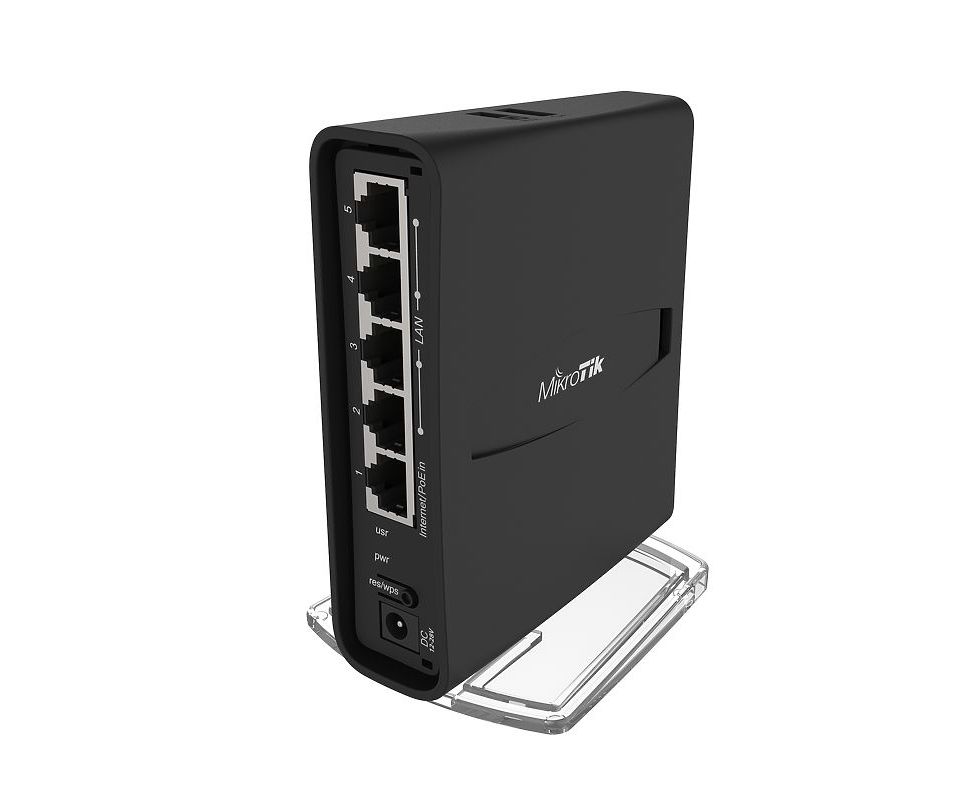

The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, and USB can be used for external storage or 4G/LTE modem.

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

We have two versions available.

- hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code	RBD52G-5HacD2HnD-TC
Architecture	ARM 32bit
CPU	IPQ-4018
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	34 x 119 x 98mm
License level	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C .. +50°C

Powering

Details
Max Power consumption	15W
PoE in	Passive PoE
PoE in input Voltage	18-28 V
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-30 V

Wireless

Details
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	IPQ-4018
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11ac
Antenna gain dBi for 5 GHz	2.5
Wireless 5 GHz chip model	IPQ-4018

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	27	-100
11MBit/s	27	-94
6MBit/s	27	-96
54MBit/s	24	-78
MCS0	27	-96
MCS7	23	-73

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	26	-96
54MBit/s	22	-80
MCS0	26	-96
MCS7	21	-75
MCS9	19	-70

Ethernet test results

RBD52G-5HacD2HnD-TC		IPQ-4018 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	162.5	1973.4	469.9	1924.7	1484.8	760.2
Bridging	25 bridge filter rules	162.1	1968.5	352.9	1445.5	359.2	183.9
Routing	none (fast path)	162.5	1973.4	469.9	1924.7	1488	761.9
Routing	25 simple queues	162.5	1973.4	469.9	1924.7	506.3	259.2
Routing	25 ip filter rules	162.2	1969.8	240.8	986.3	242.9	124.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBD52G-5HacD2HnD-TC		IPQ-4018 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	37.9	424.5	59	241.7	61.6	31.5
256 tunnels	AES-128-CBC + SHA1	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-128-CBC + SHA256	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-256-CBC + SHA1	34.4	385.3	37.9	155.2	39.8	20.4
256 tunnels	AES-256-CBC + SHA256	34.4	385.3	37.9	155.2	39.8	20.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
