MikroTik RB952Ui-5ac2nD-TC, hAP ac lite Tower, 1.5dBi, 22dBm @ 2.4GHz, 2dBi, 23dBm @ 5GHz, 650MHz, 64MB, 5xEthernet, PoE out, USB, L4
Κωδικός Cableworks: 1002.089

BrandMikrotik MPNRB952Ui-5ac2nD-TC ΕΓΓΥΗΣΗ24 μήνες Lan Ports5 Managed / UnmanagedManaged Port SpeedFast Ethernet (100Mbps) PoE Out Ports1 PoE ProtocolPassive PoE 24V Wifi2.4GHz, 5GHz

€60.70

χωρίς ΦΠΑ €48.95

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 541 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.

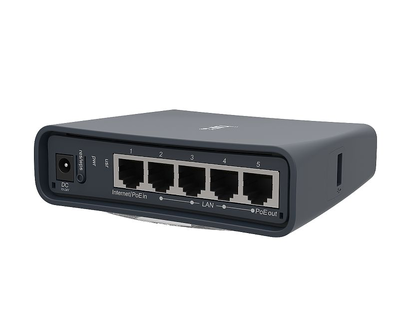

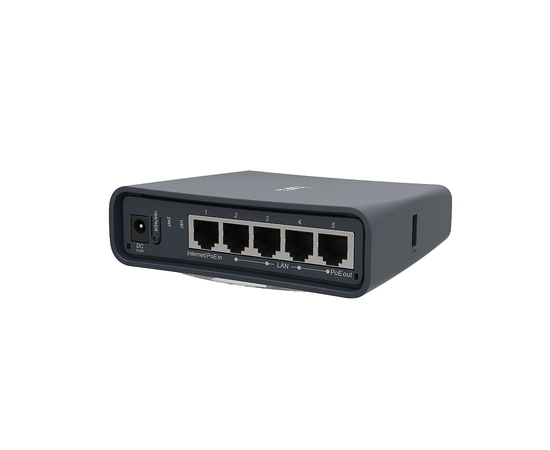

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

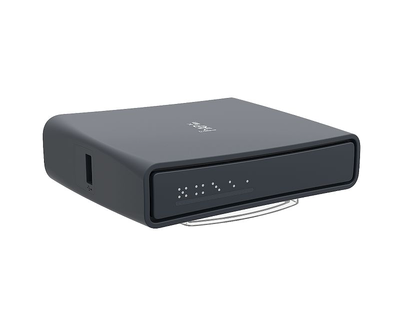

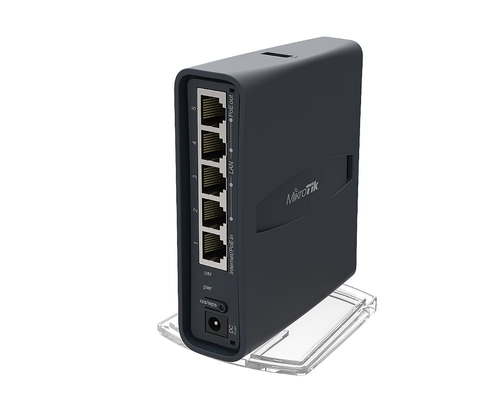

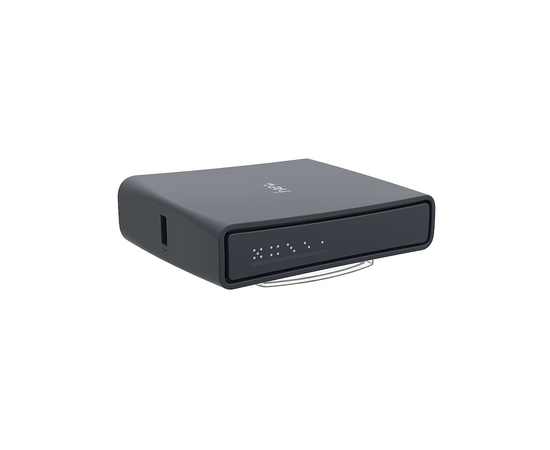

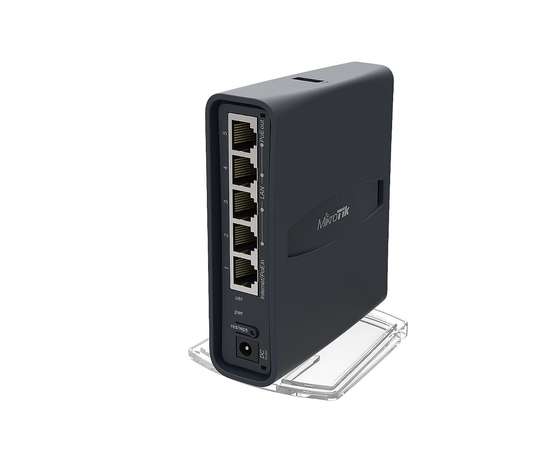

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

We have two versions available - RB952Ui-5ac2nD-TC (International) and RB952Ui-5ac2nD-TC-US (USA). RB952Ui-5ac2nD-TC-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD-TC (International) supports 2412-2484MHz and 5150MHz - 5875MHz range.

Product specifications

Details
Product code	RB952Ui-5ac2nD-TC
CPU nominal frequency	650 MHz
CPU core count	1
Size of RAM	64 MB
10/100 Ethernet ports	5
Wireless standards	802.11a/n/ac
Wireless chip model	QCA-9887
Secondary wireless standards	802.11b/g/n
Secondary wireless chip model	QCA9531
Number of USB ports	1
Power Jack	1
PoE in	Yes
PoE out	Yes
Supported input voltage	10 V - 30 V
Dimensions	34 x 119 x 98mm
Operating System	RouterOS
License level	4
Antenna gain DBI	2
CPU	QCA9531
Max Power consumption	8W
USB Power Reset	Yes
USB slot type	USB type A
Number of chains	1
Storage type	FLASH
Storage size	16 MB
Suggested price	$49.95

Wireless specifications

2.4 GHz
	Transmit power (dBm)	Receive Sensitivity	Transmit power (mW)
1MBit/s	22	-96	158
11MBit/s	22	-89	158
6MBit/s	20	-93	100
54MBit/s	18	-74	63
MCS0	20	-93	100
MCS7	16	-71	40

5 GHz
	Transmit power (dBm)	Receive Sensitivity	Transmit power (mW)
6MBit/s	23	-93	200
54MBit/s	20	-75	100
MCS0	23	-93	200
MCS7	19	-71	79
MCS9	16	-63	40

wireless parameters may be limited in software, depending on your local regulatory limitations

Ethernet test results

RB952Ui-5ac2nD-TC		QCA9531 (650Mhz) 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	40.6	493.0	117.4	480.9	217.0	111.1
Bridging	25 bridge filter rules	40.6	493.0	70.1	287.1	70.9	36.3
Routing	none (fast path)	40.6	493.0	117.4	480.9	200.8	102.8
Routing	25 simple queues	40.6	493.0	79.6	326.0	90.8	46.5
Routing	25 ip filter rules	40.6	493.0	42.2	172.8	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
