Mikrotik ATLGM&EG18-EA, ATL LTE18 kit, Advanced Technology Level LTE Solution, DualCore ARM64, 1.2GHz, 256MB, 1xGigabit, L3
Κωδικός Cableworks: 1002.381

BrandMikrotik MPNATLGM&EG18-EA ΕΓΓΥΗΣΗ24 μήνες

€300.01

χωρίς ΦΠΑ €241.94

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 1,029 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

The world keeps changing, but one thing remains certain: you’ve got to stay connected. Immediate access to information is vital. That’s why we’ve developed the ATL: an advanced technology level directional LTE solution for those who want to squeeze the most out of LTE base stations. ATL features a phenomenal Category 18 LTE modem and a Gigabit Ethernet port with PoE-in. Combined with the modern ARM CPU, this means speeds up to 1 Gbps, no bottlenecks!

One of the key features is the 4x4 MIMO or multiple-input, multiple-output support. More antennas to work with – higher speed and better signal! You can expect fantastic performance in the cities with modern base stations. But ATL can also do wonders in rural areas as it supports a wider frequency band range for lower band antennas.

There are 4 high-gain middle band (1.7 – 2.7 GHz) and 2 high-gain low band antennas (700 MHz – 1 GHz, LTE Band 28). Why is that important? Two reasons. First of all, the 700 and 800 MHz LTE band is one of the most popular frequency options in the world. It is used by countless mobile operators everywhere, so ATL will always be able to find some signal. And the second reason is the nature of the lower frequency itself: this type of radio wave can travel very far. It all depends on many factors, including how flat the terrain is, but rest assured – with ATL you are in good hands.

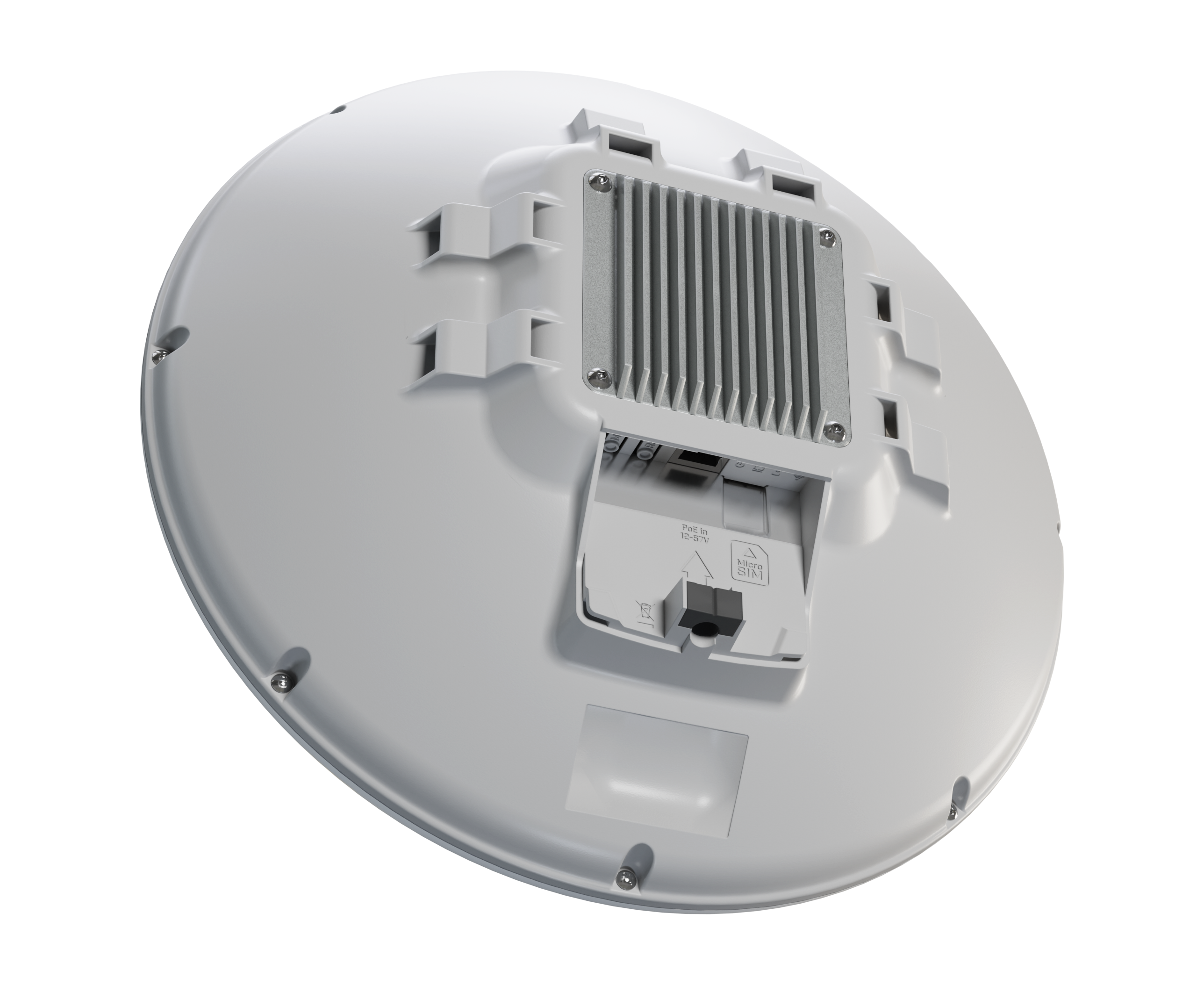

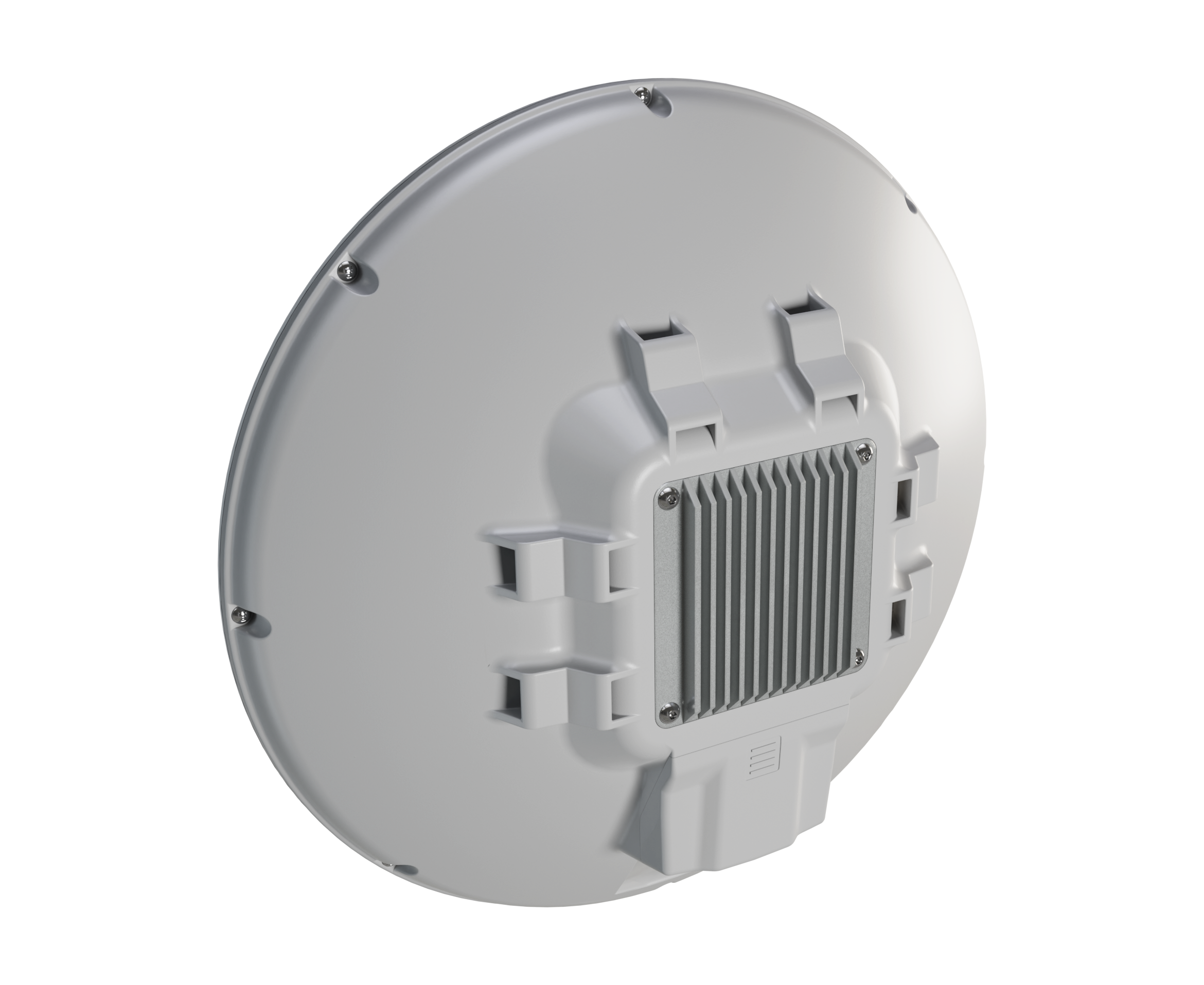

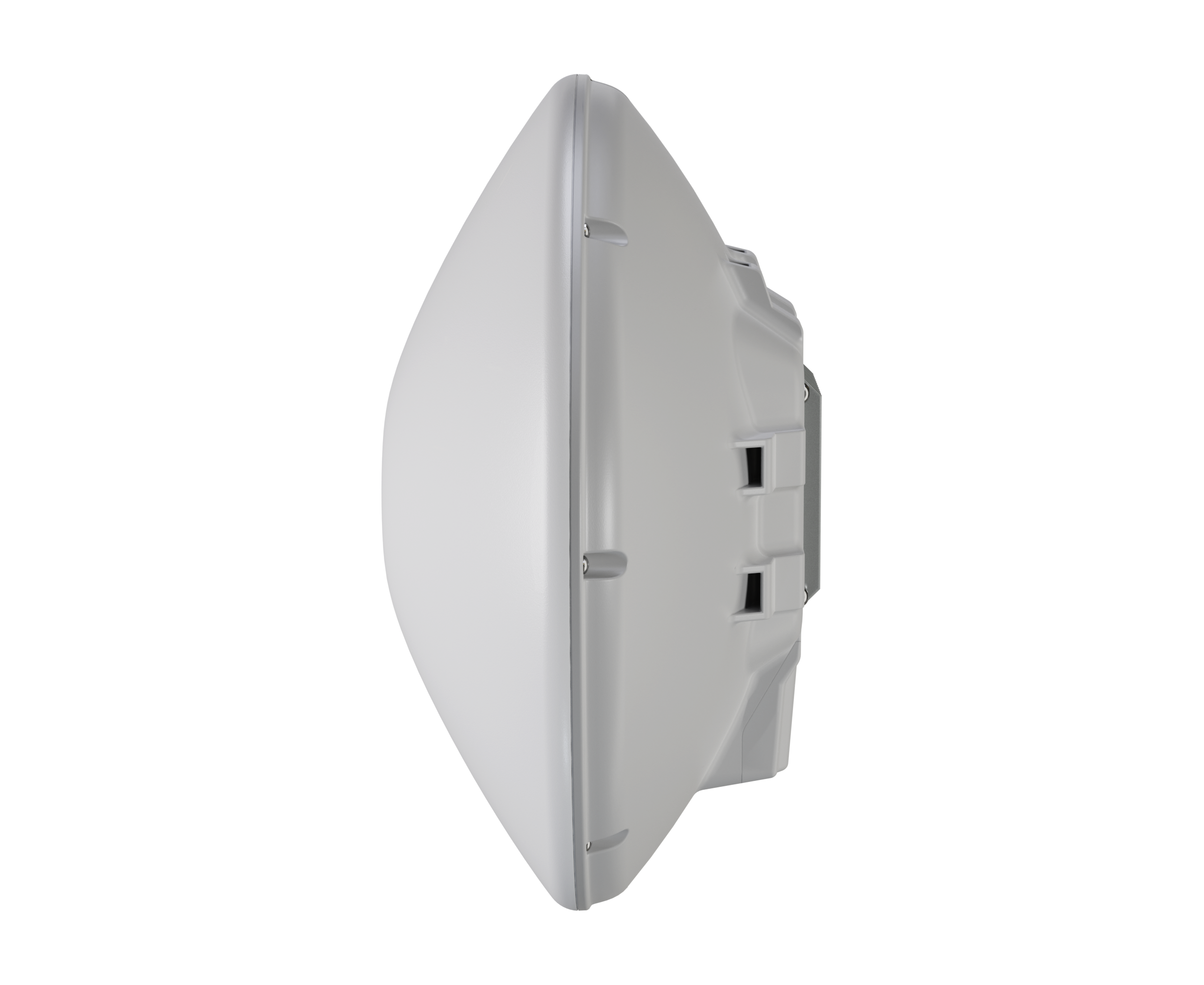

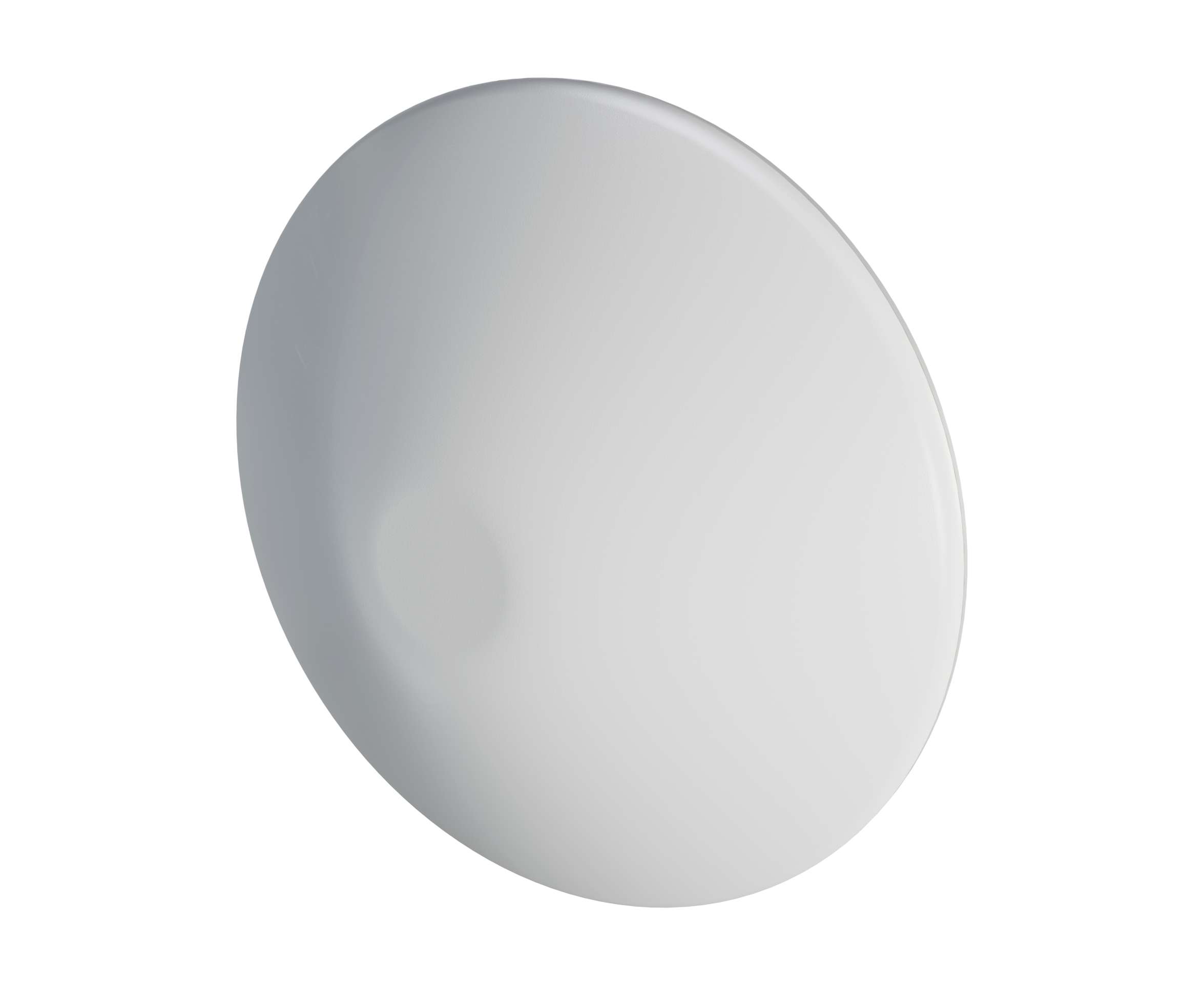

At first glance, the ATL LTE18 kit looks like a spaceship, but there’s a good reason for that. This design prevents snow and water from collecting and freezing up. So not only is it compact and easy to ship, it can also handle some of the roughest weather conditions. ATL is an excellent tool for fast and stable connections in cold, snowy cities without having to clean the antenna all the time. And the LTE Category 18 modem is pretty future-proof, so you won’t have to worry about upgrades for quite some time.

Specifications

Details
Product code	ATLGM&EG18-EA
Architecture	ARM 64bit
CPU	88F3720
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	3
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$279.00

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	8 W
Max power consumption without attachments	8 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	18 (1.2Gbps Downlink, 150Mbps Uplink)
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 7 (2600MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
