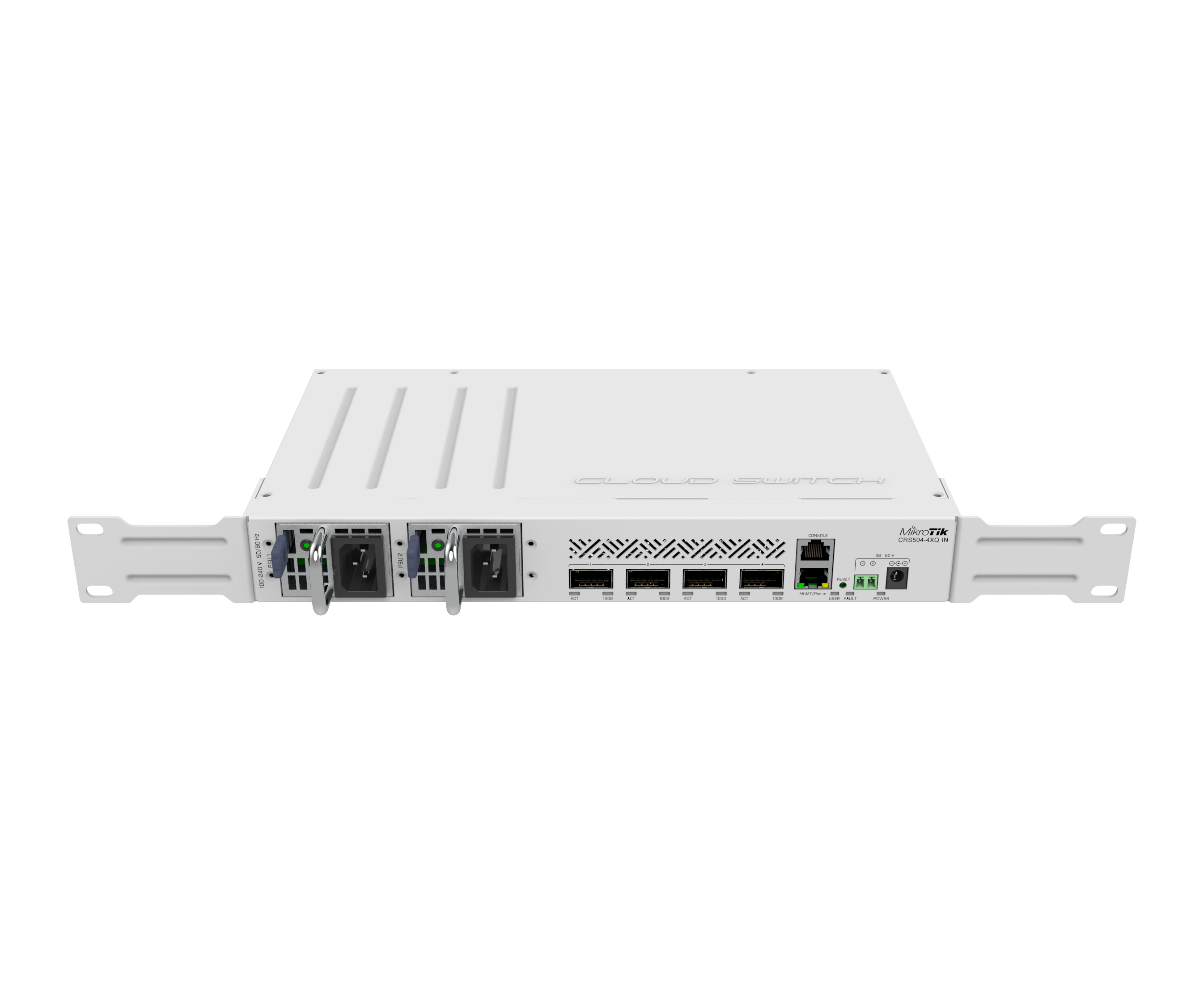

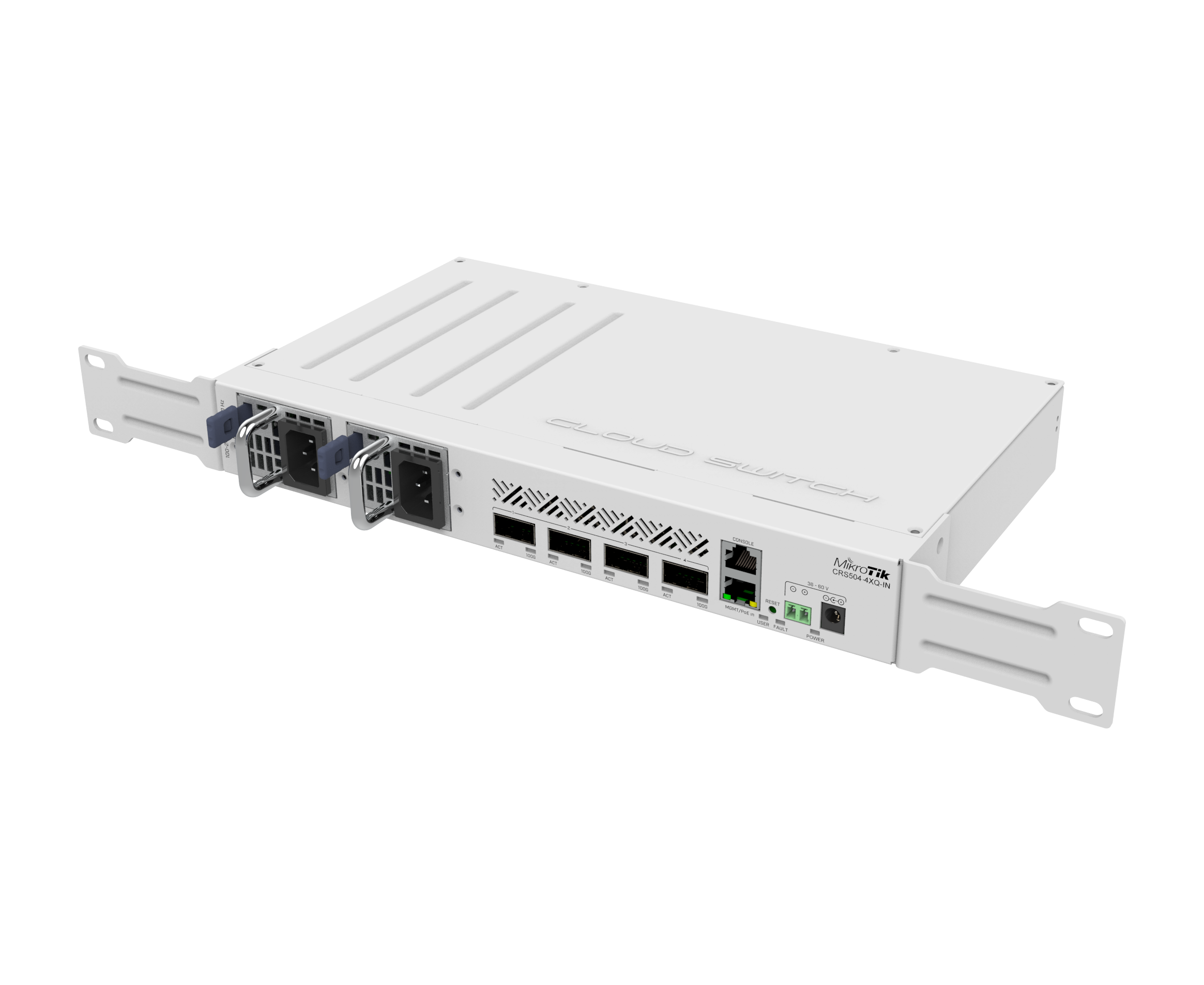

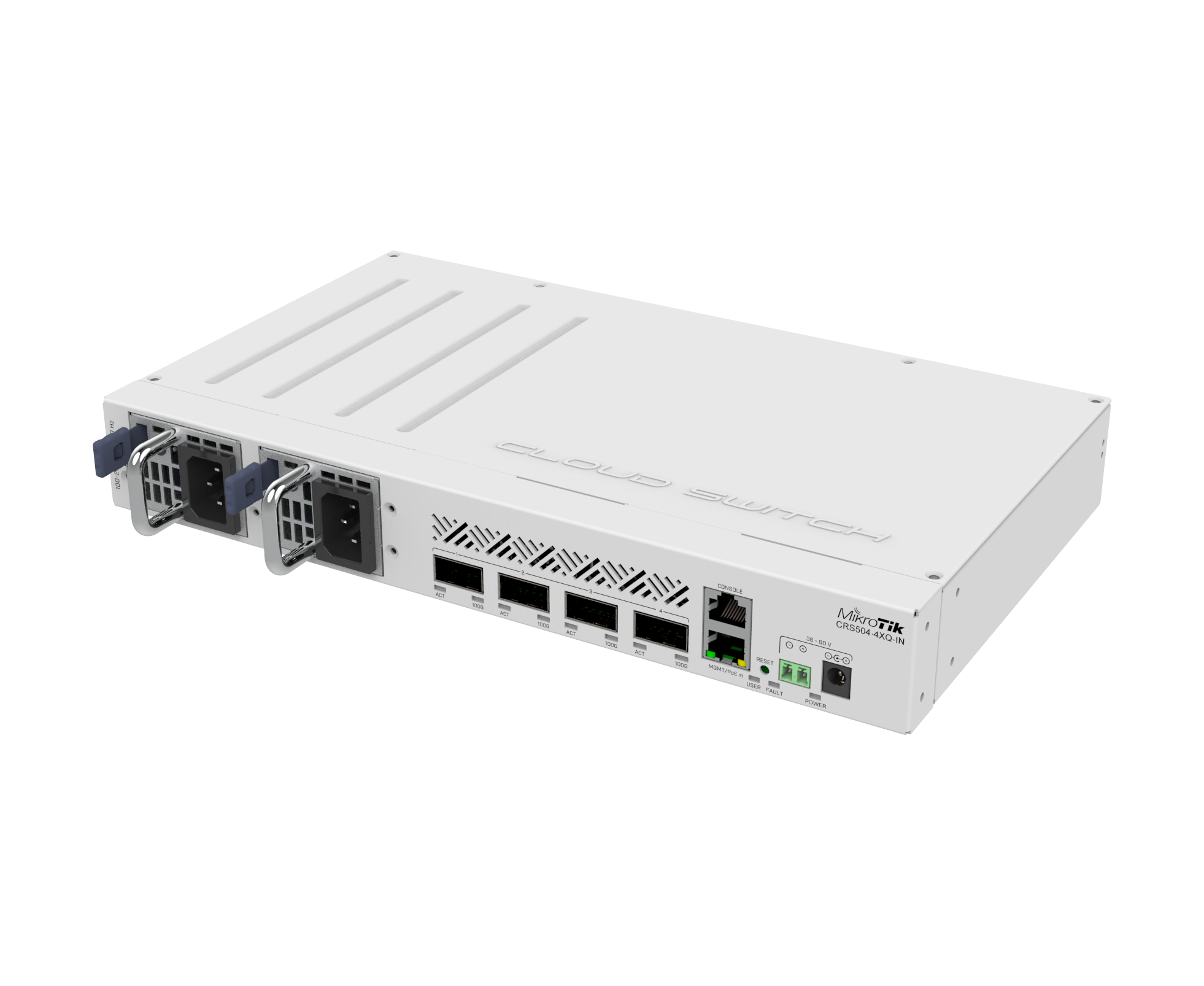

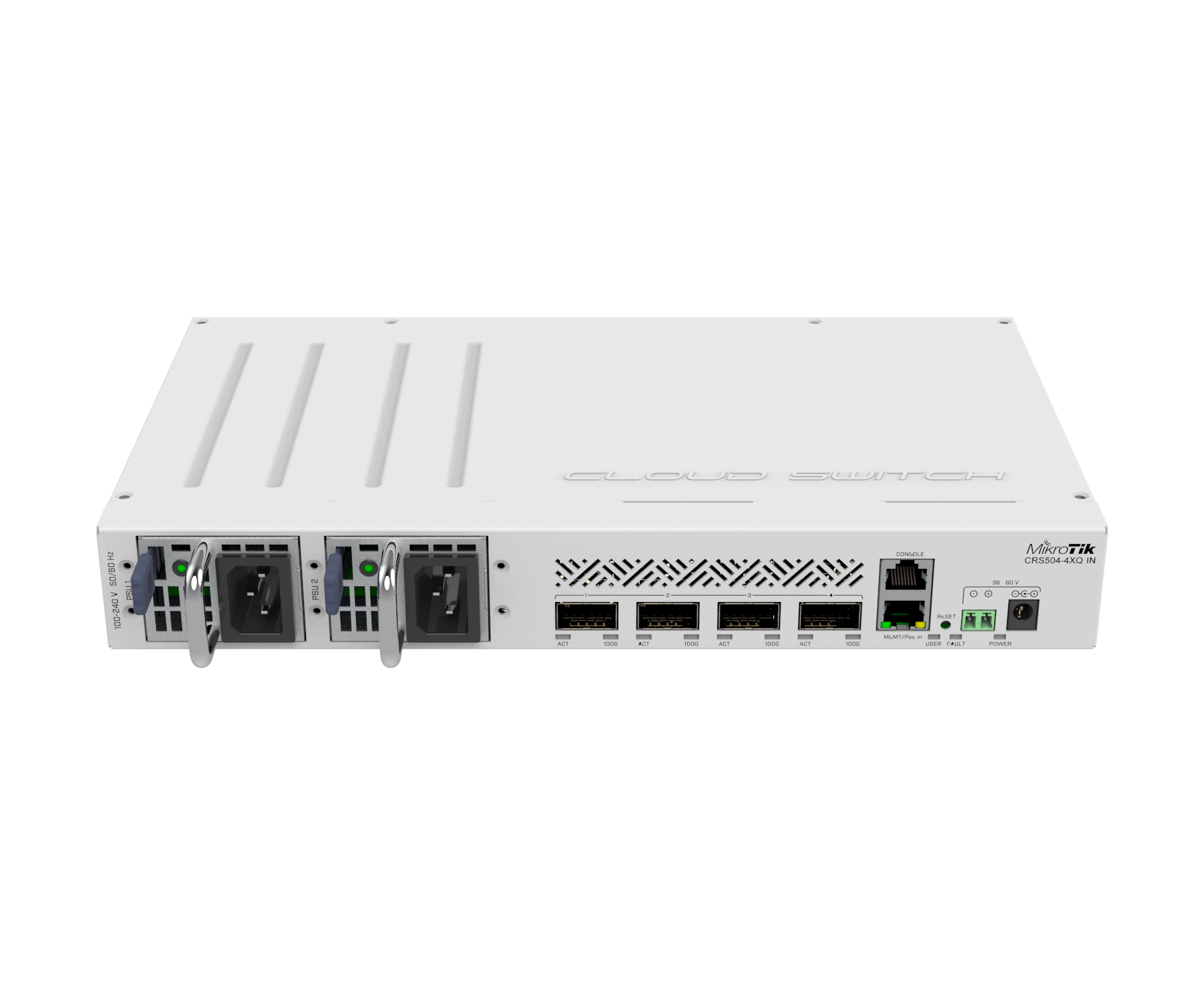

MikroTik CRS504-4XQ-IN, 650MHz, 64MB, 4x100G QSFP28, 1xEthernet, Dual PSU, L5
Κωδικός Cableworks: 1002.389

BrandMikrotik MPNCRS504-4XQ-IN ΕΓΓΥΗΣΗ24 μήνες

€900.00

χωρίς ΦΠΑ €725.81

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 1,422 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

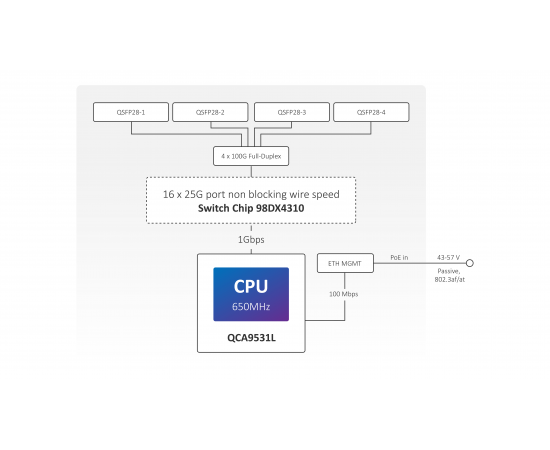

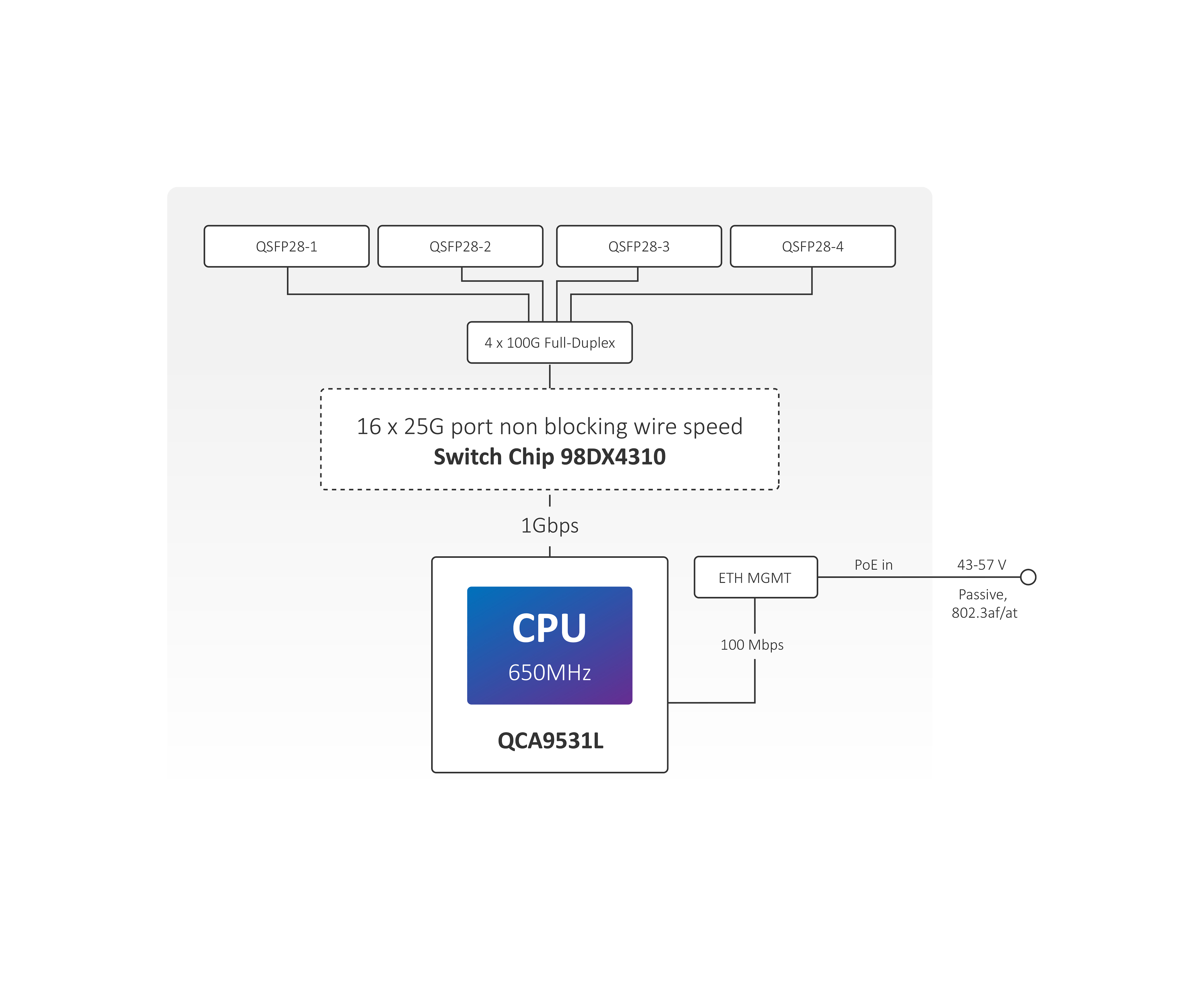

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

Obviously, there is an Ethernet port for management purposes as well.

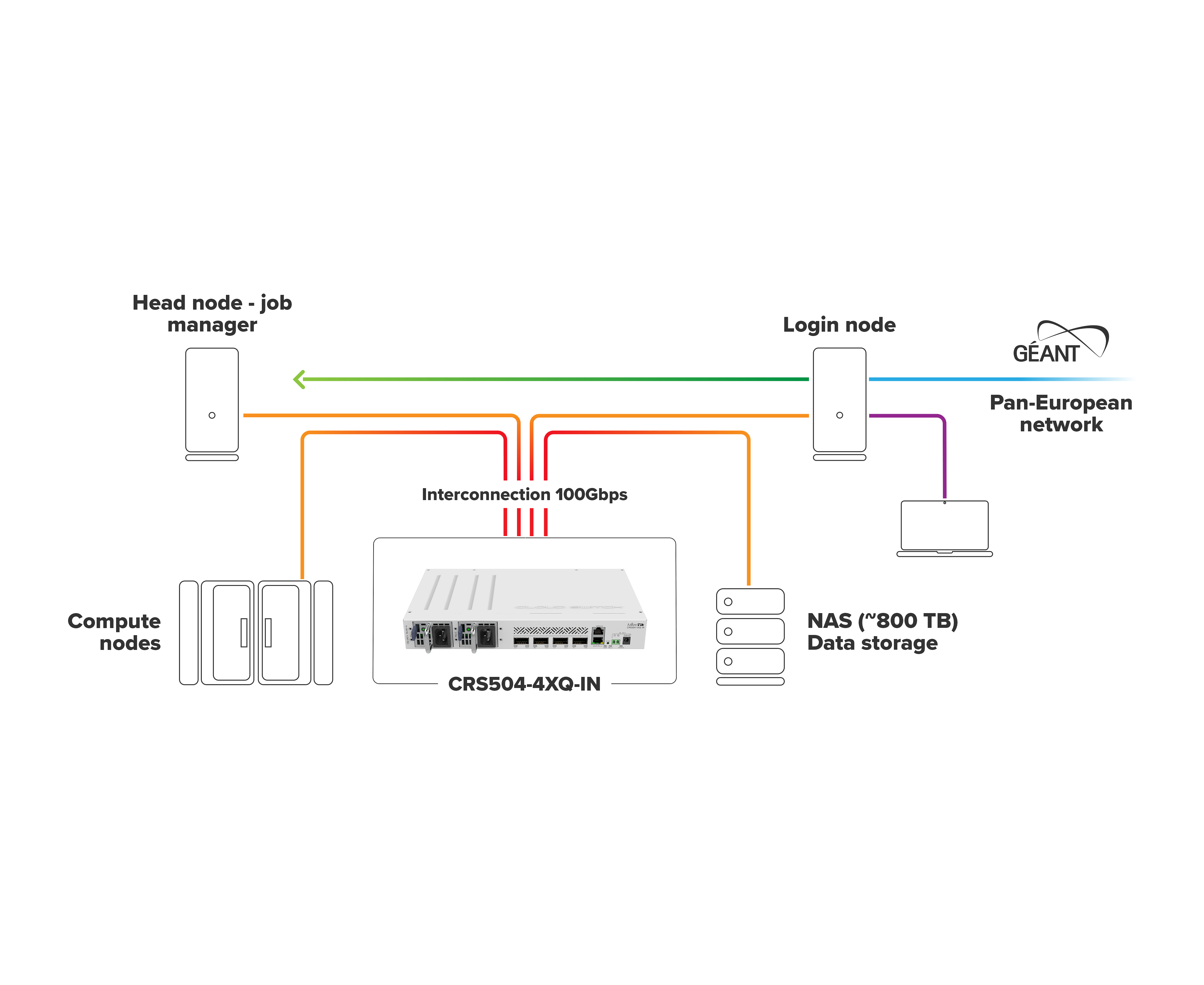

We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

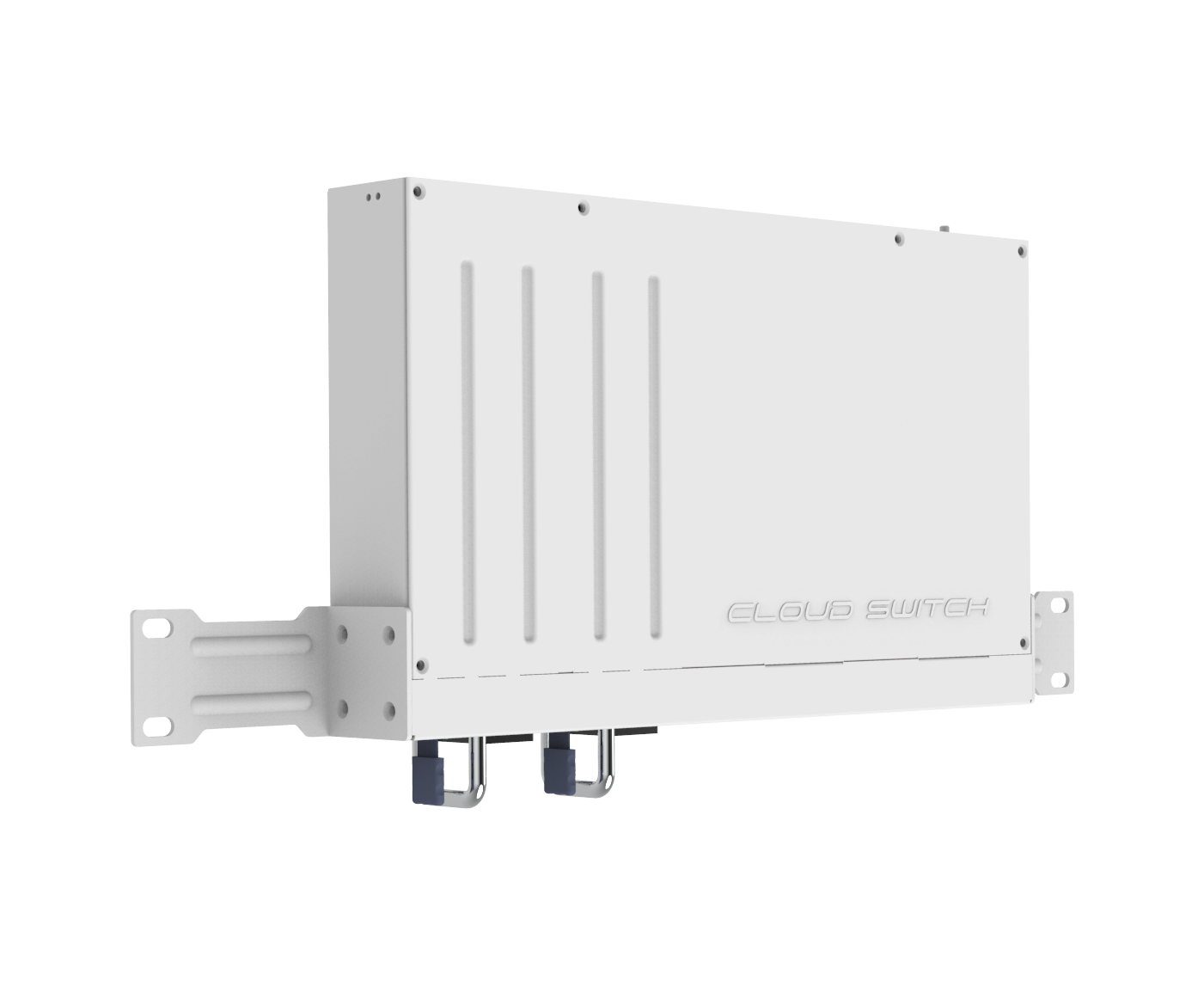

With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.

Specifications

Details
Product code	CRS504-4XQ-IN
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	98DX4310
Dimensions	320 x 185 x 44 mm
RouterOS license	5
Operating System	RouterOS (v7 only)
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$799.00

Powering

Details
Number of AC inputs	2
AC input range	100-240
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	36-57 V
2-pin terminal input Voltage	36-57 V
Frequency (Hz)	47-63
Max power consumption	41 W
Max power consumption without attachments	25 W

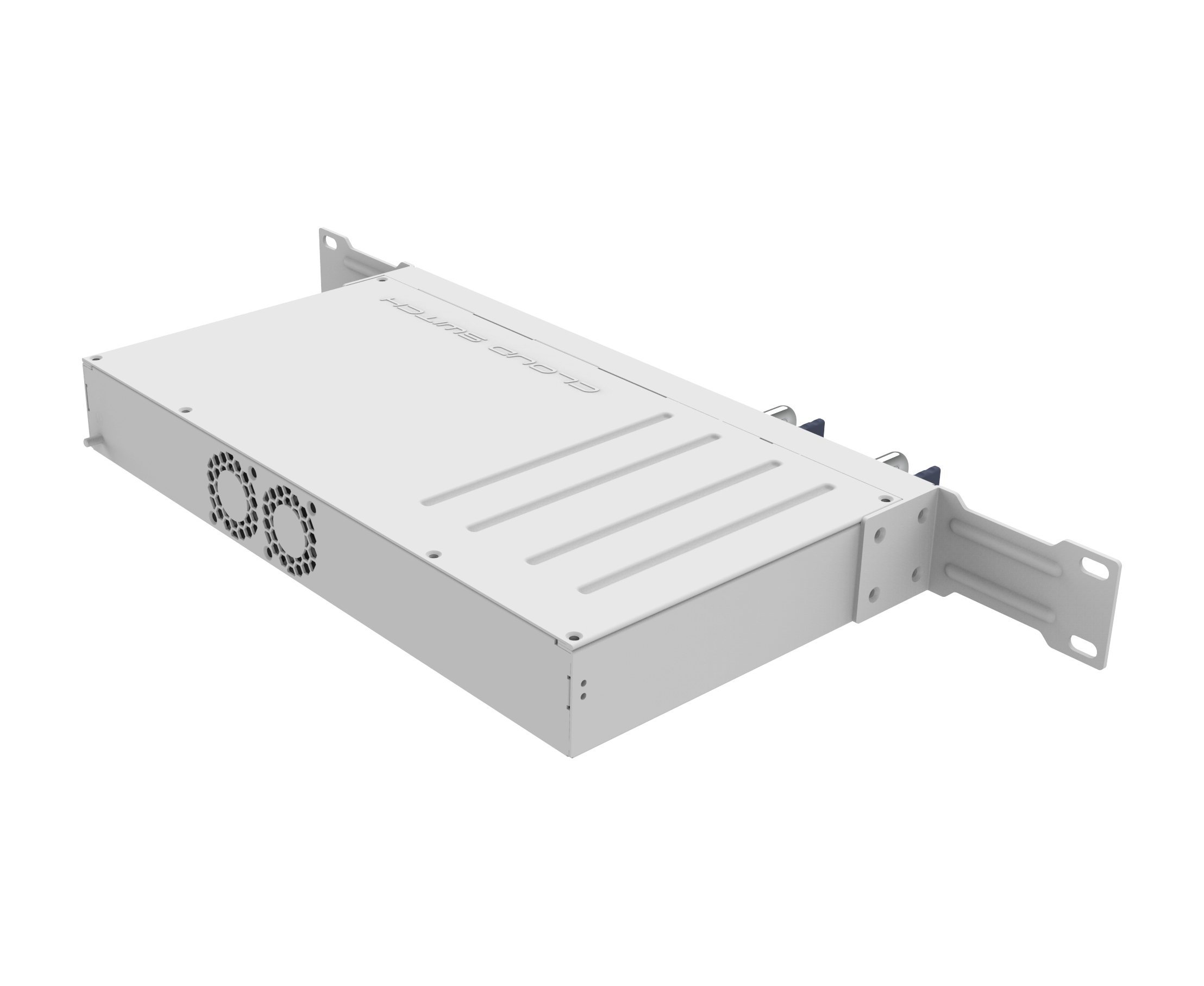

Cooling type	2 fans
PoE in	802.3 bt
PoE in input Voltage	43-57 V
