MikroTik CRS317-1G-16S+RM, 800MHz, 1GB, 1xGigabit, 16xSFP+, Dual PSU, L6
Κωδικός Cableworks: 1002.168

BrandMikrotik MPNCRS317-1G-16S+RM ΕΓΓΥΗΣΗ24 μήνες Managed / UnmanagedManaged Port Speed10Gbps Rackmount SFP+

€545.00

χωρίς ΦΠΑ €439.52

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 375 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

CRS317-1G-16S+RM

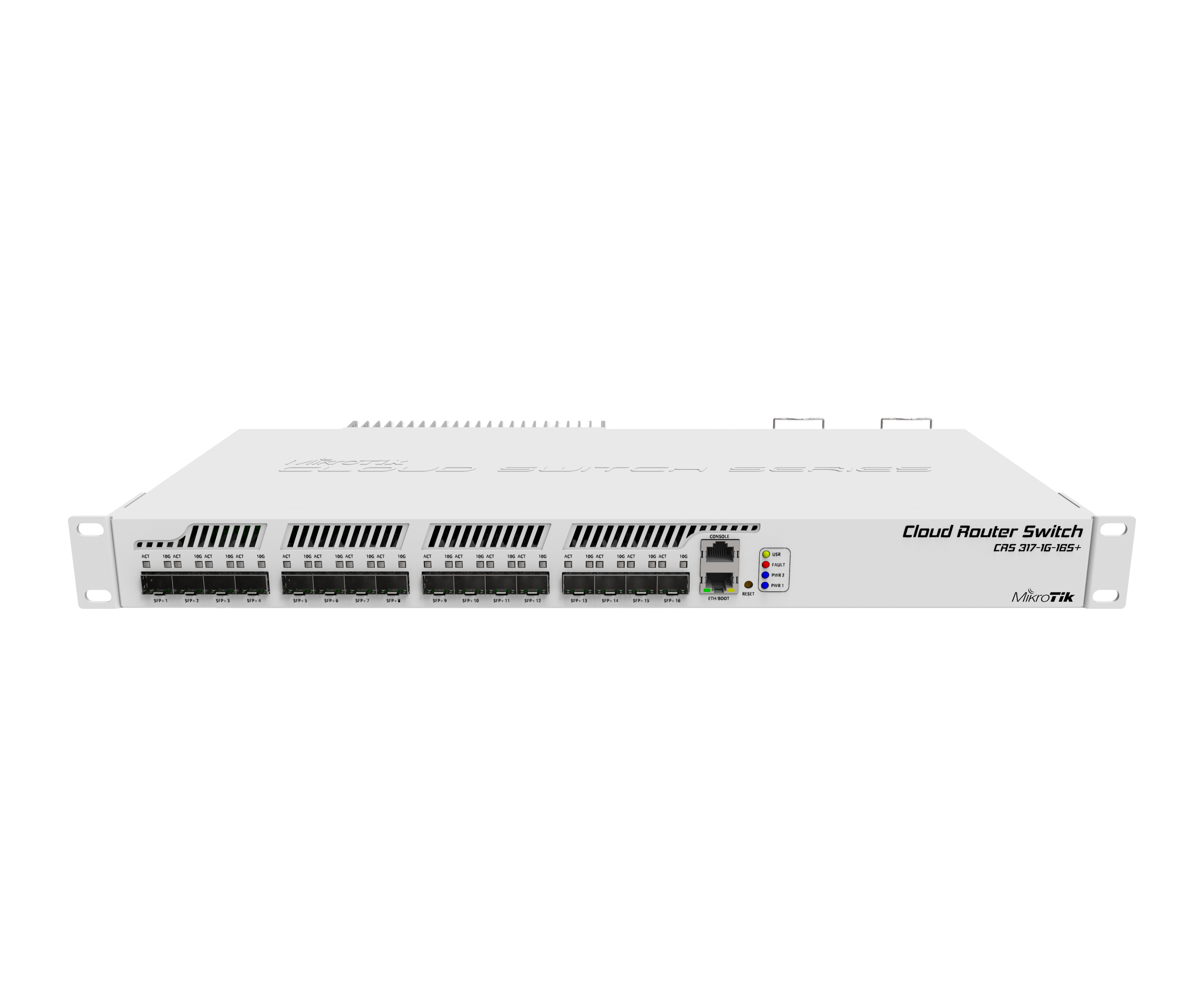

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

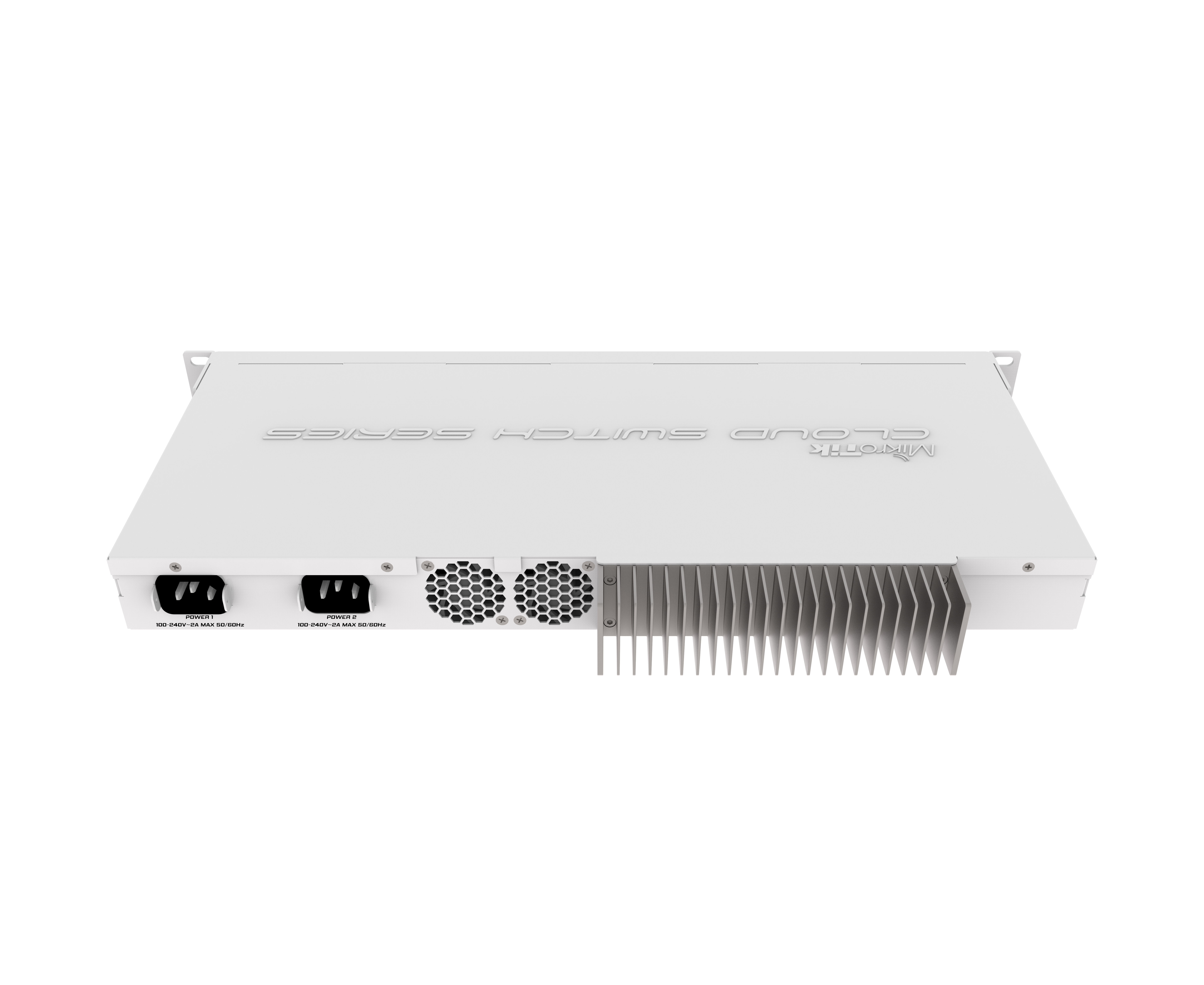

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.

Product specifications

Details
Product code	CRS317-1G-16S+RM
10/100/1000 Ethernet ports	1
CPU	98DX8216B0-BRR4C000
CPU Threads count	2
CPU core count	2
CPU nominal frequency	800 MHz
CPU temperature monitor	Yes
Dimensions	443 x 224 x 44 mm
License level	6
Max Power consumption	42W
Operating System	RouterOS or SwitchOS
SFP+ ports	16
Serial port	RJ45
Size of RAM	1 GB
Storage size	16 MB
Storage type	FLASH
Supported input voltage	24 V - 24 V
Tested ambient temperature	-20 to 60° C

Switching results

CRS317-1G-16S+RM
Mode	Configuration	64 byte		512 byte		1518 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	239,583.3	122,666.7	37,828.9	154,947.4	13,085.2	158,906.4
Switching	Non blocking Layer 2 capacity	239,583.3	245,333.3	37,828.9	309,894.7	13,085.2	317,812.7
Switching	Non blocking Layer 1 throughput	239,583.3	161,000.0	37,828.9	161,000.0	13,085.2	161,000.0
Switching	Non blocking Layer 1 capacity	239,583.3	322,000.0	37,828.9	322,000.0	13,085.2	322,000.0

Ethernet test results

CRS317-1G-16S+RM		98DX8216B0 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	268.3	3258.2	361.2	1479.5	355.2	181.9
Bridging	25 bridge filter rules	98.4	1195.0	98.6	403.9	98	50.2
Routing	none (fast path)	254.4	3089.4	309.8	1268.9	315.4	161.5
Routing	25 simple queues	104.6	1270.3	104.4	427.6	104.6	53.6
Routing	25 ip filter rules	104.6	1270.3	103.4	423.5	103.9	53.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
