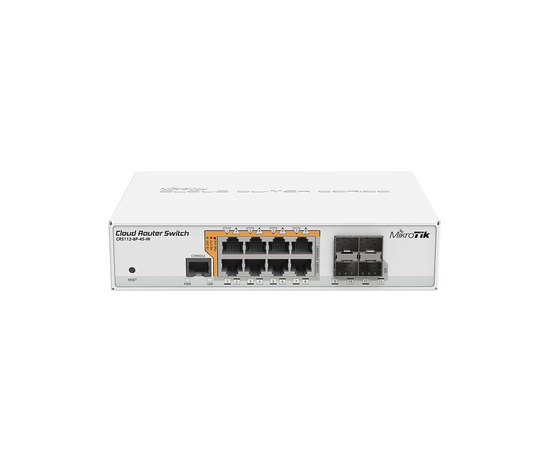

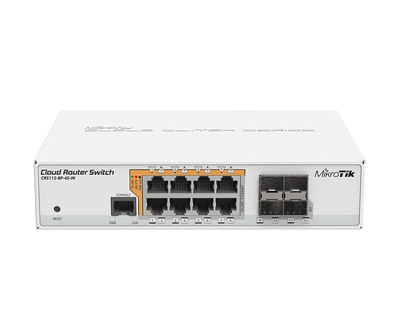

MikroTik CRS112-8P-4S-IN, 400MHz, 128MB, 8xGigabit, 4xSFP, PoE output for 8 ports, L5
Κωδικός Cableworks: 1002.140

BrandMikrotik MPNCRS112-8P-4S-IN ΕΓΓΥΗΣΗ24 μήνες Lan Ports8 Managed / UnmanagedManaged Port SpeedGigabit Ethernet (1Gbps) Rackmount PoE Out Ports8 SFP

€230.00

χωρίς ΦΠΑ €185.48

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 437 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Specifications

Details
Product code	CRS112-8P-4S-IN
Architecture	MIPSBE
CPU	QCA8511
CPU core count	1
CPU nominal frequency	400 MHz
License level	5
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH

Powering

Details
Max Power consumption	10W
PoE out	802.3af/at
Number of DC inputs	2 (DC jack)
DC jack input Voltage	18 - 57 V

Ethernet

Details
10/100/1000 Ethernet ports	8

Fiber

Details
SFP ports	4

Peripherals

Details
Serial port	RJ45

Other

Details
PCB temperature monitor	Yes

Test results

Switching results

CRS112-8P-4S-IN
Mode	Configuration	64 byte		512 byte		1518 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	17,857.1	9,142.9	2,819.5	11,548.9	975.3	11,844.0
Switching	Non blocking Layer 2 capacity	17,857.1	18,285.7	2,819.5	23,097.7	975.3	23,687.9
Switching	Non blocking Layer 1 throughput	17,857.1	12,000.0	2,819.5	12,000.0	975.3	12,000.0
Switching	Non blocking Layer 1 capacity	17,857.1	24,000.0	2,819.5	24,000.0	975.3	24,000.0

Ethernet test results

CRS112-8P-4S-IN		QCA8511 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	48.0	582.9	73.5	301.1	78.0	39.9
Bridging	25 bridge filter rules	26.1	317.0	28.6	117.1	29.6	15.2
Routing	none	46.5	564.7	65.7	269.1	71.1	36.4
Routing	25 simple queues	14.5	176.1	16.1	65.9	16.8	8.6
Routing	25 ip filter rules	7.8	94.7	8.0	32.8	8.3	4.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
