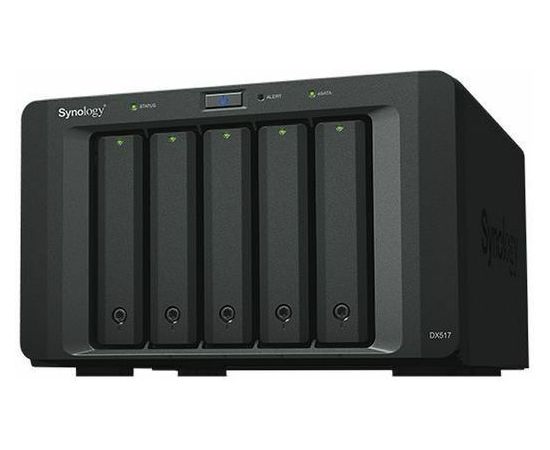

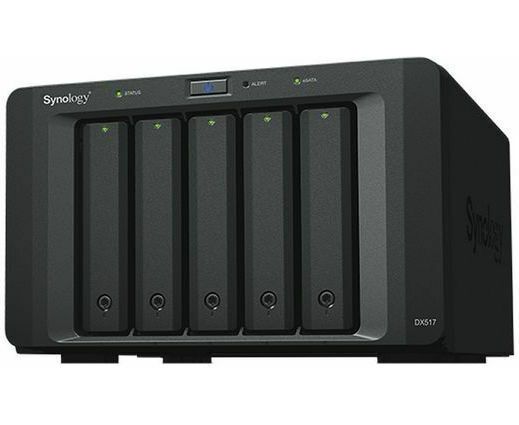

Synology Expansion Unit DX517, 5xDrives, up to 80TB Total, 1xeSATA
Κωδικός Cableworks: 1080.154

BrandSYNOLOGY MPNDX517

€668.05

χωρίς ΦΠΑ €538.75

Μη Διαθέσιμο

Ειδοποίηση όταν το προϊόν είναι ξανά διαθέσιμο

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Κατεβάστε το - 789 Kb

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Hardware Specifications
Applied Models	Supports creating volumes across different units	23 series:DS923+, DS723+ 22 series:DS1522+ 21 series:DS1821+, DS1621xs+, DS1621+, DVA3221 20 series:DS1520+, DS920+, DS720+ 18 series:NVR1218
	Notes	For more information on the compatibility of each expansion unit, please refer to this article. Please upgrade to DSM 6.2.1-23824-5 or later version before using it with 15 and 16 series models (excluding DS1515, DS716+, and DS716+II). To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage	Drive Bays	5
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Maximum Internal Raw Capacity	80 TB (16 TB drive x 5) (Capacity may vary by RAID types)
	Hot Swappable Drive*
	RAID Management through Synology DSM
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports	eSATA Port	1
Appearance	Size (Height x Width x Depth)	157 mm x 248 mm x 233 mm
	Weight	3.91 kg
Power	Power Recovery	Synchronized with the Synology DiskStation
	Power Supply Unit / Adapter	200 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	29.9 W (Access) 2.4 W (HDD Hibernation)
	British Thermal Unit	102.02 BTU/hr (Access) 8.19 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature	Operating Temperature	5°C to 40°C (40°F to 104°F)
	Storage Temperature	-10°C to 70°C (15°F to 155°F)
	Relative Humidity	5% to 95% RH

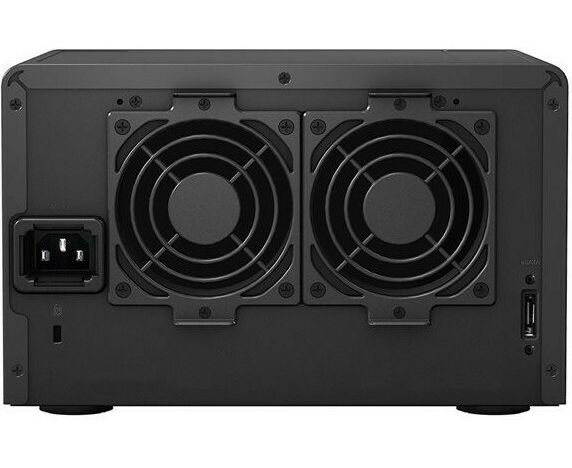

Others	System Fan	80 mm x 80 mm x 2 pcs
	Easy Replacement System Fan
	Noise Level*	21.5 dB(A)
	Notes	Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification	FCC CE BSMI
Warranty	3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Expansion Cable: eSATA X 1 Quick Installation Guide X 1
Optional Accessories	3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210
