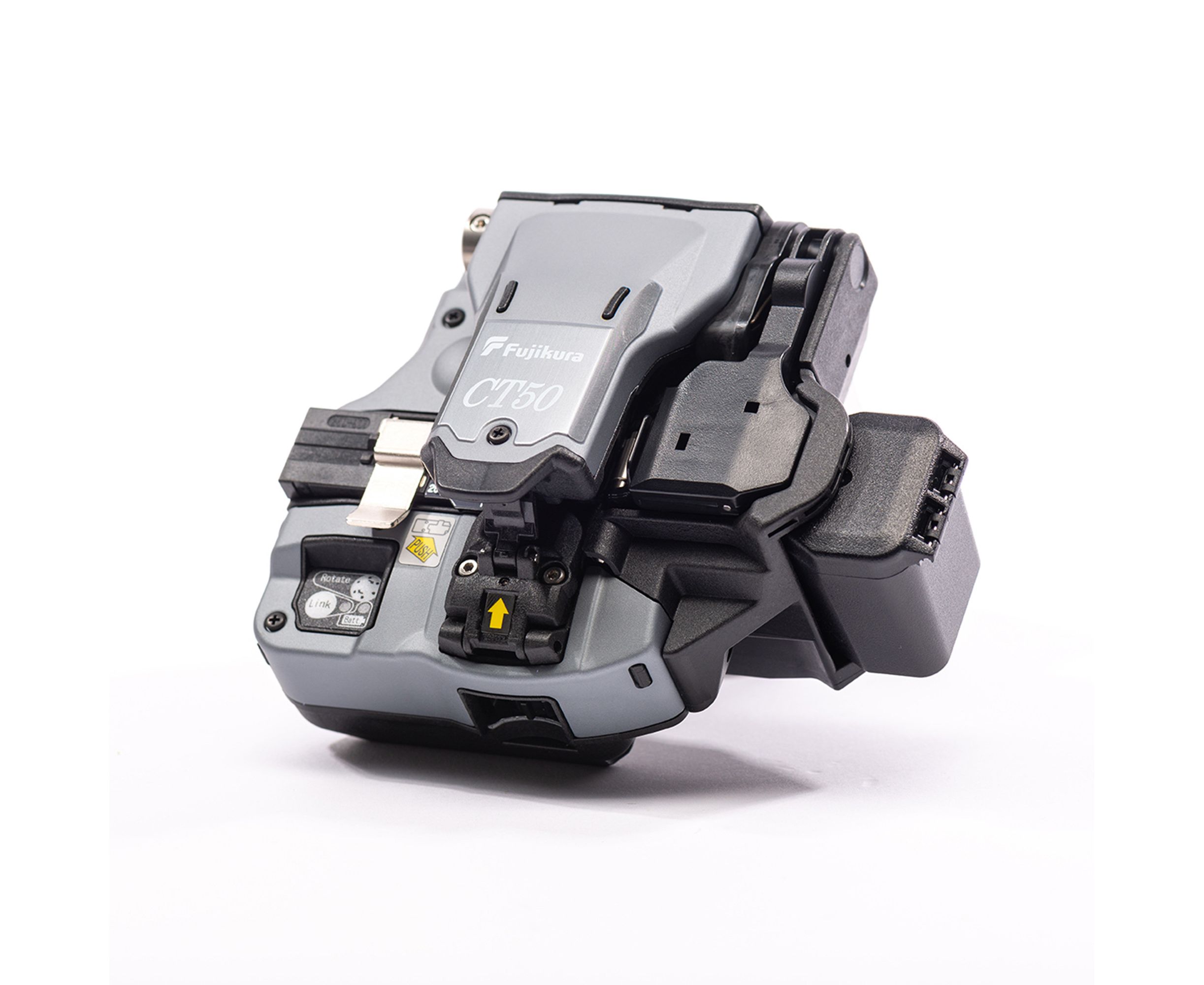

Fujikura CT-50 Fiber Cleaver
Κωδικός Cableworks: 1320.001

BrandFUJIKURA MPNCT-50
744.00
χωρίς ΦΠΑ 600.00
Μη Διαθέσιμο
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Optical Fiber Cleaver
CT50

The CT50 offers enhanced drop impact resistance compared to existing cleavers and allows workers to replace the cleaver blade, providing customers with a drastic reduction in handling time and maintenance costs. The CT50 changes the position of the cleaving blade automatically and in response to the cleave quality of the optical fibers as seen by the fusion splicer. The fusion splicer will then rotate the blade once it deems the quality is poor. In addition, the CT50 completes cleaving of the fiber and scrap collection in the same step.

Brand: Fujikura
Origin: Japan
Model: CT50

Features:

  • Automatic cleaving blade rotation via wireless communication
  • User replaceable fiber clamps and cleaving blade
  • 60,000 fibers blade life(3 height x 16 positions)
  • Wide lever opening angle allows easy fiber placement
  • Single-action operation including fiber scrap collection
  • The CT50 offers enhanced drop impact resistance compared to other existing cleavers

Applications:

  • Optical components
  • Sensing system
  • Medical equipments
  • Research and others

Specifications:

Fiber Type Silicon fiber, single mode fiber, multi-mode fiber
Fiber Count 1 fiber
Fiber Placement Fiber holder AD-10
Applicable Coating 0.25 to 0.9mm
Cleave Length 10mm (from the edge of FH: 13mm)
Cleave Angle 0.5 degrees (typical)
Blade Life 60,000 fiber cleaves (1,250 fibers x 16 postions x 3 heights )
Wirelss Interface Bluetooth 4.1 LE
Battery AAA (LR03) dry battery: 2pc
Size 120(W) x 95(D) x 45(H)mm
Weight 320g
Operating Environment 0 to 95% RH and -10 to 50℃ non-condensing
Storage Environment 0 to 95% RH and -40 to 80℃ non-condensing
