1m Fibertechnic SingleMode Fiber Optic with 24xFibers 9/125 G652D, 80m Aerial Span, Aramid
Κωδικός Cableworks: 1180.382

BrandFibertechnic MPN7999 Fiber ModeSinglemode ConnectorsNo Connectors ΜήκοςPer Meter Diameter9 / 125 Indoor / OutdoorOutdoor

€1.61

χωρίς ΦΠΑ €1.30

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

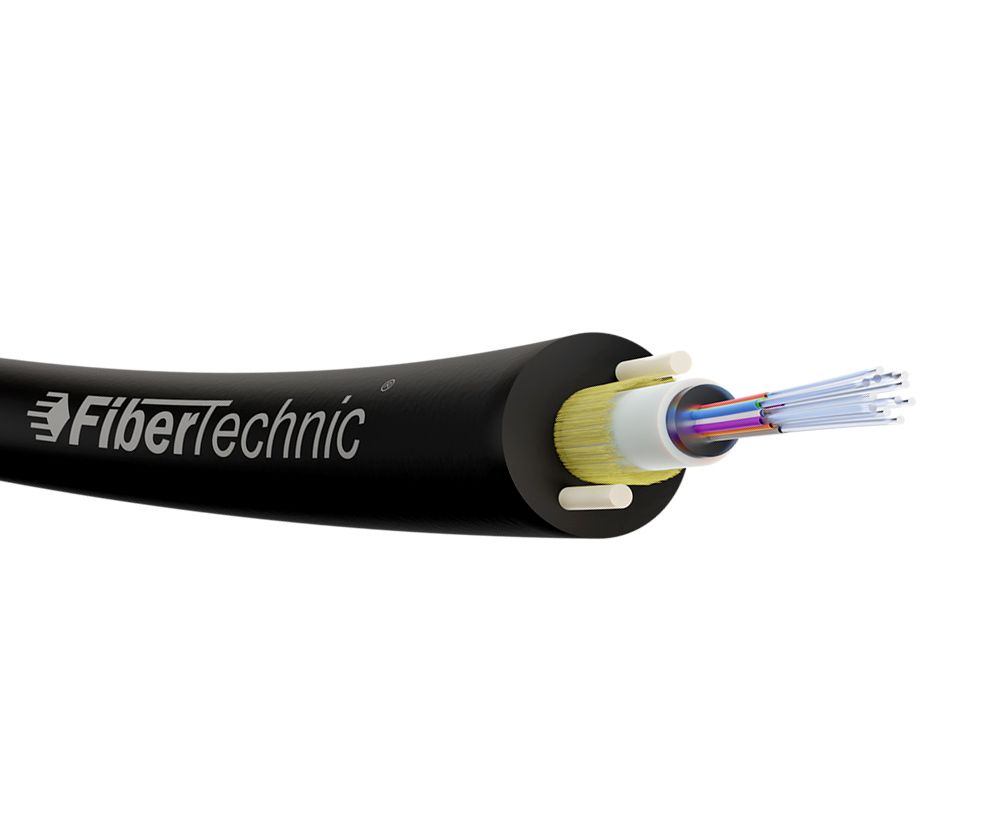

Fibertechnic optic cable Aero Z-XOTKtcdDb 24J Corning SMF-28 Ultra fiber, single tube, universal. The cable is designed for aerial installation on a span of 80m and for installation in telecommunication ducts. The cable is strengthened with ARP fiber glass rods.

Fibertechnic Z-XOTKtcdD fiber cable is a one tube light construction (~30kg/km), large flexibility and durability against dragging despite small diameter (~6.0mm), security gel in the fiber tube and construction blocking from water (WB), HDPE coat, UV resistant shell, temperature range between -40° and 70°C, strengthened with two ARP yarns (0.9mm) and aramid yarns, fully dielectric; equivalent to Z-XOTKtcdD. Maximum installation tension 1200N.

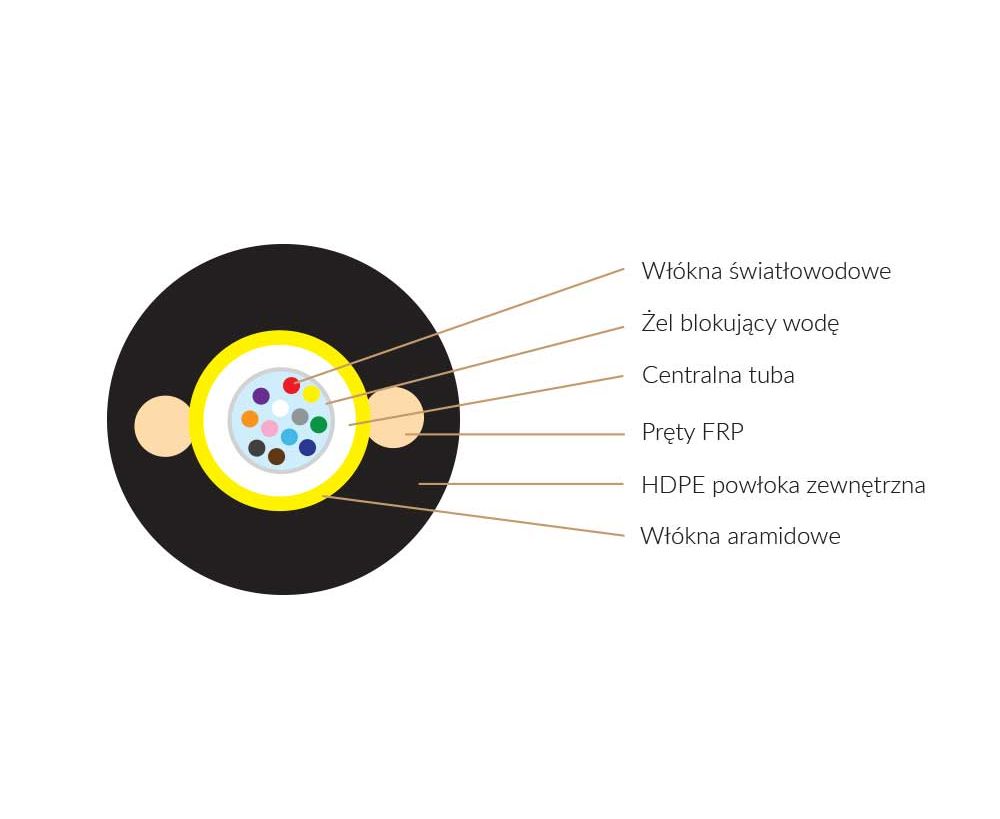

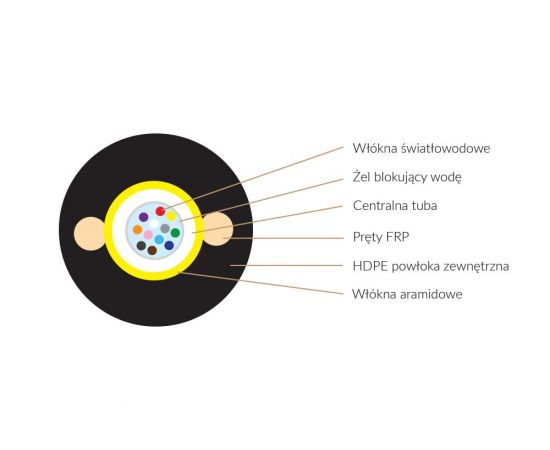

All Corning SMF-28 Ultra fiber ITU-T G652D fibers are color-coded accordingly to IEC 60304 standard. The tube consists of up to 24 optical fibers with hydrofobic gel which secures the fibers from moisture and vibrations. The center of the cable is protected against water intrusion through moisture wicking fibers. The cable is strengthened with aramid yarns. Additionaly the cable is enhanced with 2 ARP rods embedded in the ARP coat. The yarns allow to take of the coat of the cable easily (ripcords). Cables are meant for aerial installation on span to 80m and also in primary and secondary tele-technical canalisation by pneumatic (cable blowing) and mechanical (cable pulling methods).

Cables are manufactured in Europe by using fiber of an American producer Corning. Service life 25 years! Manufacturer guarantee 4 years!

Equivalent
Total amount of fibers
Type of fibers
No. of tubes in cable
No. of active tubes
No. of fiber in tube
Total diameter
Tube diameter
Diameter of central element
Tension strength (installation)
Tension strength (operation)
Temp. range installation
Exterior coat
Supporting element
Minimum bending radius
Weight

Z-XOTKtcdD
24J
G652.D Corning
1
1
24
6,0 mm
2 mm
0,9 mm
1200N
800N
-40 ~ +70 °C
HDPE
ARP
110 mm
30 kg/km
