Fibertechnic Outdoor Rack Cabinet 5U SHM-750/595/322 IP55 + Βάση για Ιστό
Κωδικός Cableworks: 1180.008

BrandFibertechnic MPN4440

€280.00

χωρίς ΦΠΑ €225.81

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

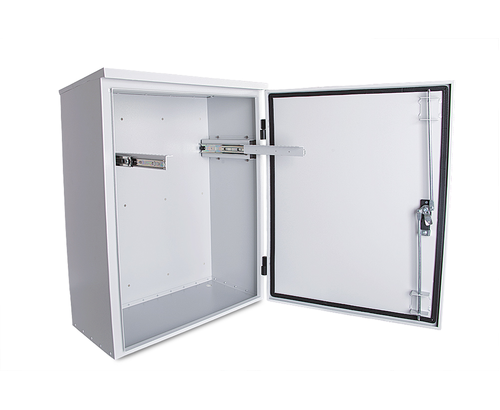

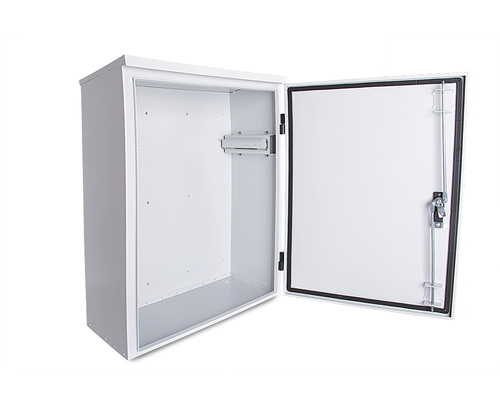

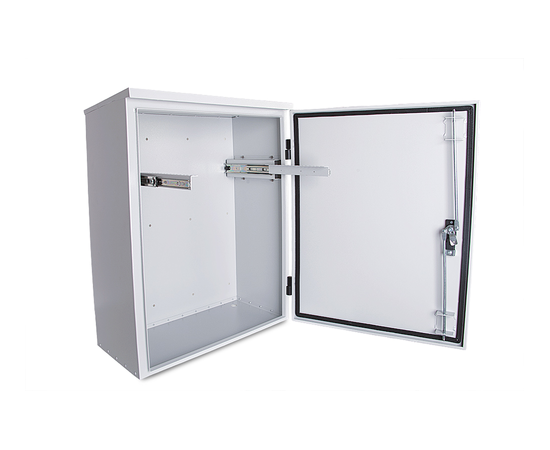

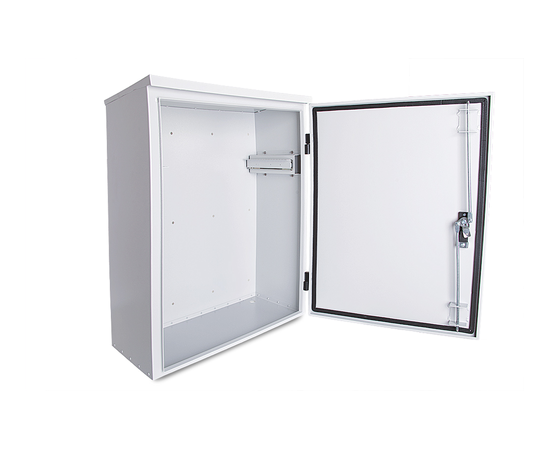

Outdoor Aluminium Hermetic Cabinet 5U SHM-750/592/322 IP55 dedicated to mount on the mast (with an additional three-point holder U-SHM, which allows to mount the cabinet on a mast with fi 35-60mm )

Hermetic cabinet is made of aluminum PA11 with the following features:

high corrosion resistance also in sea and industry environment
high tensile strength
high fatigue resistance
almost three times lower weight than made of the same thickness steel S235

The aluminum is powder coated in high temperature in the color RAL7035.

Designed to:

be mounted on pole (by using a dedicated two point bracket U-SHM) or to the wall (surface mounting)
be used when constructing electric, telecommunication and fiber optic installations, in order to:

protect devices from harmful influence of external factors (water, dust, oil ect.) and unauthorized access of third parties and destruction by them,
arrange the devices and provide appropriate working conditions for the devices

Standard equipment:

profiled one leaf door
- opened on right side to 180 degrees. Opened with a brass handle. Locked with a thee point lock.
- to be dismantled without any tools in the position 180 degrees
- protecting the seal from outside interference
polymer seal that :
- has high resistance to ozone, oxidation and acid
- has low deformation level
- working temperature from -29 up to +66 C degrees
two external hinges
RACK rails 19" mounted 54cm from the floor of the cabinet and 20cm from the upper side of the cabinet
12 holes for mounting to the wall blinded with rubber seal to which there is mounted a three-point mast holder
6 holes fi 23mm
1 cable gland PG 16
dedicated three point holder U-SHM, which allows to mount the cabinet to a mast fi 35-50mm) – product ID-4439

The construction of the cabinet provides:

water and dust tightness - protection level IP 55
protection from mechanical impact - protection level IK 10
drainage from the seal thanks to special profiled door leaf (this is especially important when the temperature is below 0C degrees)
easy mounting
easy access to devices mounted inside
electrical continuity thanks to conductive construction parts.

ATTENTION - If there are mounted electrical devices in the cabinet, the cabinet must be grounded. For grounding use a tape or wire minimum fi 6mm2. In order to secure the grounding from self-loosening use a tooth lock washer between the fixture and nut.

Height
Width
Depth
Thickness
Weight
Lock with 2 locking points
Material
Holes to PG16 gland
Gland PG 16
RACK rail
Tightness
Max devices
EAN code

750mm
600mm
300mm
1,5mm
10,10kg
1pcs
aluminium powder coated RAL7035
6pcs
1pcs
sliding
IP 55
5U
5901225203588
